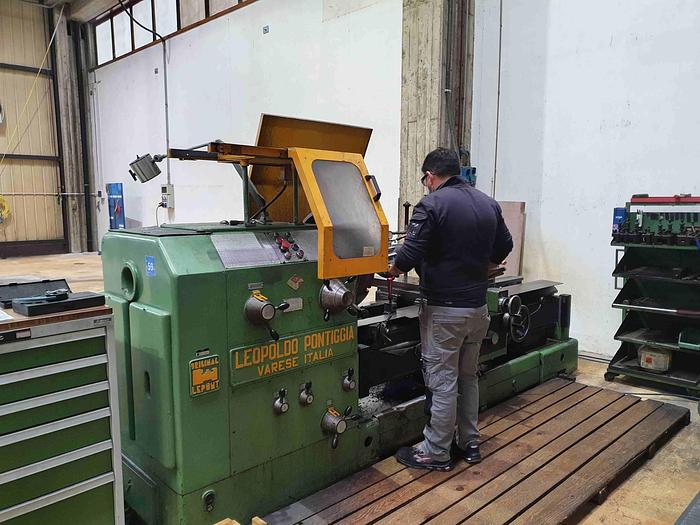

L. PONTIGGIA UA 350 LATHE
No longer available
Technical specifications
| Manufacturer | PONTIGGIA |
| Model | UA 350 |
| Centres height | 350 mm. |
| Centres distance | 1.500 mm. |
| Max. Ø over saddle | 460 mm. |
| Max. Ø over bed | 690 mm. |
| Max. Ø over the gap | 840 mm. |
| Gap lenght | 350 mm. |
| Bed width | 450 mm. |
| Max. weight between centers | 4.000 Kg. |
| Spindle power | 20 Hp. |
| Spindle speeds | N. 24; 9 - 1.800 Rpm. |
| Spindle hole | 76 mm. |
| Tailstock nose | 90 mm. |
| Tailstock nose travel | 200 mm. |
| Total weight | 5.000 Kg. |
Features and Accessories
Complete with:
- n. 1 four jaws table Ø 600 mm.
- n. 1 closed steady
