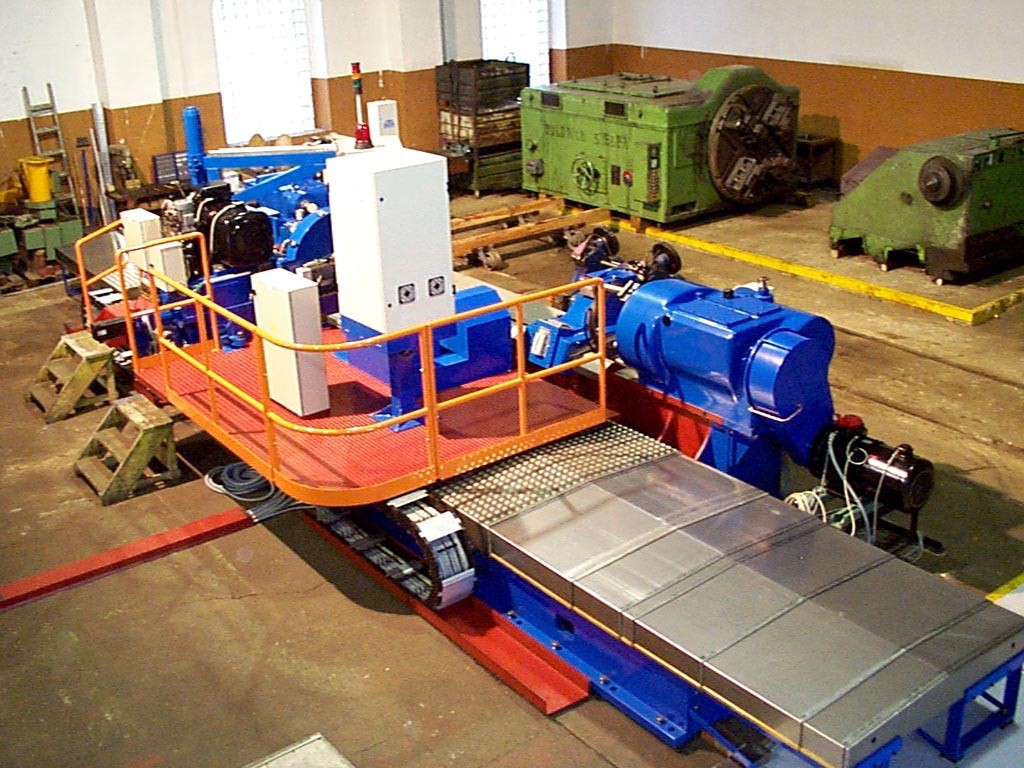

CINCINNATI 36” CNC ROLL GRINDER
No longer available
Technical specifications
| Manufacturer | CINCINNATI |
| Model | 36" CNC |
| Max. working diameter | 972 mm. |
| Max. working lenght | 5.200 mm. |
| Wheel diameter | 915 mm. |
| Wheel motor power | 75 Kw. |
| Wheel width | 102 mm. |
| Max. workpiece weight | 18.000 Kg. |
| Working feeds | 0 ÷ 4.000 mm/min. |
| Workpiece head speeds | 1 ÷ 50 Rpm. |
| Max. swing | 1.020 mm. |
| Total weight | 58 Tons. |
| Cnc | CNC NUM 1060 |
Features and Accessories
Retrofitted in 1996.
Centers height 510 mm. x Centers distance 5.200 mm.
Complete with : - taper grinding and crowning by cnc - n. 1 cnc steady - n. 1 steady - Acta cracks detector
