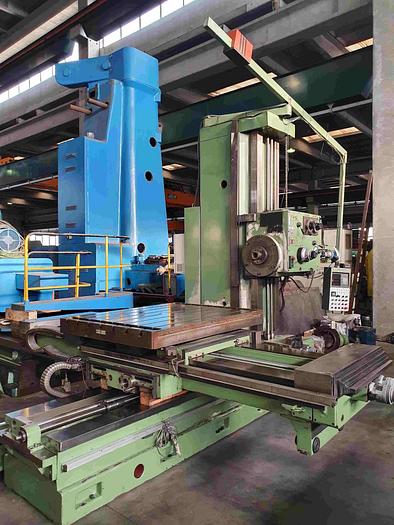

TITAN AFD 105 TABLE TYPE HORIZONTAL BORER
No longer available
Technical specifications
| Manufacturer | TITAN |
| Model | AFD 105 |
| Year | 1993 |
| Spindle | 105 mm. |
| Transversal travel | 2.000 mm. |
| Vertical travel | 1.625 mm. |
| Longitudinal travel | 1.500 mm. |
| Spindle travel | 700 mm. |
| Spindle taper | ISO 50 |

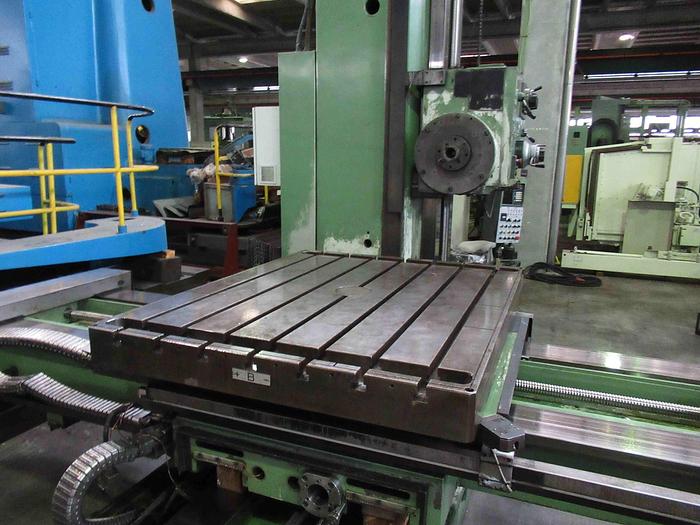

| Table | 1.524 x 1.220 mm. |
| Spindle power | 11 Kw. |
| Spindle speeds | N. 18; 12,5 - 1.180 Rpm. |
| Max. weight on table | 5.000 Kg. |
| Total weight | 16,5 Tons. |
Features and Accessories

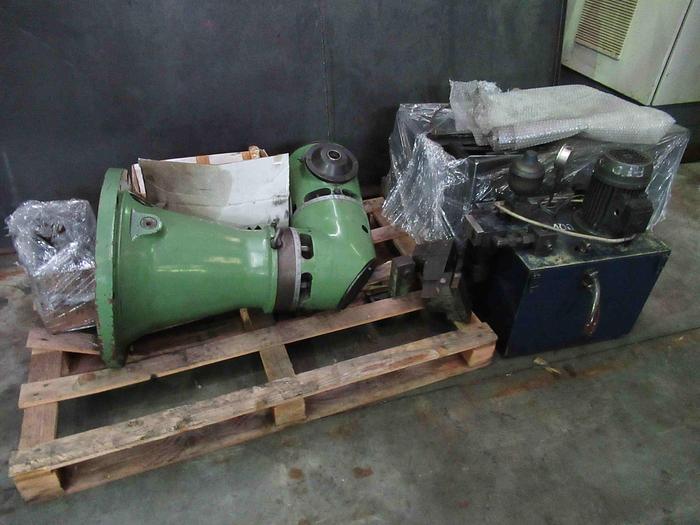

Retrofitted in 2000. Complete with: - birotative milling head - d.r.o. - ballscrews
