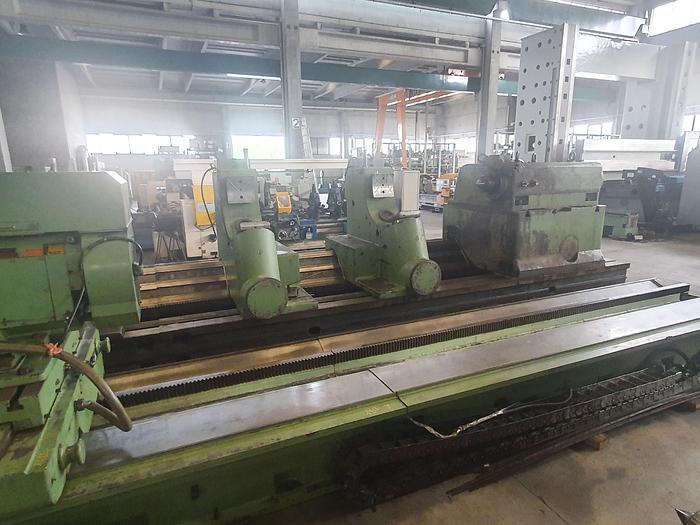

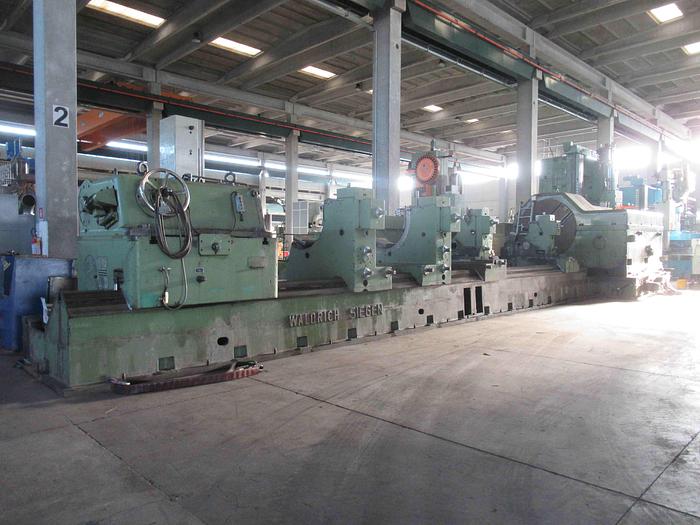

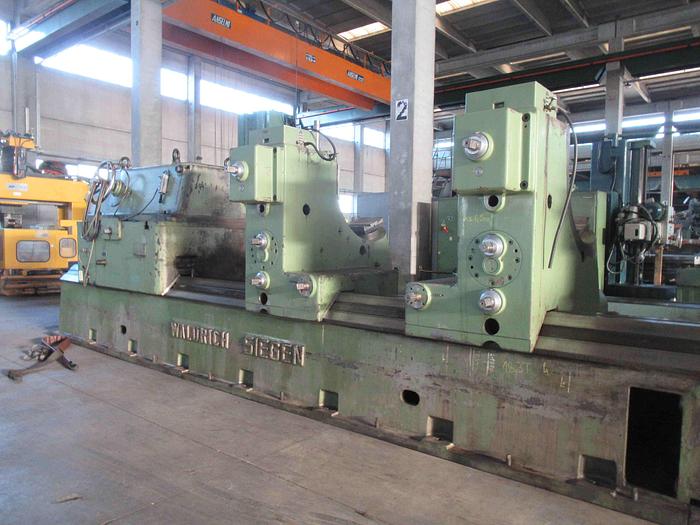

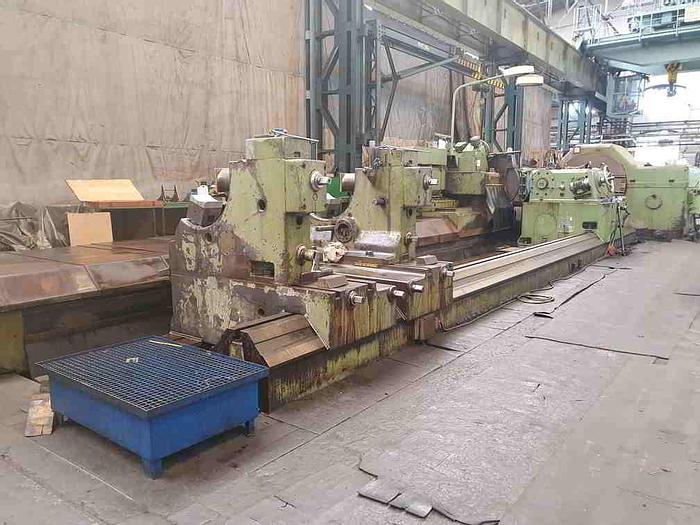

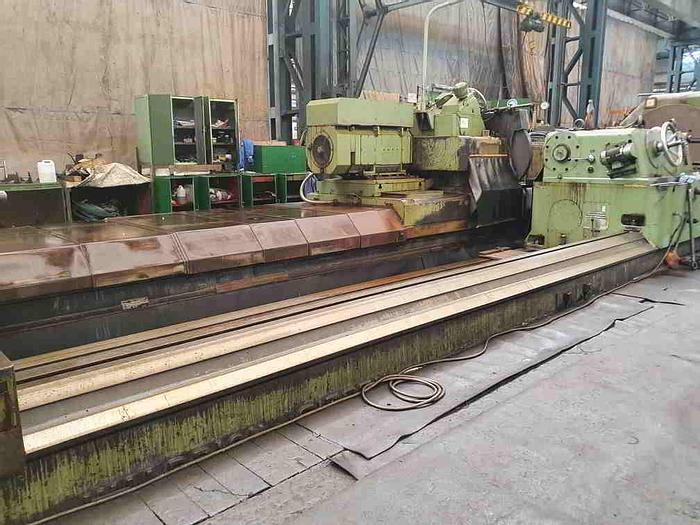

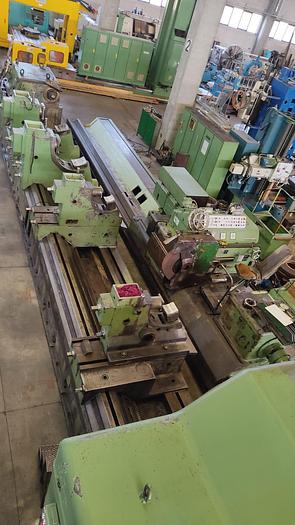

WALDRICH SIEGEN WST 1800x10000 ROLL GRINDER
No longer available
Featured
Technical specifications
| Manufacturer | WALDRICH SIEGEN |
| Model | WST 1800 |
| Max. working diameter | 1.800 mm. |
| Max. working lenght | 10.000 mm. |

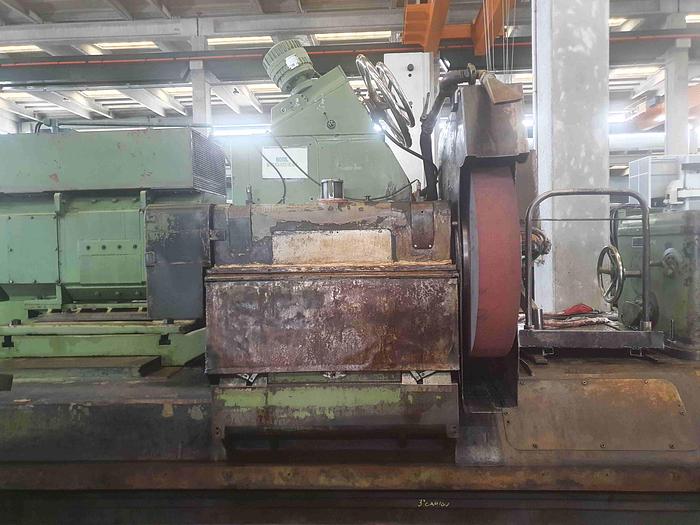

| Wheel diameter | 1.200 mm. |

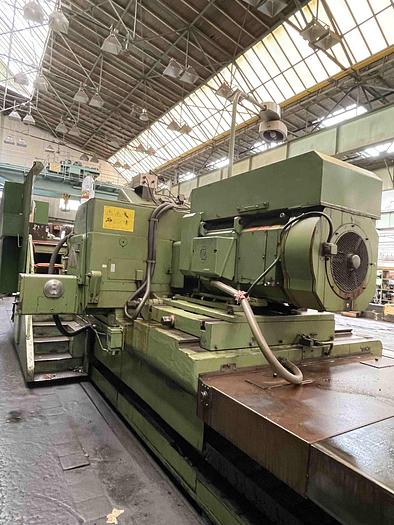

| Wheel motor power | 48 Kw. |
| Wheel speeds | 300 ÷ 1.200 Rpm. |
| Max. workpiece weight | 130 Tons. |

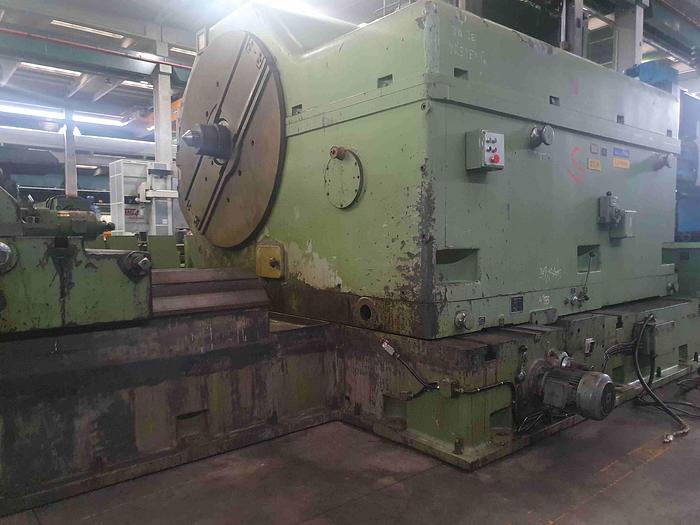

| Workpiece head speeds | 0,8 ÷ 30 Rpm. |
Features and Accessories
Retrofitted in 1982.
Centers height 1.300 mm. x Centers distance 11.000 mm.
Complete with:
- n. 2 open steadies Ø 100 ÷ 650 mm.
- n. 2 open steadies Ø 650 ÷ 900 mm.
- wheels and wheel flanges

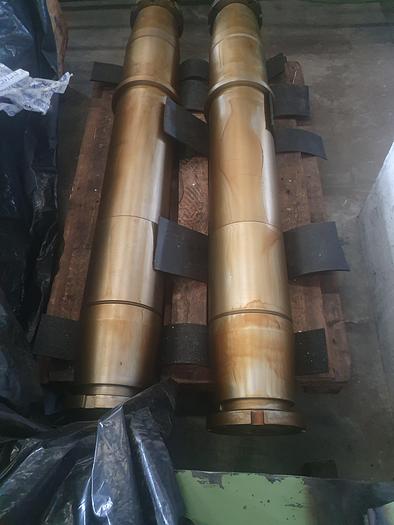

- spare wheel spindles
- crowning
- taper grinding device
- levelling shoes
