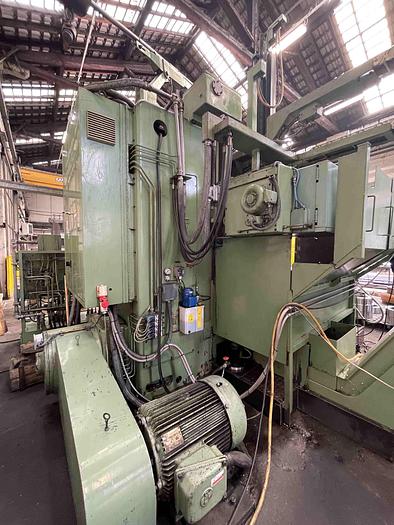

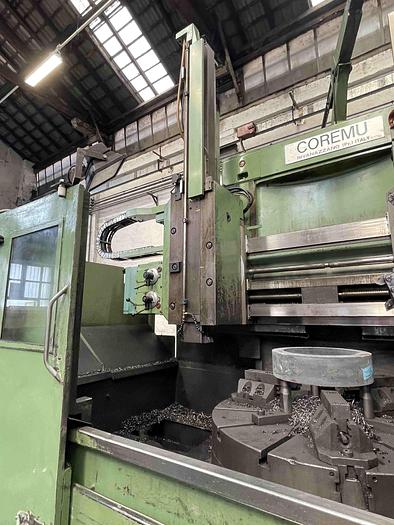

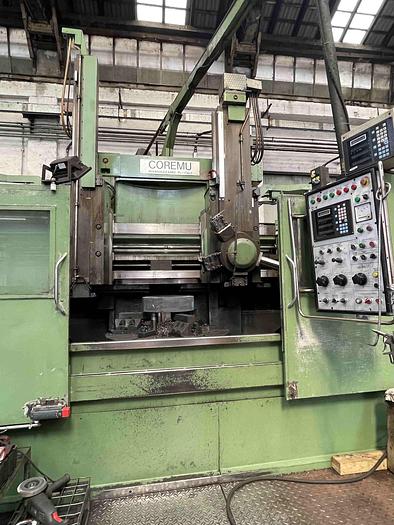

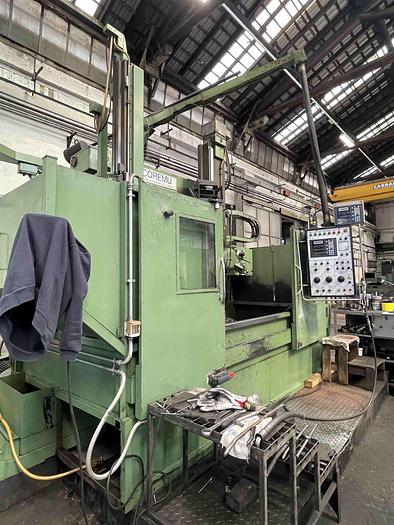

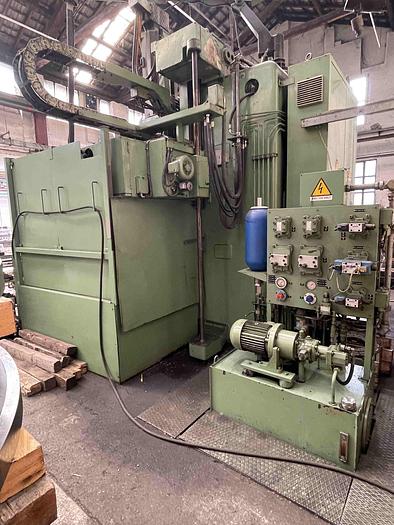

MORANDO VS 12 VERTICAL BORER
No longer available
Technical specifications
| Manufacturer | MORANDO |
| Model | VS 12 |
| Year | 1989 |
| Table Ø | 1.200 mm. |
| Max. working Ø | 1.400 mm. |
| Spindle power | 37 Kw. |
| Max. working height | 1.000 mm. |
| Max. weight on table | 7,5 Tons. |
| Table speeds | N. 16; 4,5 - 252 Rpm. |
| RAM type vertical tool travel | 1.000 mm. |
| Turret type vertical tool travel | 760 mm. |
| Max. swivelling angle | +/- 25° |
| Total weight | 20 Tons. |
Features and Accessories
Complete with:
- n. 1 ram type vertical tool

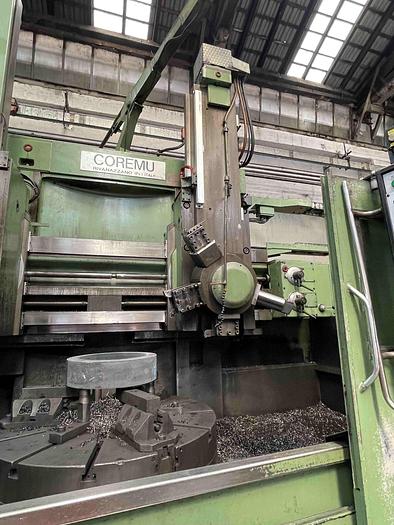

- n. 1 motorised five positions turret vertical tool

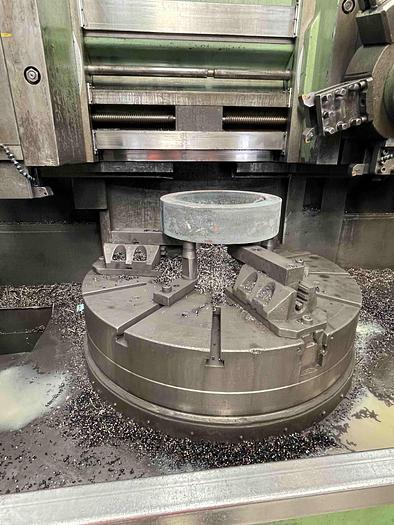

- hydraulic self centering chuck Ø 1.200 mm.

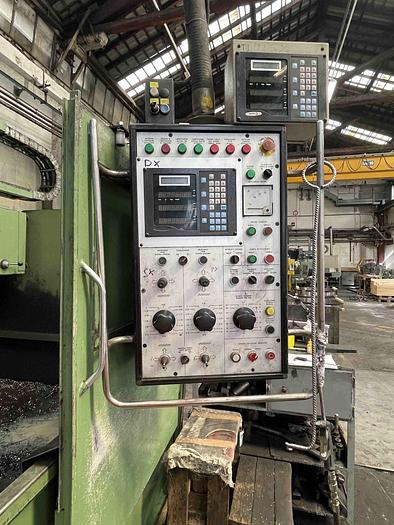

- d.r.o.
- taper turning capacity

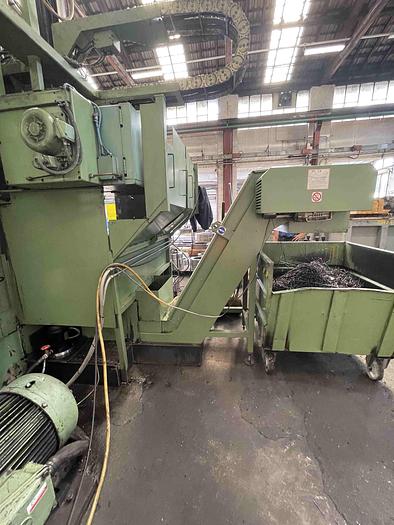

- chipconveyor
