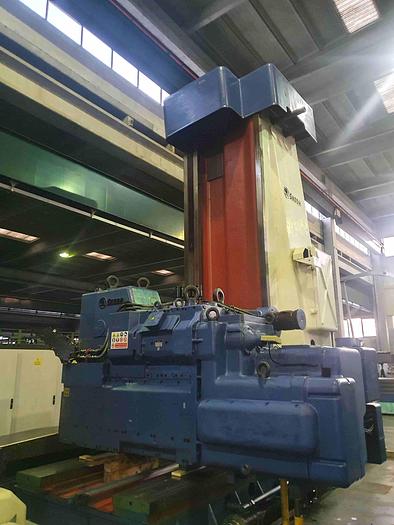

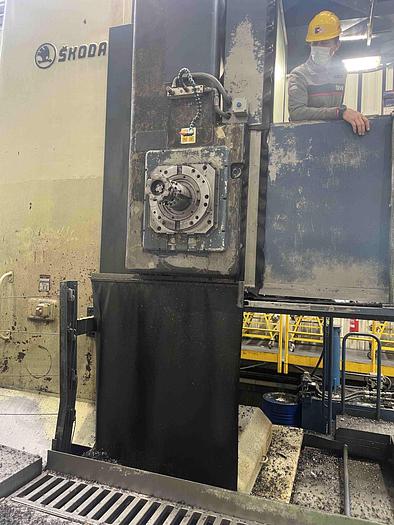

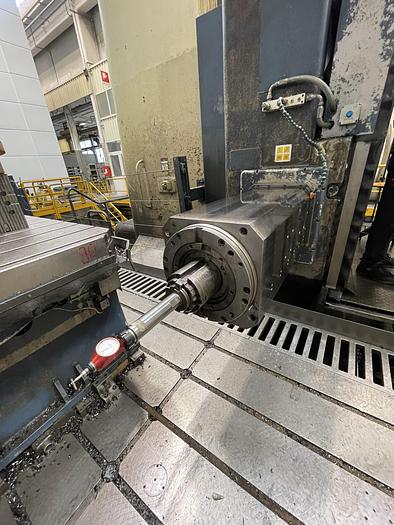

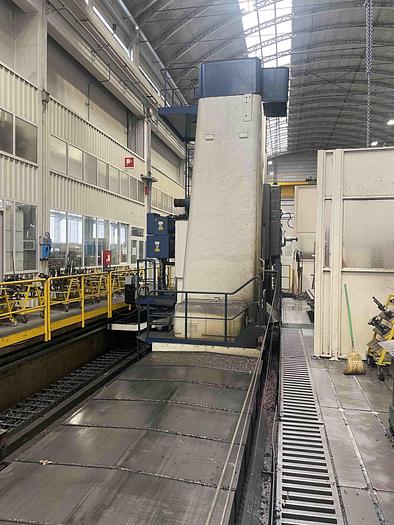

SKODA W 160 HC CNC FLOOR TYPE BORER
No longer available
Featured
Technical specifications
| Manufacturer | SKODA |
| Model | W 160 HC CNC |
| Year | 1991 |
| Spindle | 160 mm. |
| Tranversal travel | 10.500 mm. |
| Vertical travel | 3.000 mm. |
| RAM travel | 1.250 mm. |
| Spindle travel | 1.600 mm. |
| Spindle taper | ISO 50 |
| Spindle motor power | 70 Hp. |
| Spindle speeds | 1 - 1.000 Rpm. |
| RAM section | 450 x 450 |

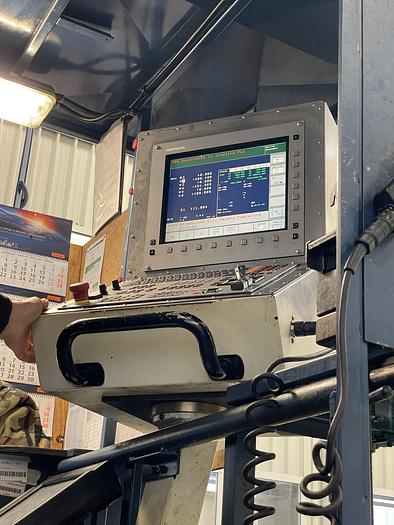

| Cnc | CNC Heidenhain 530 |
Features and Accessories
Retrofitted in 2008.
Complete with:

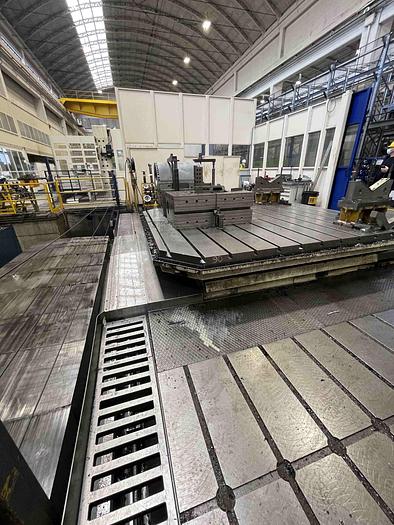

- Skoda S 35 cnc rotary table: 3.150 x 2.800 mm.; capacity 35 tons.; travel 1.250 mm.
- n. 1 vertical milling head
- n. 5 floor plates 4.200x2.500x300 H mm.
- chipconveyor
