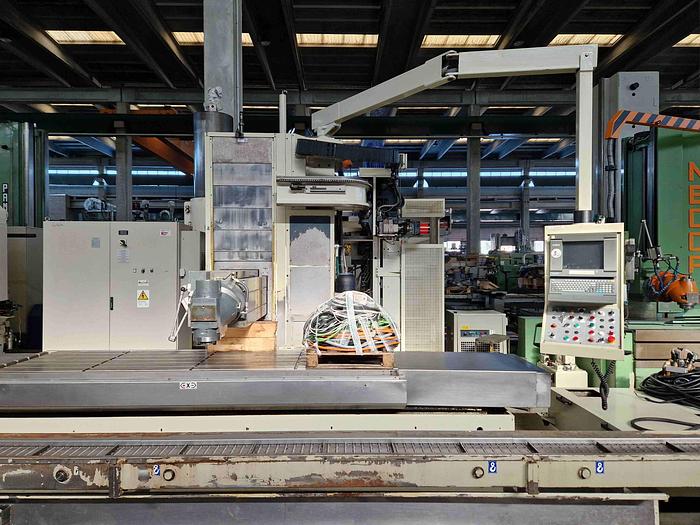

TIGER TFA 5 CNC BED MILLING MACHINE
No longer available
Technical specifications
| Manufacturer | TIGER |
| Model | TFA 5 CNC |
| Year | 2003 |
| Transversal travel | 2.500 mm. |
| Vertical travel | 1.300 mm. |
| RAM travel | 920 mm. |
| Table | 2.800 x 800 mm. |
| Spindle taper | ISO 50 |
| Spindle motor power | 15 Kw. |
| Spindle speeds | 10 ÷ 2.500 Rpm. |
| Working feeds | 0 ÷ 3.000 mm/min. |
| Rapid feeds | 12.000 mm/min. |

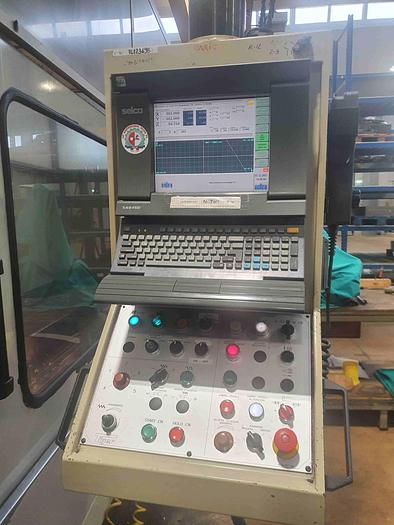

| Cnc | CNC SELCA 4045 D |
| Total weight | 15 Tons. |
Features and Accessories
Complete with:

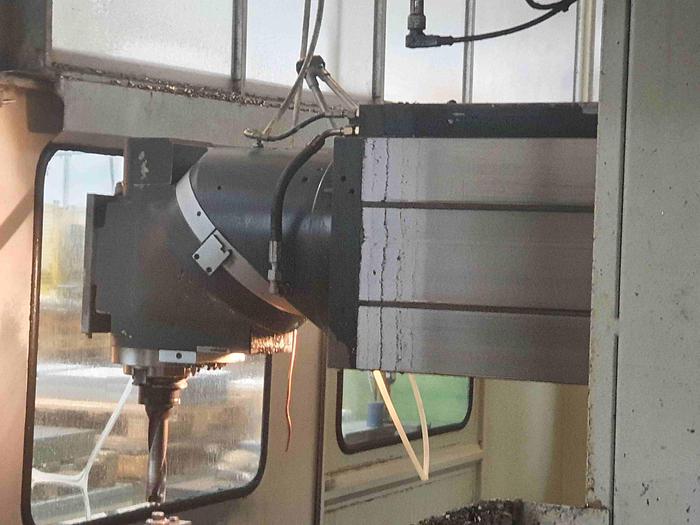

- automatic horizontal/vertical milling head

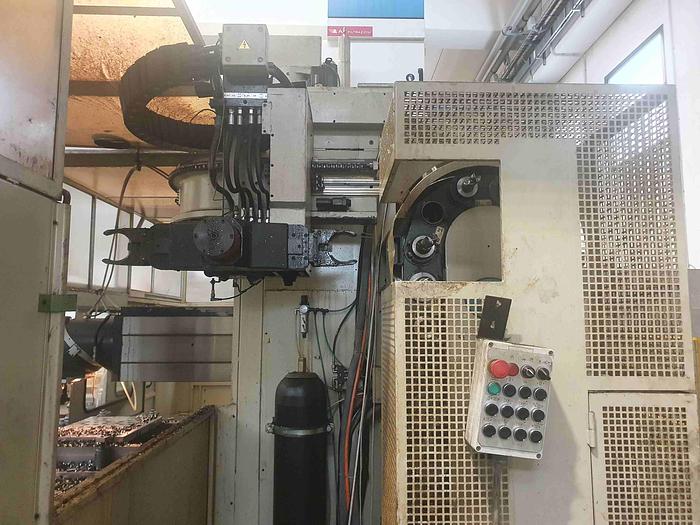

- 30 seats atc

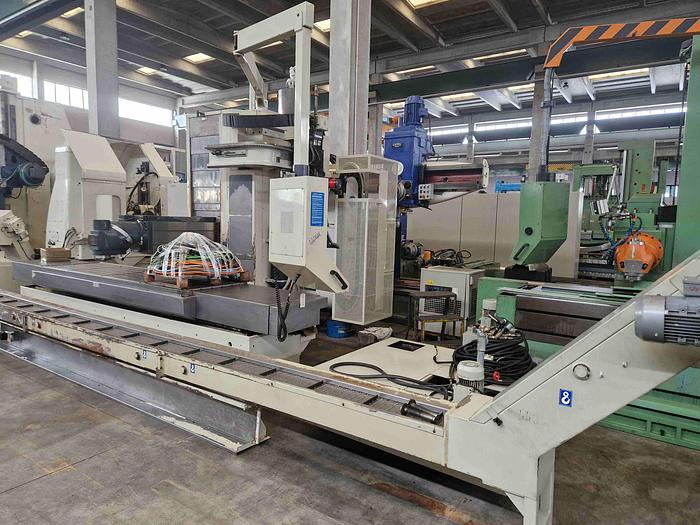

- chipconveyor
