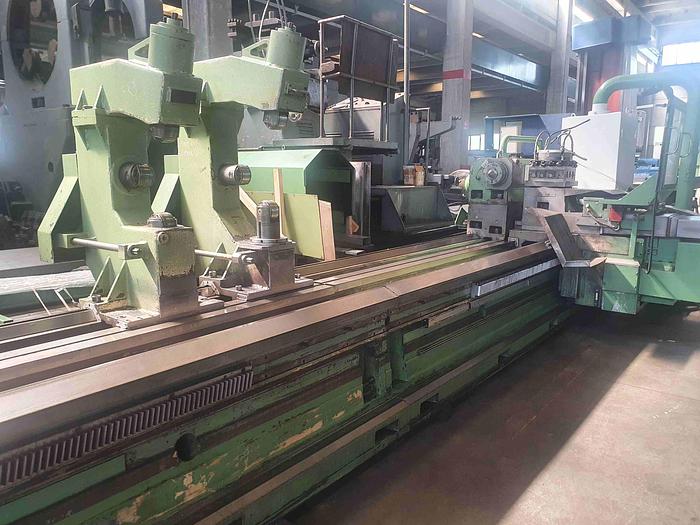

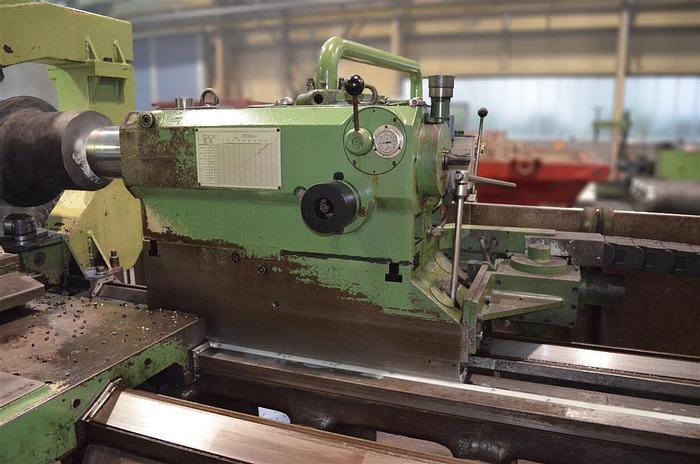

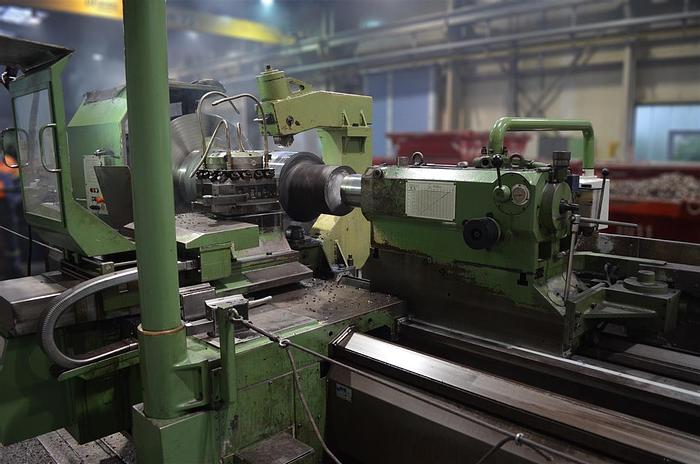

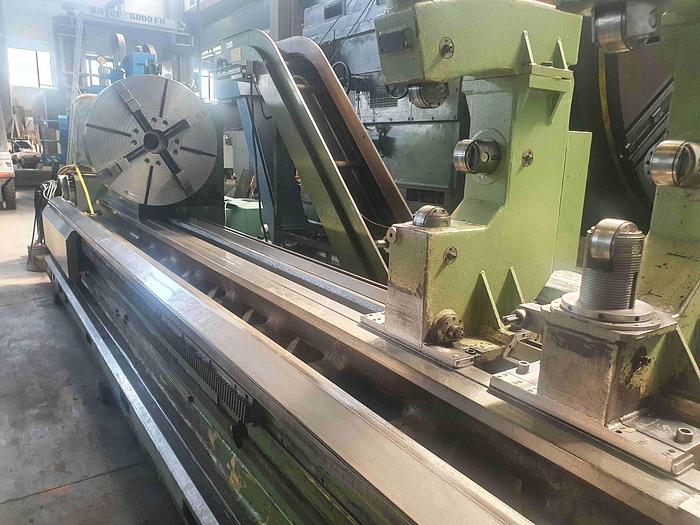

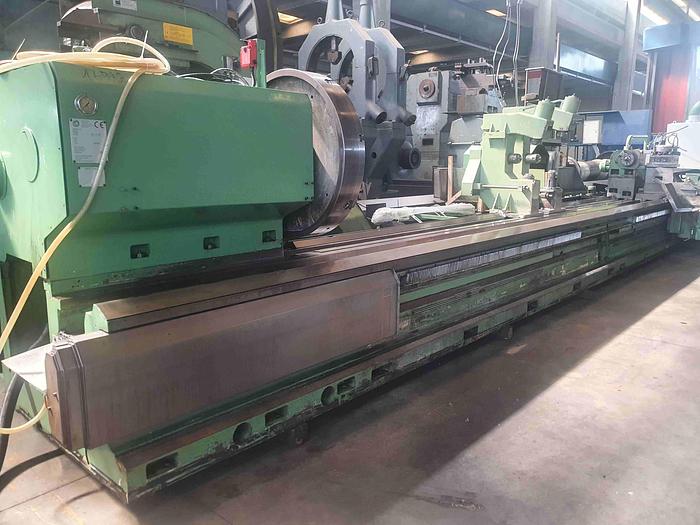

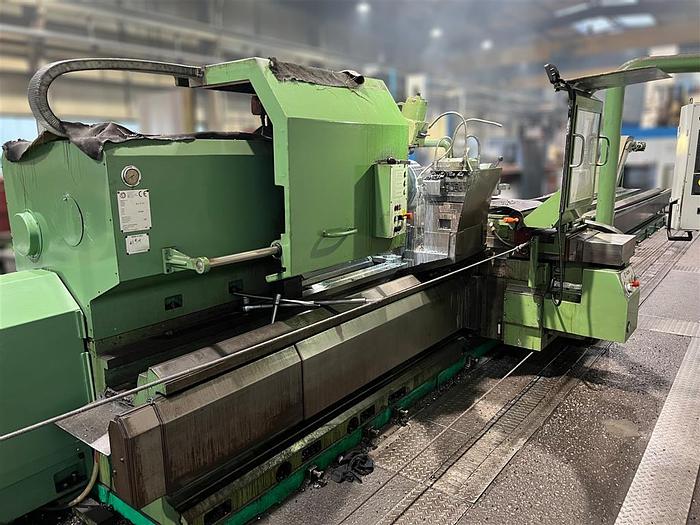

TACCHI HD 3-90 H SDI THREE SLIDES BED CNC LATHE
No longer available
Featured
Technical specifications
| Manufacturer | TACCHI |
| Model | HD 3-90 H SDI CNC |
| Year | 1998 |
| Centres height | 525 mm. |
| Centres distance | 9.000 mm. |
| Max. Ø over saddle | 700 mm. |
| Max. Ø over bed | 1.020 mm. |
| Bed width | 900 mm. |
| Max. weight between centers | 12.000 Kg. |
| Spindle power | 100 Kw. |
| Spindle speeds | 1 ÷ 720 Rpm. |
| Spindle hole | 120 mm. |
| Tailstock nose | 185 mm. |
| Tailstock nose travel | 300 mm. |

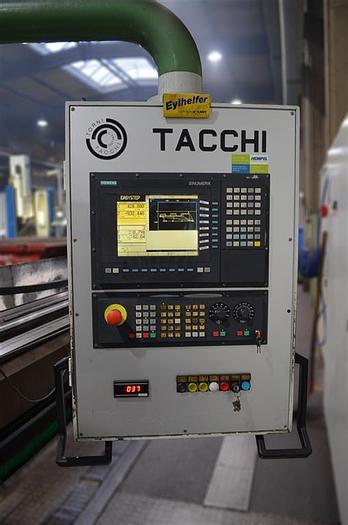

| Cnc | CNC Siemens 840 D |
Features and Accessories
Complete with:
- n. 1 automatic square turret
- n. 1 four jaws table Ø 1.000 mm.
- n. 2 open steadies
- chipconveyor
