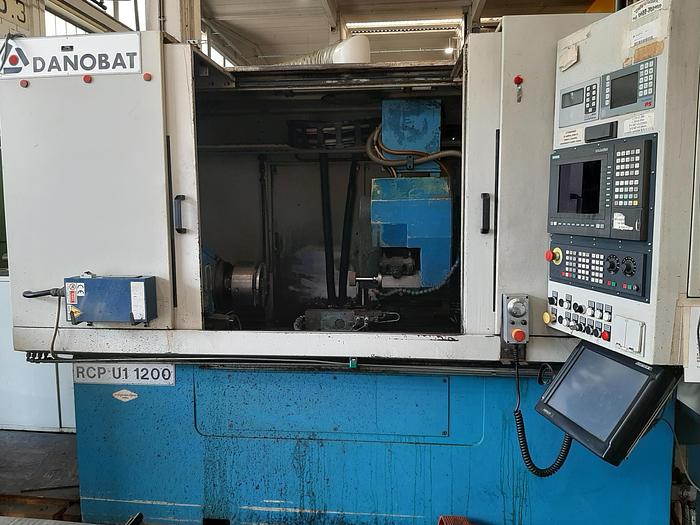

DANOBAT RCP U1 1200 CNC MOVING AND ROTARY HEAD UNIVERSAL GRINDER
No longer available
Technical specifications
Manufacturer | DANOBAT |
Model | RCP U1 1200 CNC |
Year | 2001 |
Max. working diameter | 450 mm. |
Max. working lenght | 1.050 mm. |
Max. weight between centers | 100 Kg. |

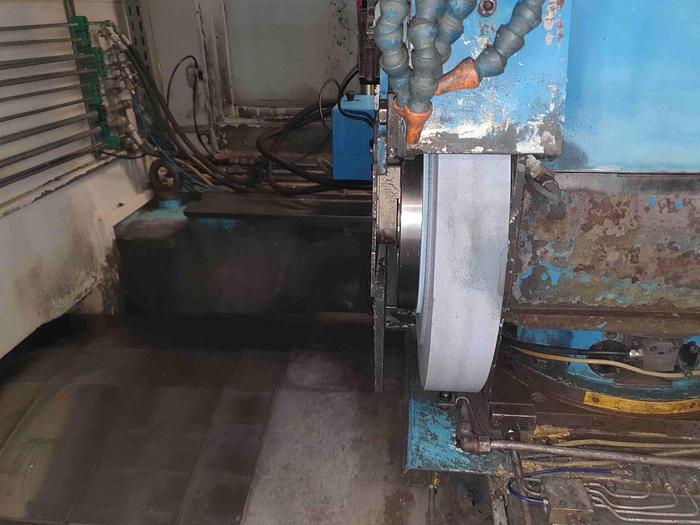

Wheel diameter | 500 mm. |
Wheel motor power | 7,5 Kw. |
Wheel width | 100 mm. |
Wheel speeds | 1.718 ÷ 2.300 Rpm |
Workpiece head speeds | 30 ÷ 700 Rpm. |

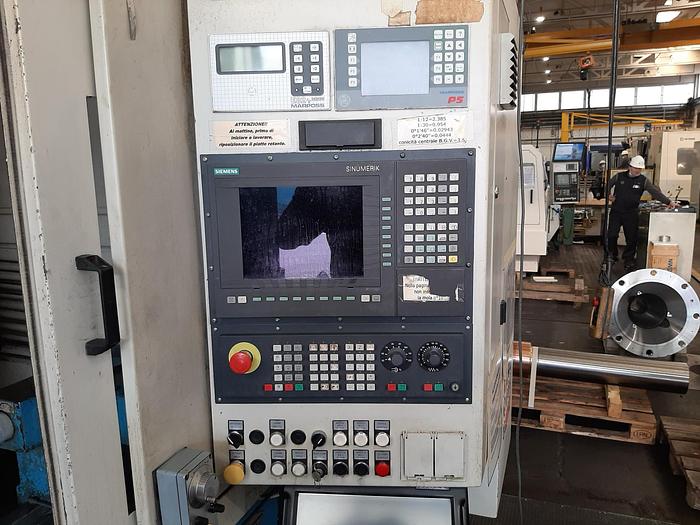

Cnc | CNC SIEMENS 810 D |
Total weight | 8 Tons. |
Features and Accessories
Complete with:

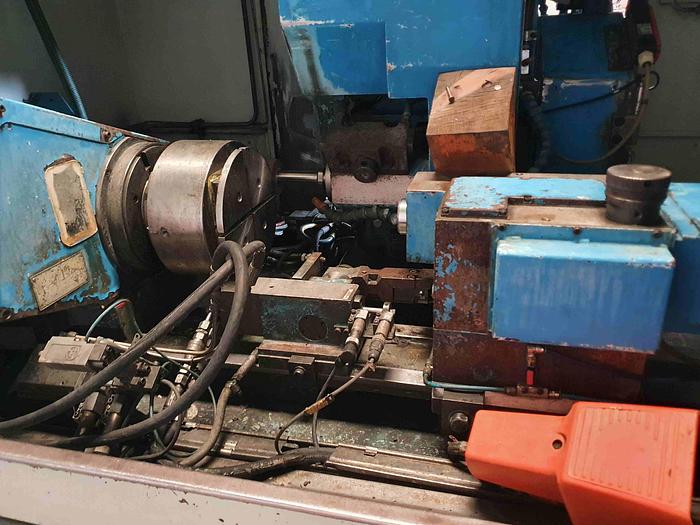

- rotary head with second internal grinding head: power 2,2 kw.
- magnetic table Ø 200 mm.
- self centering chuck Ø 200 mm.
- Marposs E 82 wheel balancer
- Marposs P 5 measuring device

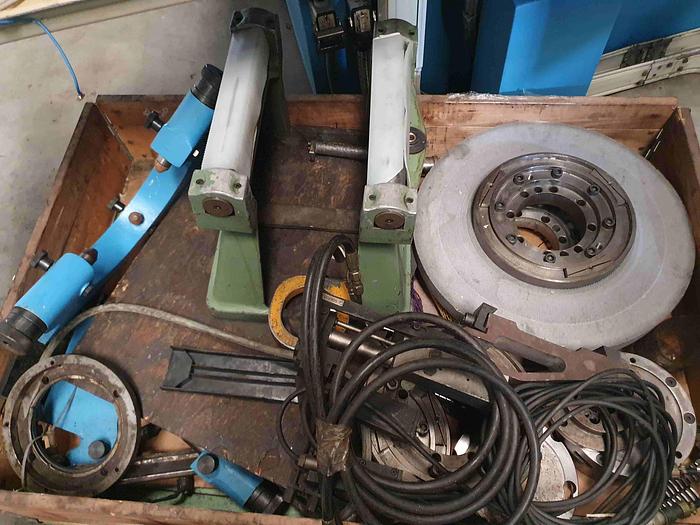

- wheels and wheel flanges
- n. 2 open steadies

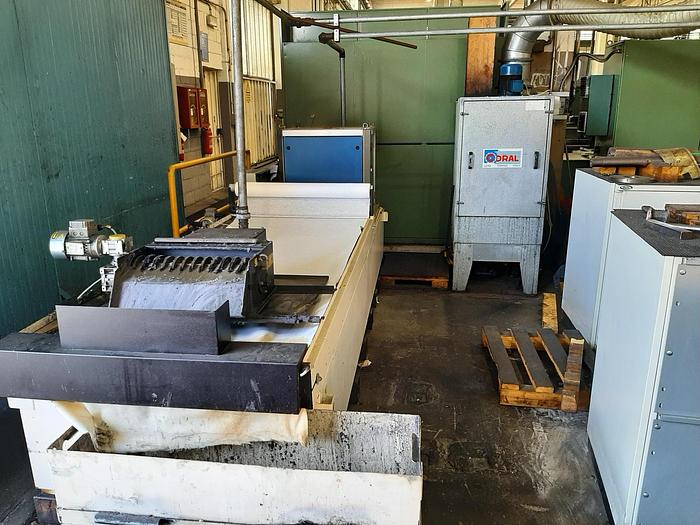

- watertank with filter
