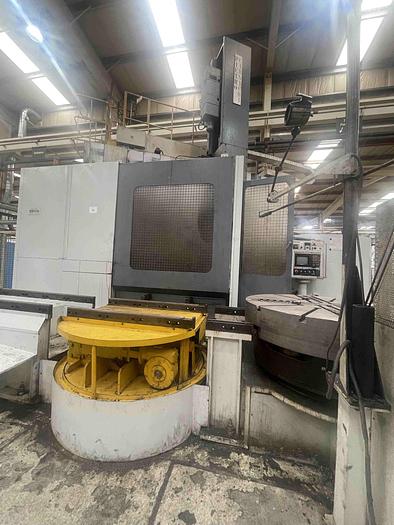

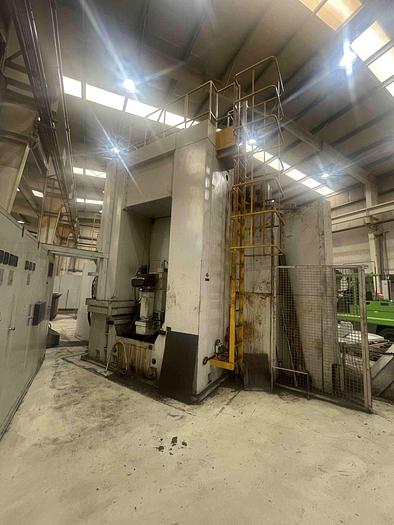

P. CARNAGHI AC 15 CNC VERTICAL BORER
No longer available
Technical specifications
| Manufacturer | P. CARNAGHI |
| Model | AC 15 CNC |
| Year | 1987 |

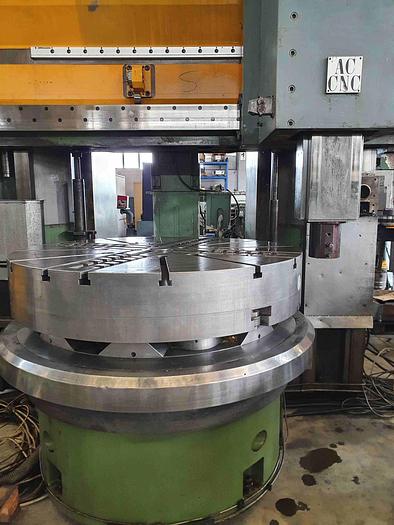

| Table Ø | N. 2; 1.500 mm. |
| Max. working Ø | 1.800 mm. |
| Spindle power | 59 Kw. |
| Max. working height | 1.600 mm. |
| Max. weight on table | 15 Tons. |
| Table speeds | 4,4 ¸ 260 Rpm. |

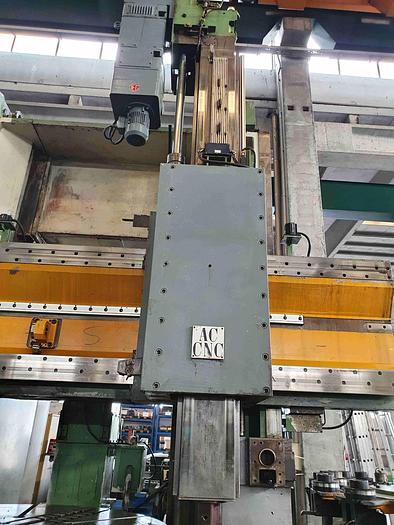

| RAM type vertical tool travel | 1.250 mm. |
| RAM size | 300 x 250 mm. |

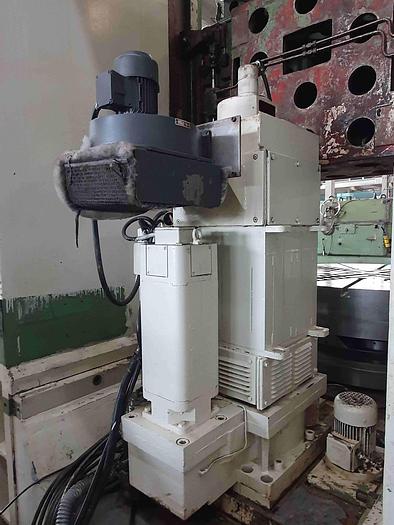

| Milling motor power | 23,2 kw. |

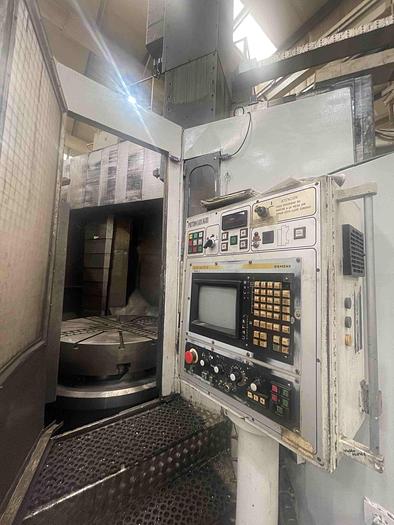

| Cnc | CNC SIEMENS SYSTEM 3 |
| Total weight | 65 Tons. |
Features and Accessories
Complete with:
- "c" axis and live tools

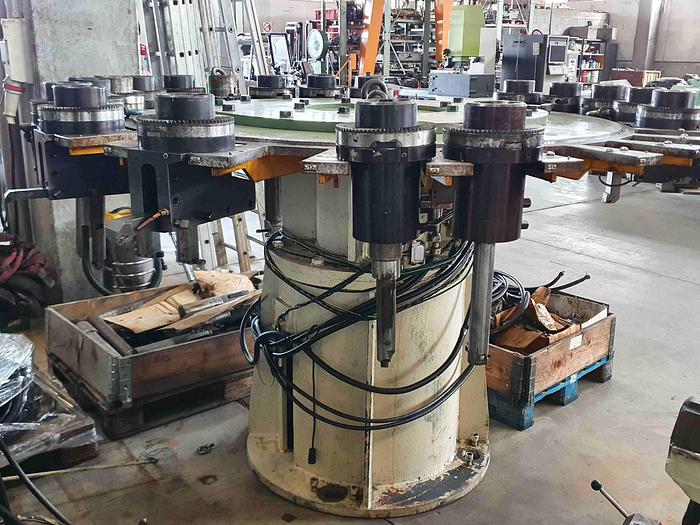

- pallet changer
- 26 seats atc (13 + 13)
- renishaw
- chipconveyor
- full covered
- turning and milling tool holders
