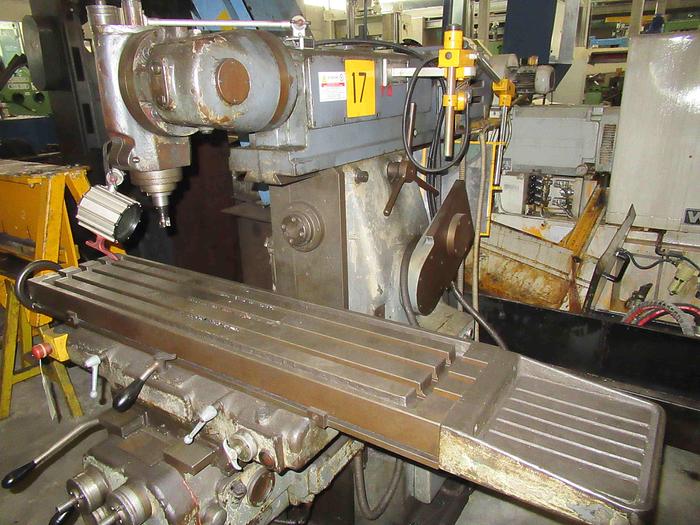

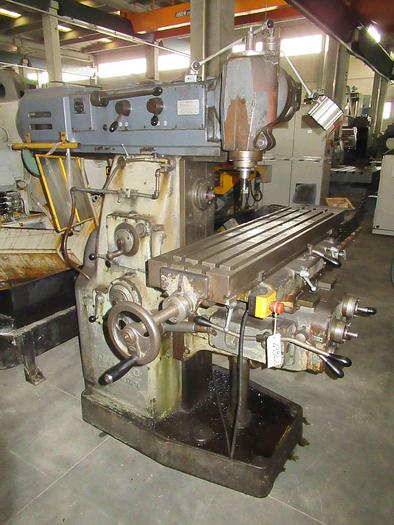

ARNO NOMO U 2 UNIVERSAL MILLING MACHINE
No longer available
Technical specifications
Manufacturer | ARNO NOMO |
Model | U 2 |
Transversal travel | 900 mm. |
Vertical travel | 450 mm. |
Longitudinal table travel | 300 mm. |
Table | 1.300 x 300 mm. |
Total weight | 2.500 Kg. |
Features and Accessories
Horizontal spindle:
- spindle taper ISO 40
- spindle motor power 6 hp.
- spindle speeds - N. 12; 7 - 600 rpm.

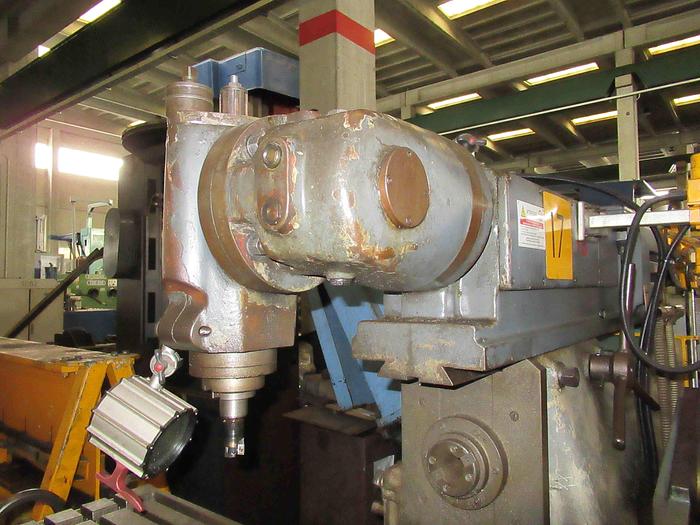

Ram with birotative milling head:
- ram travel 600 mm.
- spindle taper ISO 40
- spindle motor power 10 hp.
- spindle speeds - N. 8; 100 - 1.430 rpm.
