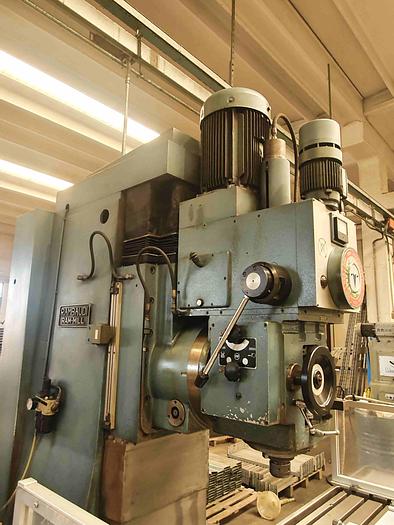

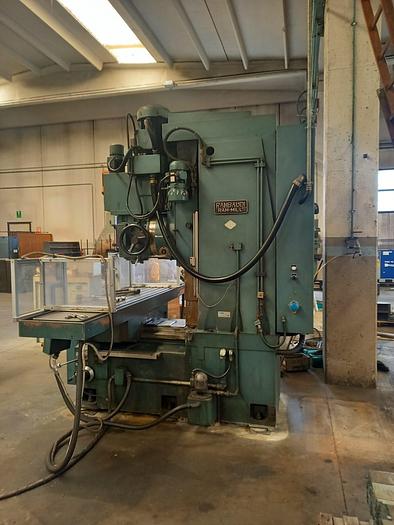

RAMBAUDI RAMMILL 15 VERTICAL MILLING MACHINE
No longer available
Technical specifications
Manufacturer | RAMBAUDI |
Model | RAM-MILL 15 |
Year | 1980 |
Transversal travel | 1.200 mm. |
Vertical travel | 550 mm. |
Longitudinal table travel | 510 mm. |

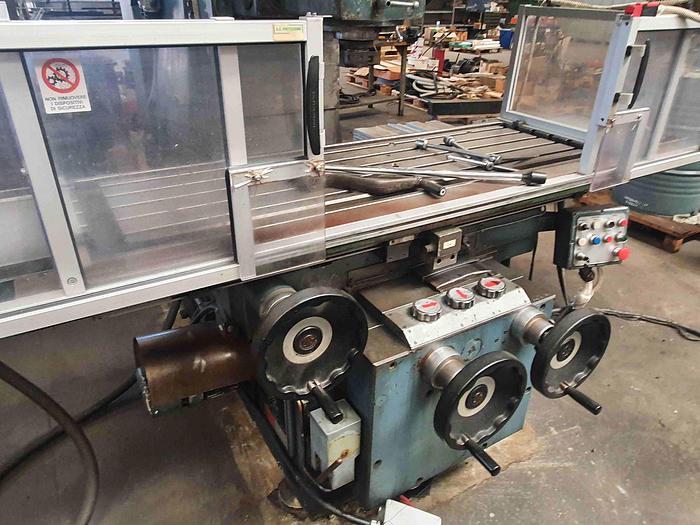

Table | 1.600 X 510 mm. |
Spindle taper | ISO 50 |
Spindle motor power | 15 Hp. |
Spindle speeds | N. 18; 40 - 3.000 Rpm. |
Max. weight on table | 1.500 Kg. |
Total weight | 5.500 Kg. |
Features and Accessories
Complete with:

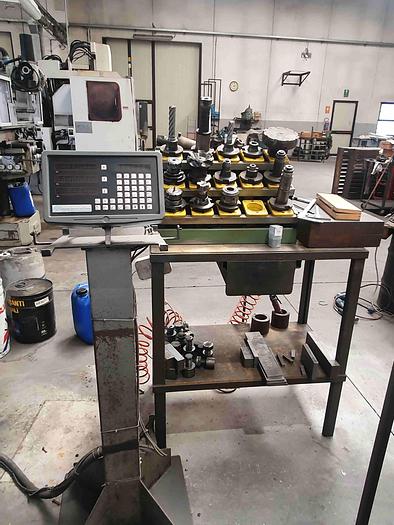

- d.r.o.
- gauge
- tool-holders
- safety protections
