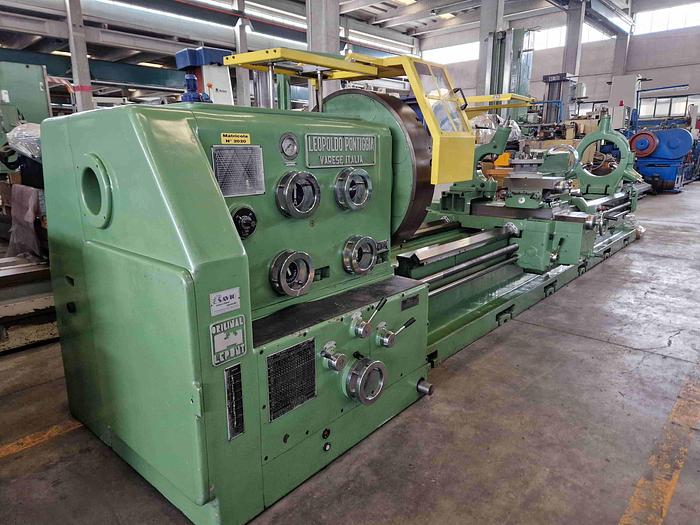

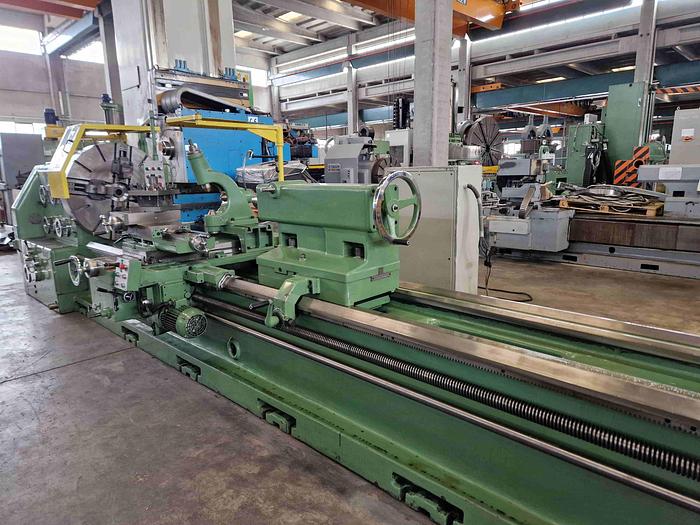

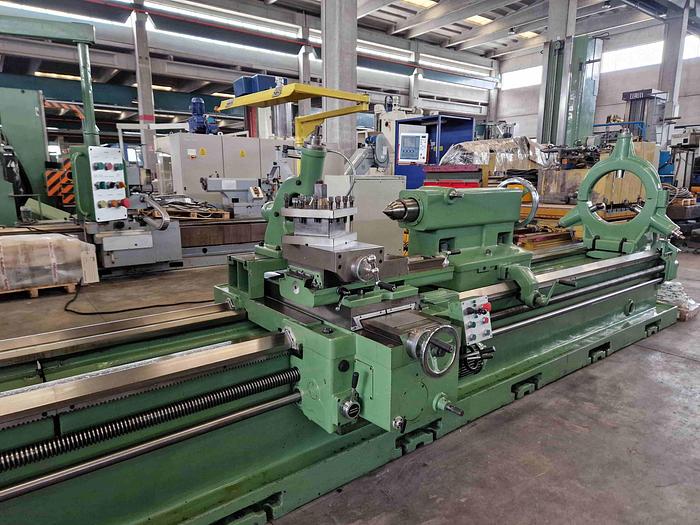

L. PONTIGGIA H 500 x 4500 LATHE
No longer available
Technical specifications
Manufacturer | L. PONTIGGIA |
Model | H 500 |
Year | 1981 |
Centres height | 500 mm. |
Centres distance | 4.500 mm. |
Max. Ø over saddle | 645 mm. |
Max. Ø over bed | 1.000 mm. |
Max. Ø over the gap | 1.345 mm. |
Gap lenght | 600 mm. |
Bed width | 700 mm. |
Max. weight between centers | 10 Tons. |
Spindle power | 22 Kw. |
Spindle speeds | N. 18; 2,8 - 266 Rpm. |
Spindle hole | 102 mm. |
Tailstock nose | 140 mm. |
Total weight | 15 Tons. |
Features and Accessories

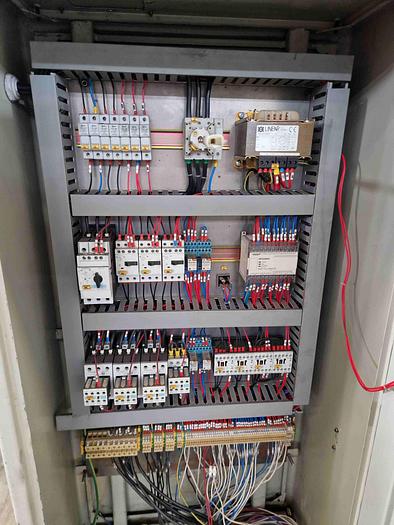

Retrofitted in 2000.
Complete with:
- n. 1 four jaws table Ø 1.000 mm.

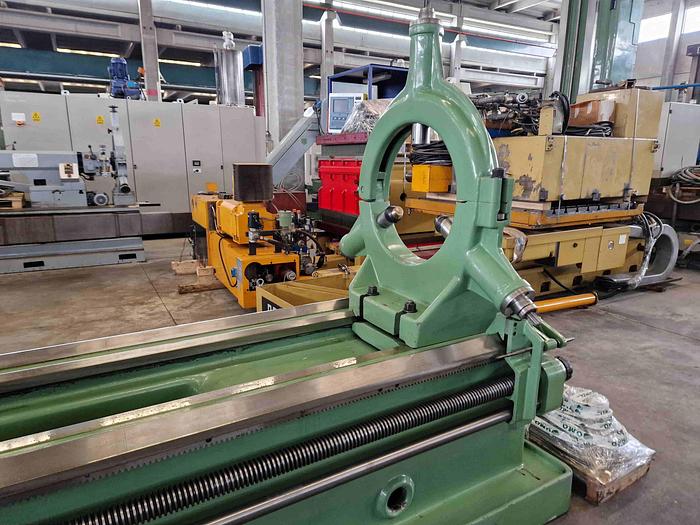

- n. 1 closed steady
- n. 1 open steady
- safety protections
