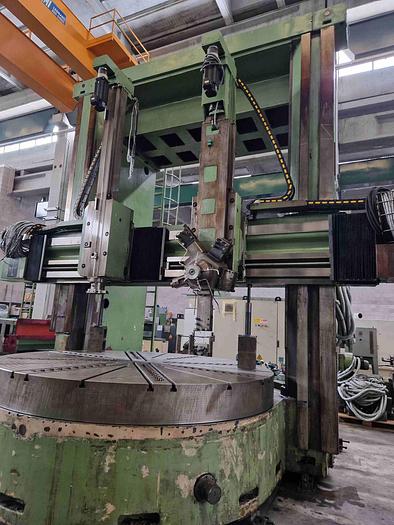

TITAN SC 33 H CNC VERTICAL BORER
No longer available
Technical specifications
Manufacturer | TITAN/ROMAN |
Model | SC 33 H CNC |
Year | 1998 |

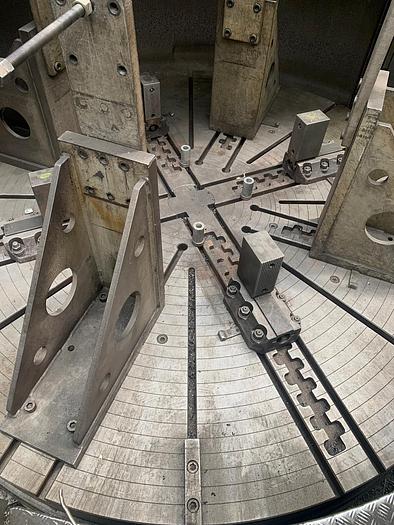

Table Ø | 3.000 mm. |
Max. working Ø | 3.300 mm. |
Spindle power | 60 Kw. |
Max. working height | 3.200 mm. |
Max. weight on table | 18 Tons. |
Table speeds | 1,02 ÷ 92 Rpm. |
RAM type vertical tool travel | 1.500 mm. |
Turret type vertical tool travel | 1.000 mm. |
RAM size | 236 x 230 |
Cnc | CNC Fagor 8050 |
Total weight | 48 Tons. |
Features and Accessories
Complete with:

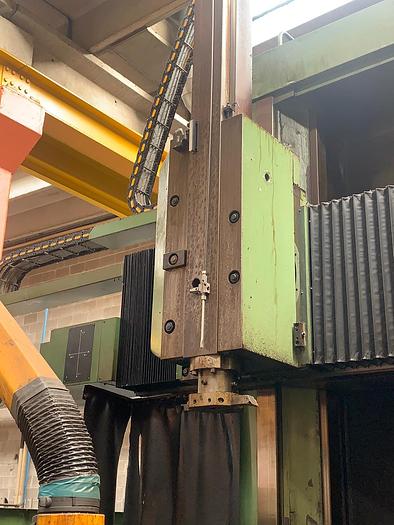

- n. 1 cnc ram type vertical tool

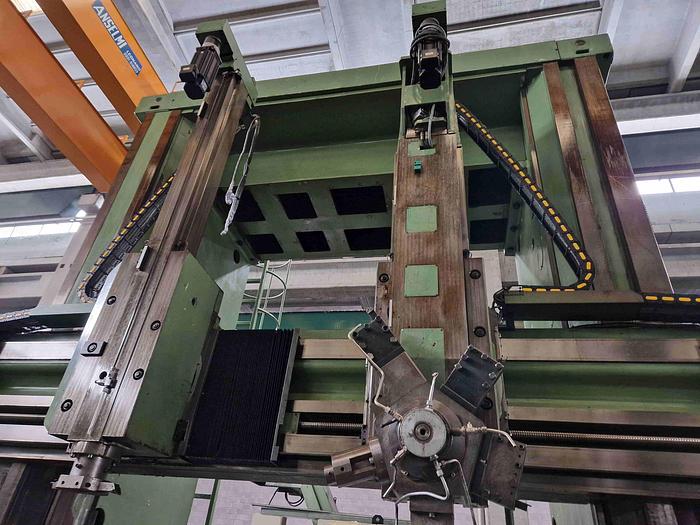

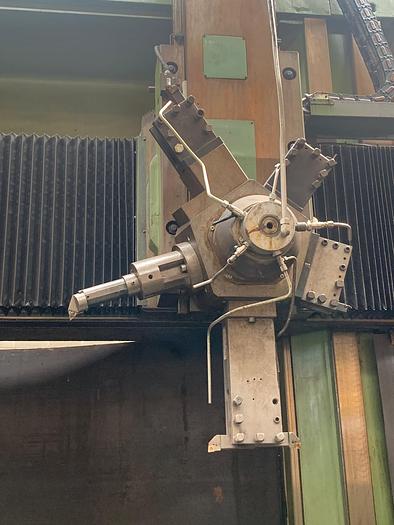

- n. 1 cnc vertical tool with five positions automatic turret
- chipconveyor
