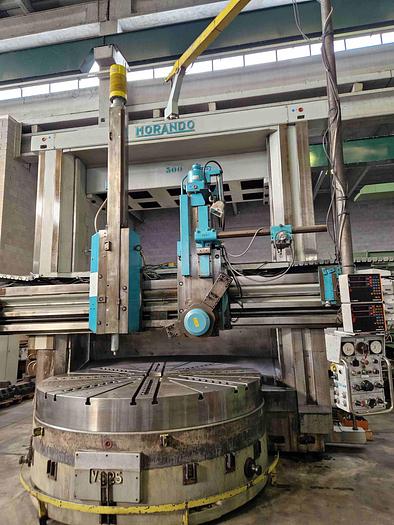

MORANDO VS 25-33 VERTICAL BORER
No longer available
Technical specifications
Manufacturer | MORANDO |
Model | VS 25-33 |
Year | 1972 |

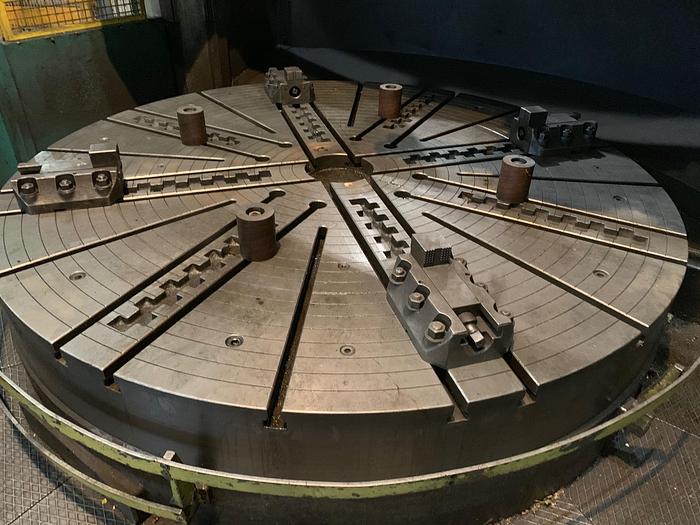

Table Ø | 2.500 mm. |
Max. working Ø | 3.300 mm. |
Spindle power | 58,9 Kw.. |
Max. working height | 2.400 mm. |
Max. weight on table | 18 Tons. |
Table speeds | 1,02 ÷ 92 Rpm. |

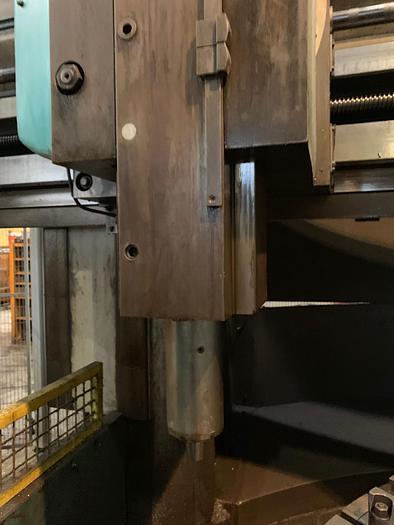

RAM type vertical tool travel | 1.500 mm. |
Turret type vertical tool travel | 760 mm. |
Max. swivelling angle | 35° |
Total weight | 48 Tons. |
Features and Accessories
Complete with:

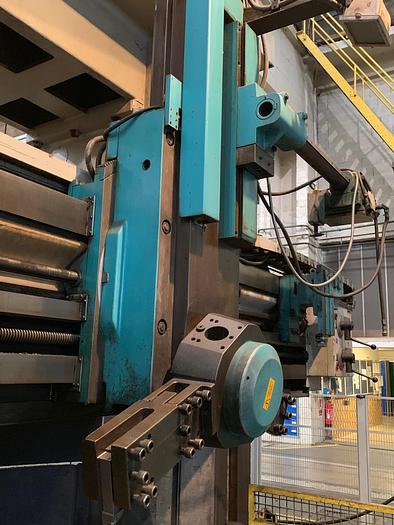

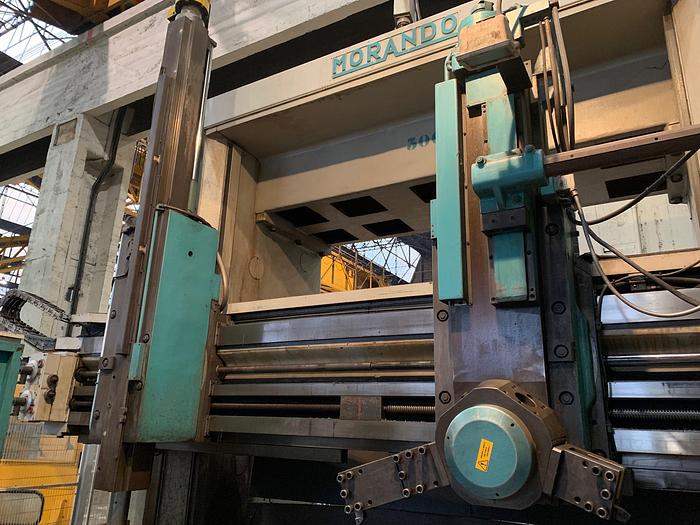

- n. 1 ram type vertical tool with grinding device
- n. 1 automatic five positions turret vertical tool

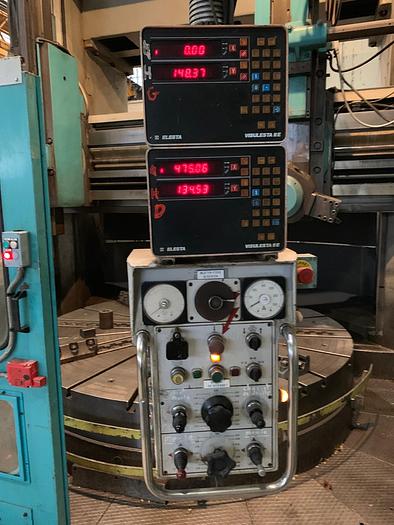

- d.r.o.
- copying attachment
