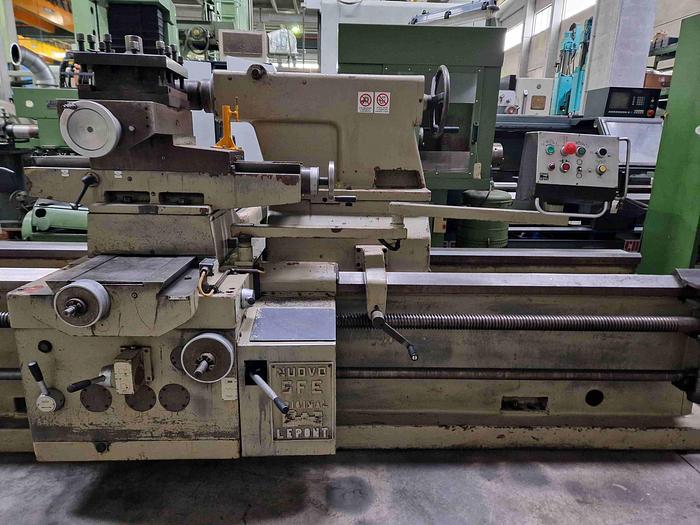

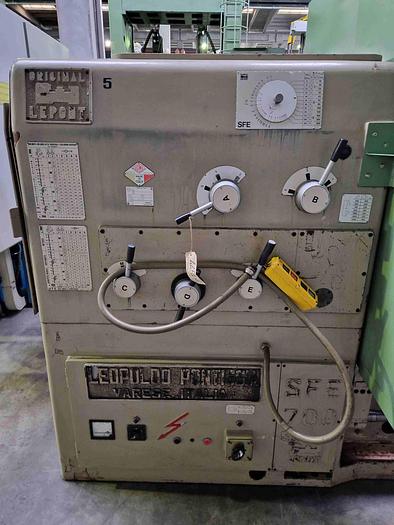

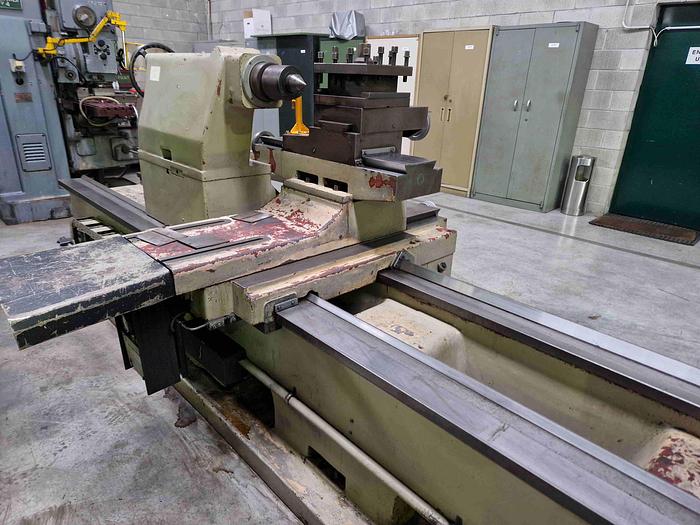

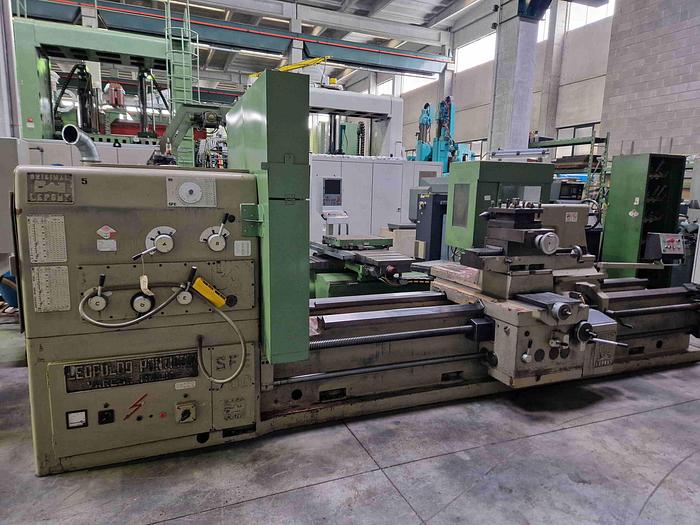

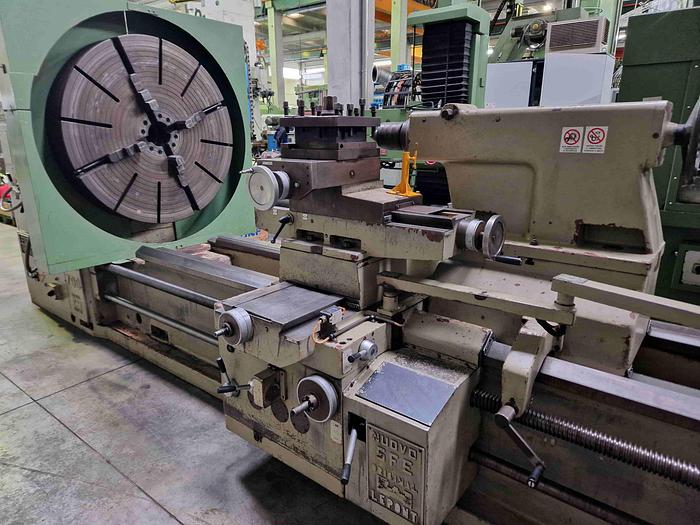

L. PONTIGGIA SFE 700 x 3000 LATHE
No longer available
Technical specifications
| Manufacturer | PONTIGGIA |
| Model | SFE 700 |
| Year | 1977 |
| Centres height | 700 mm. |
| Centres distance | 3.000 mm. |
| Max. Ø over saddle | 1.020 mm. |
| Max. Ø over bed | 1.390 mm. |
| Bed width | 700 mm. |
| Max. weight between centers | 6.000 Kg. |
| Spindle power | 25 Hp. |
| Spindle speeds | N. 24; 8 - 200 Rpm. |
| Spindle hole | 100 mm. |
| Tailstock nose | 135 mm. |
| Tailstock nose travel | 300 mm. |
| Total weight | 9 Tons. |
Features and Accessories
Complete with:

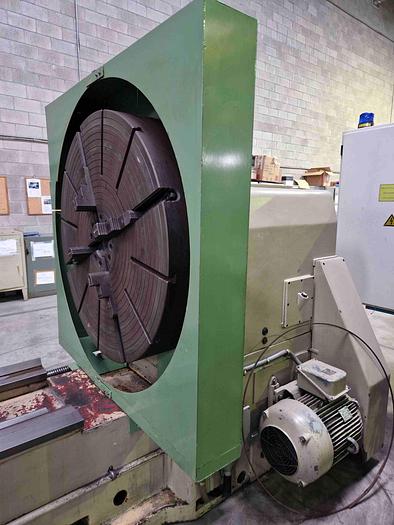

- n. 1 four jaws table Ø 1.200 mm.
