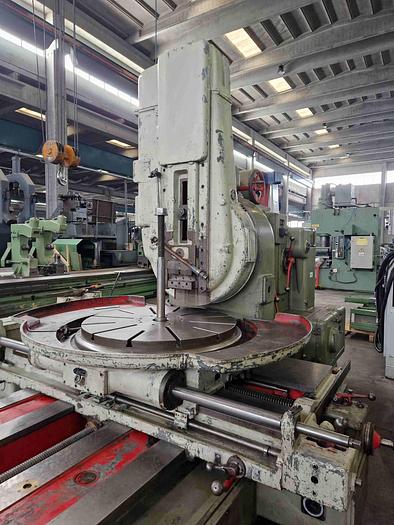

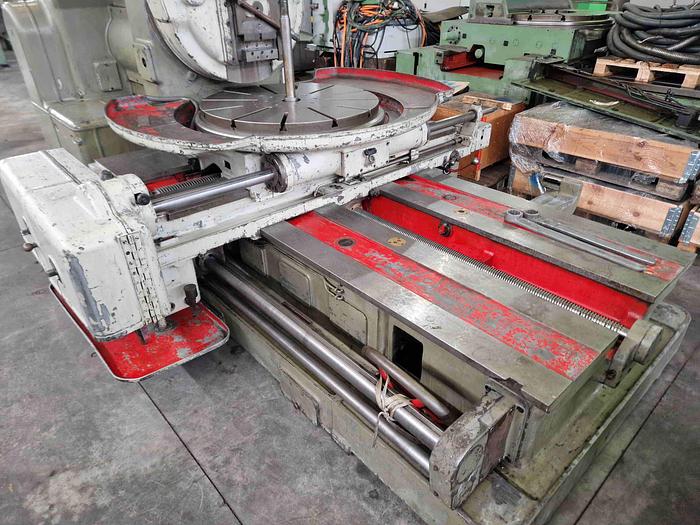

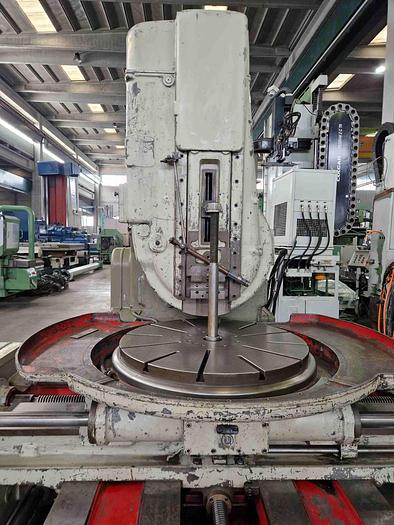

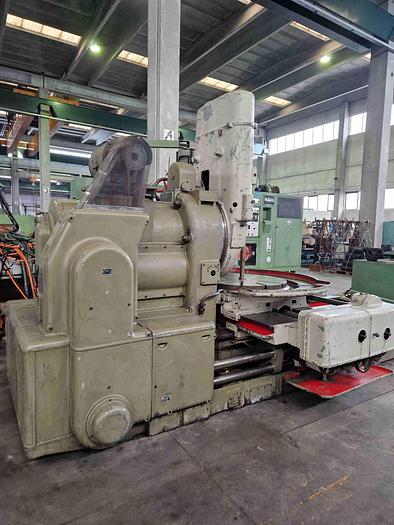

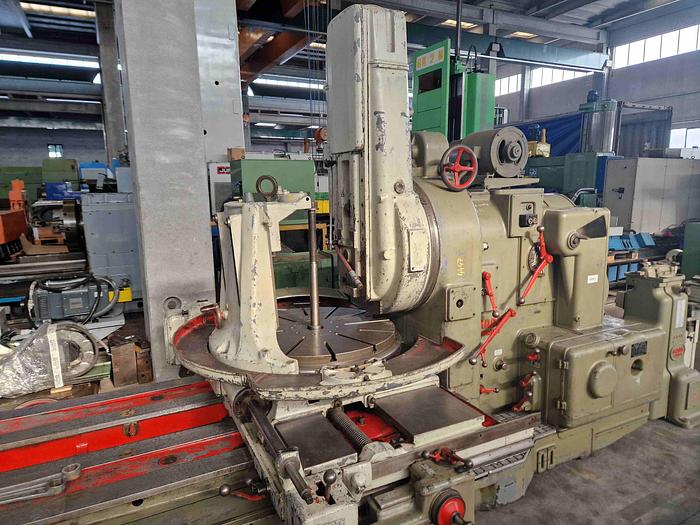

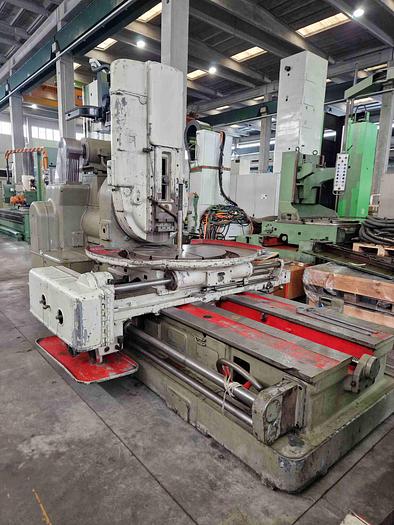

MAAG SH 180/300 GEAR SHAPING MACHINE
Technical specifications
| Manufacturer | MAAG |
| Model | SH 180/300 |
| Max. working Ø | 3.000 mm. |
| Table Ø | 1.000 mm. |
| Max. module | 20/40 |
| Head vertical travel | 450 mm. |
| Tooth width | 425 mm. |
| N° of working teeth min./max. | 10/400 |
| Main motor power | 15 Hp. |
| Max. weight on table | 4.000 Kg. |
| Total weight | 14.400 Kg. |
Features and Accessories
Complete with:
- countercolumn
- workpiece support
- gears
- MAAG WS 2 gear cutter sharpner
