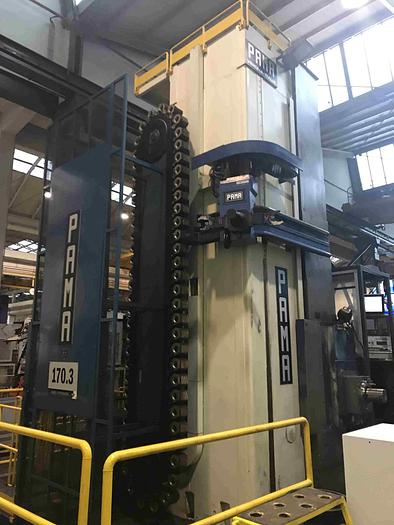

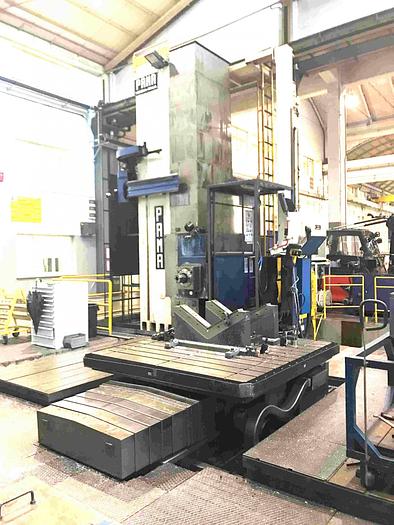

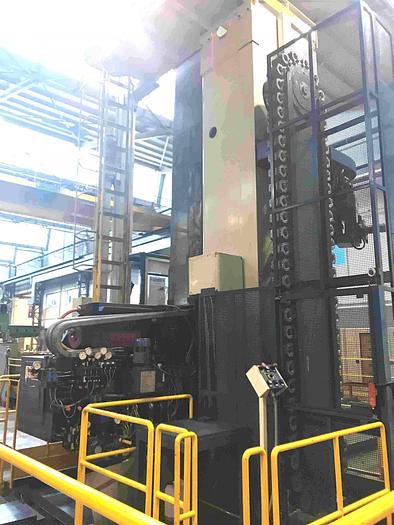

PAMA SPEEDRAM 1 CNC FLOOR TYPE BORER
No longer available
Technical specifications
| Manufacturer | PAMA |
| Model | SPEEDRAM 1 CNC |
| Year | 1985 |
| Spindle | 150 mm. |
| Transversal travel | 8.000 mm. |
| Vertical travel | 3.200 mm. |
| RAM travel | 800 mm. |
| Spindle travel | 700 mm. |
| Spindle taper | ISO 50 |
| Spindle power | 60 Kw. |
| Spindle speeds | 6 ÷ 1.600 Rpm. |
| RAM size | 360x400 mm. |
| Working feeds | 1 ÷ 6.000 mm/min. |
| Rapid feeds | 10.000 mm/min. |

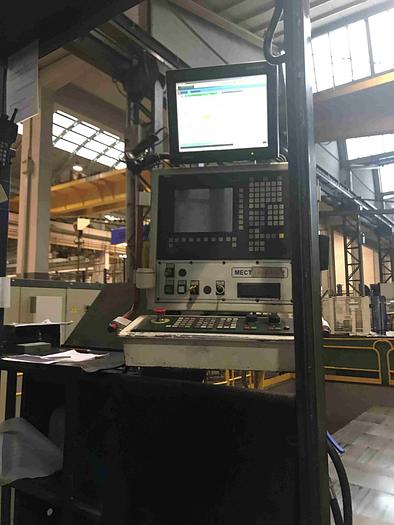

| Cnc | CNC SIEMENS 840 D |
Features and Accessories
Retrofitted in 2007.
Complete with:

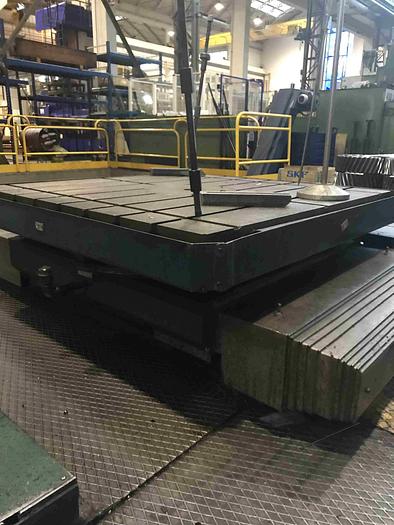

- n. 1 Pama mod. TG 3 cnc rotary table - 2 axis (b; v): sizes 2.000 x 2.000 mm.; max. carrying capacity 15 tons.; longitudinal travel 1.500 mm.
- 60 seats ATC
- n. 1 indexed vertical milling head
- n. 1 manual vertical milling head
- n. 1 floor plate 3.000 x 2.000 x 300 - kg. 4.200
- n. 2 floor plates 3.000 x 1.500 x 300 - kg. 3.000 each one
- chipconveyor
