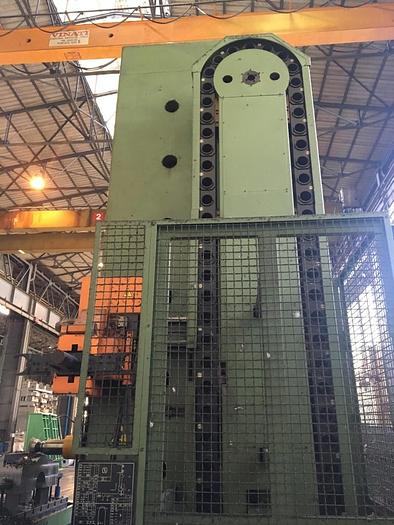

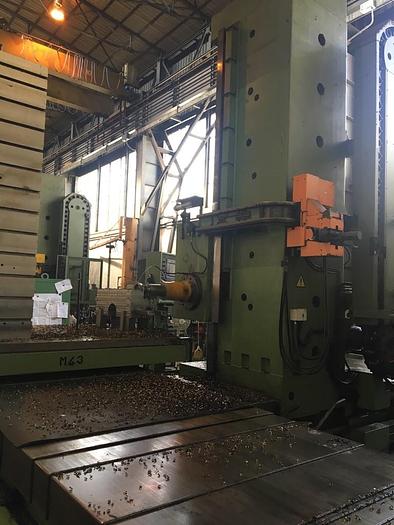

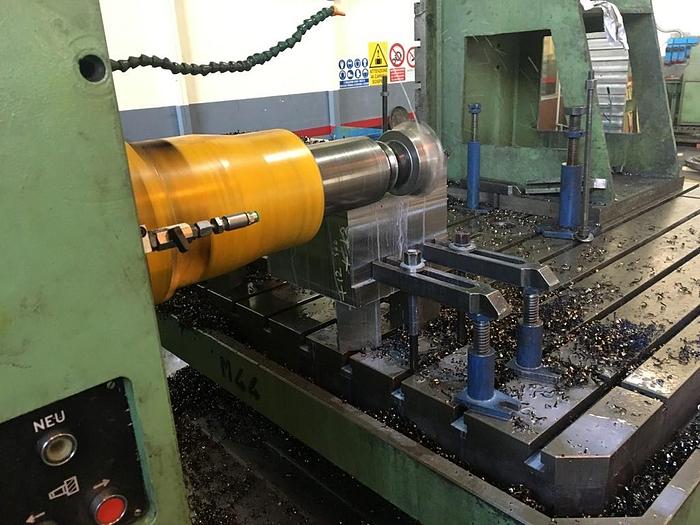

TOS WHQ 13 CNC “T” TYPE BORER
No longer available
Technical specifications
| Manufacturer | TOS |
| Model | WHQ 13 CNC |
| Year | 1998 |
| Spindle | 130 mm. |
| Transversal travel | 3.500 mm. |
| Vertical travel | 2.500 mm. |
| Longitudinal travel | 1.250 mm. |
| Spindle travel | 800 mm. |
| Spindle taper | ISO 50 |

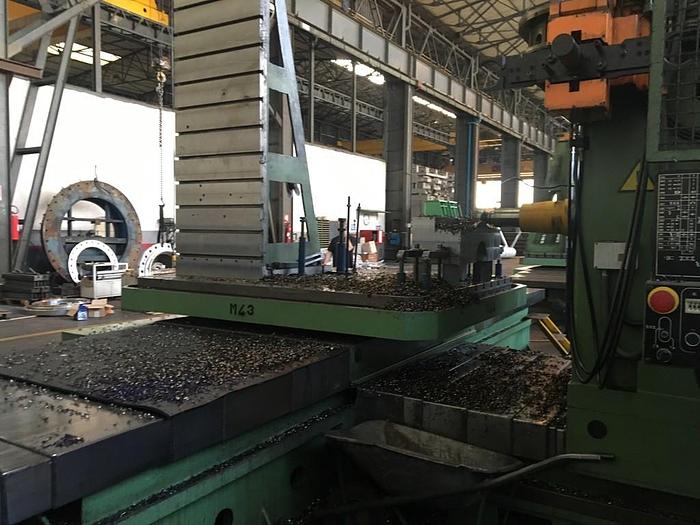

| Table | 2.200 x 1.800 mm. |
| Spindle power | 37 Kw. |
| Spindle speeds | 5 ÷ 1.500 Rpm. |
| Max. weight on table | 12.000 kg. |
| Working feeds | 4 ÷ 3.000 mm/min. |
| Rapid feeds | 8.000 mm/min. |
| Total weight | 38 Tons. |

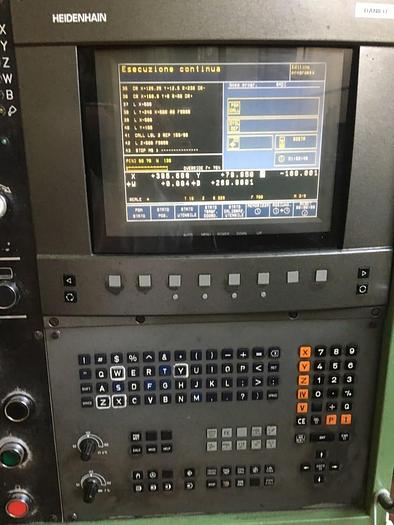

| Cnc | CNC HEIDENHAIN TNC 426 |
Features and Accessories
Complete with: - 60 seats ATC - n. 1 birotative milling head - n. 1 boring support
