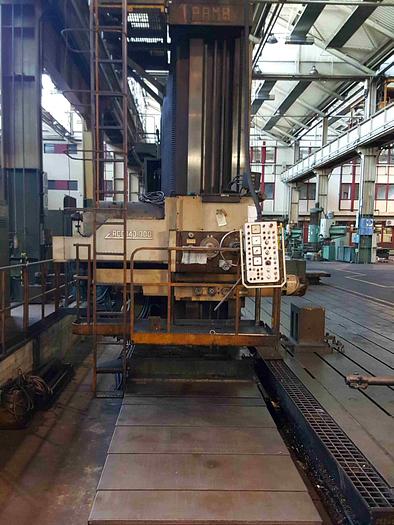

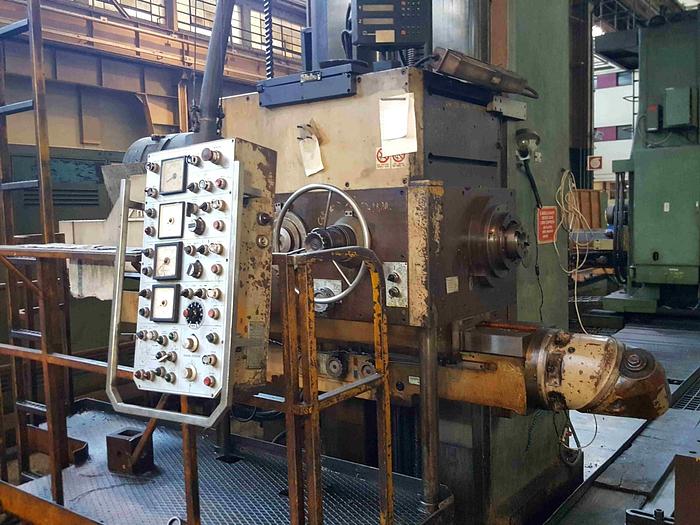

PAMA ACC 140/300 FLOOR TYPE BORER
No longer available
Technical specifications
Manufacturer | PAMA |
Model | ACC 140/300 |
Year | 1971 |
Spindle | 140 mm. |
Transversal travel | 5.000 mm. |
Vertical travel | 2.700 mm. |
RAM travel | 340 mm. |
Spindle travel | 1.020 mm. |
Spindle taper | ISO 50 |
Spindle power | 29,4 Kw. |
Spindle speeds | 1,5 ÷ 800 Rpm. |
Total weight | 40 Tons. |
Features and Accessories
Complete with:

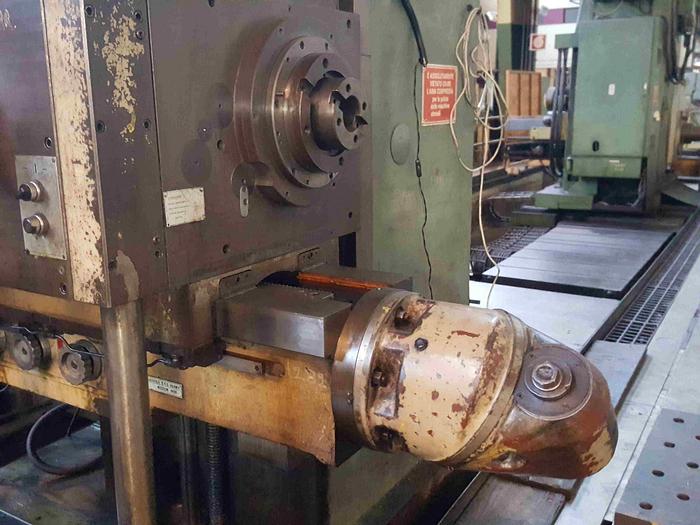

- motorised ram with iso 50 birotative milling head: travel 1.000 mm.; speeds: n. 12 from 50 to 630 rpm.; power 12 hp.
- d.r.o.

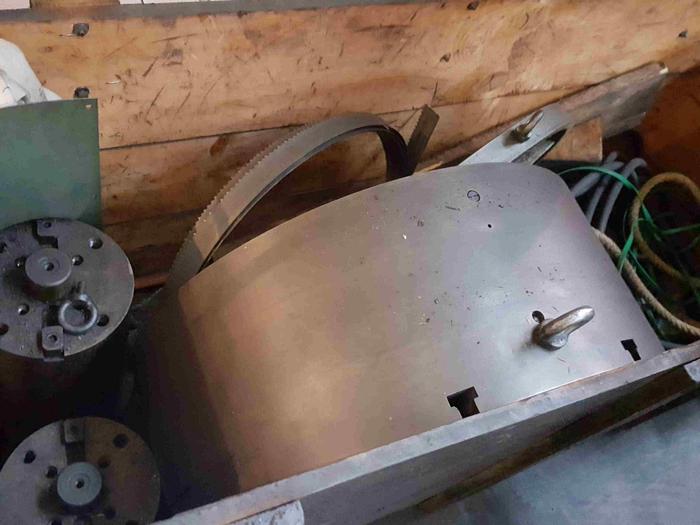

- facing chuck
