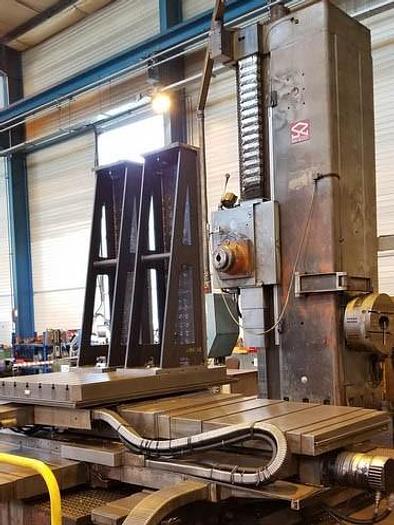

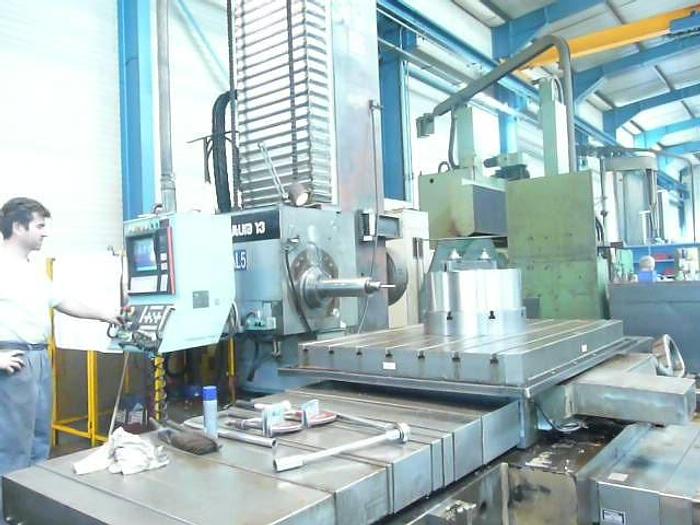

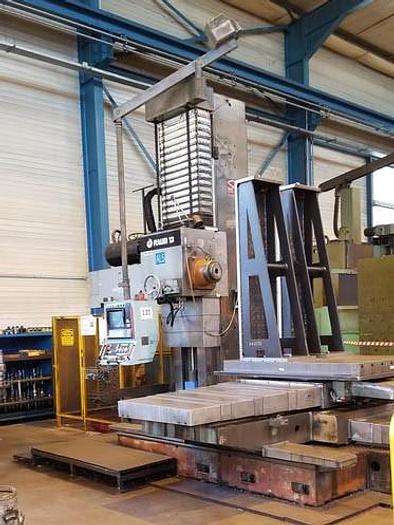

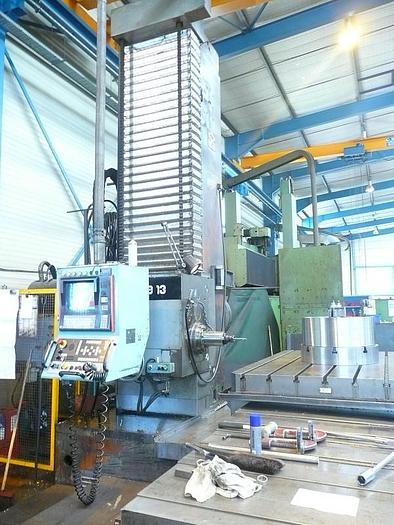

SAN ROCCO FUTURA 13 CNC TABLE TYPE BORER
No longer available
Technical specifications
| Manufacturer | SAN ROCCO |
| Model | FUTURA 13 CNC |
| Year | 1980 |
| Spindle | 130 mm. |
| Transversal travel | 2.500 mm. |
| Vertical travel | 2.100 mm. |
| Longitudinal travel | 1.500 mm. |
| Spindle travel | 800 mm. |
| Spindle taper | ISO 50 |
| Table | 1.800 x 1.250 mm. |
| Spindle power | 22 Kw. |
| Spindle speeds | 5 ÷ 1.242 Rpm. |
| Max. weight on table | 7.000 kg. |

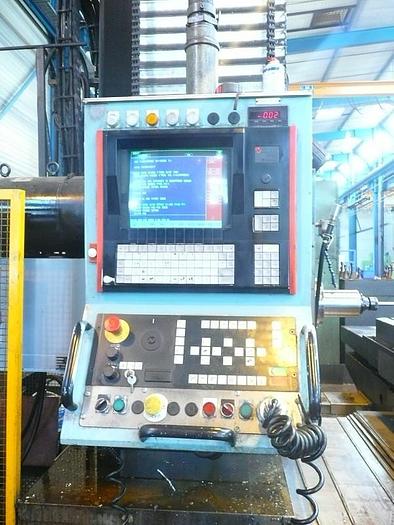

| Cnc | CNC NUM 1060 - 6 AXIS |
Features and Accessories
Retrofitted in 1995.
Complete with:
- birotative milling head
- D’ andrea Sensitiv NC 601 cnc facing head (u)
- boring support
- tool-holders
