BERARDI MCTC 120 S CNC FLOOR TYPE BORER
No longer available
Technical specifications
| Manufacturer | BERARDI |
| Model | MCTC 120 S CNC |
| Year | 1980 |
| Spindle | 120 mm. |
| Transversal travel | 4.200 mm. |
| Vertical travel | 2.000 mm. |
| Longitudinal travel | 900 mm. |
| Spindle travel | 700 mm. |
| Spindle taper | ISO 50 |
| Table | 2.000 mm. |
| Spindle power | 25,7 Kw. |
| Spindle speeds | 30 ÷ 2.250 Rpm. |
| Total weight | 41 Tons. |

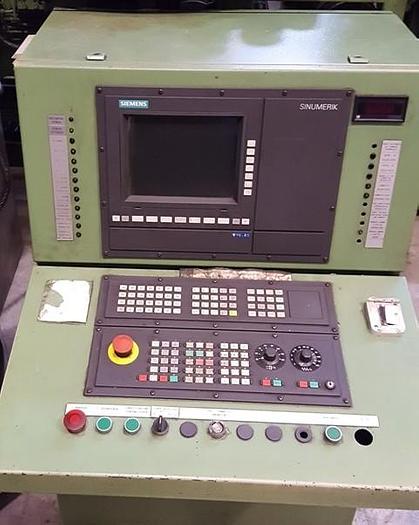

| Cnc | CNC SIEMENS 840 C |
Features and Accessories

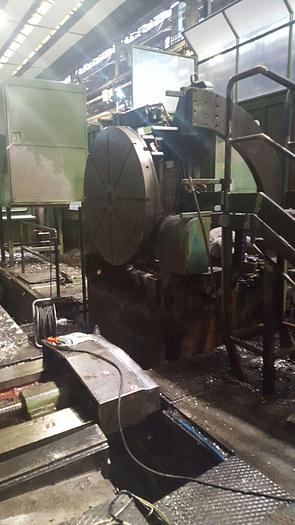

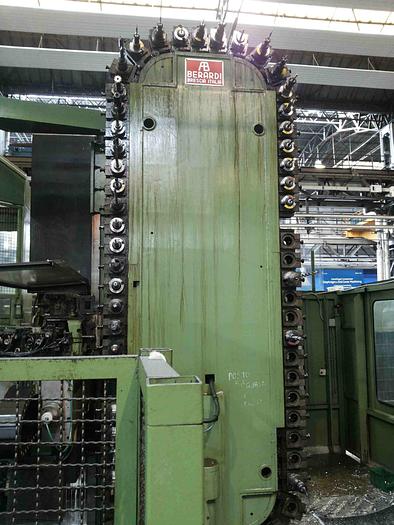

Retrofitted in 1994. Complete with: - cnc tilting and rotary table: Ø 2.000 mm.: capacity 10 tons.; a= 90°; b=360°; weight 17 tons. - 60 seats ATC
