DEVLIEG 4K-72 TABLE TYPE BORER
No longer available
Technical specifications
| Manufacturer | DEVLIEG |
| Model | 4K-72 |
| Spindle | 102 mm. |
| Transversal travel | 1.829 mm. |
| Vertical travel | 1.200 mm. |
| Longitudinal travel | 508 mm. |
| Spindle travel | 508 mm. |
| Spindle taper | ISO 50 |
| Table | 1.829 x 1.016 mm. |
| Spindle power | 15 Kw. |
| Spindle speeds | 14 - 1.450 Rpm. |
| Max. weight on table | 3.630 Kg. |
Features and Accessories
Retrofitted in 2008.
Complete with:

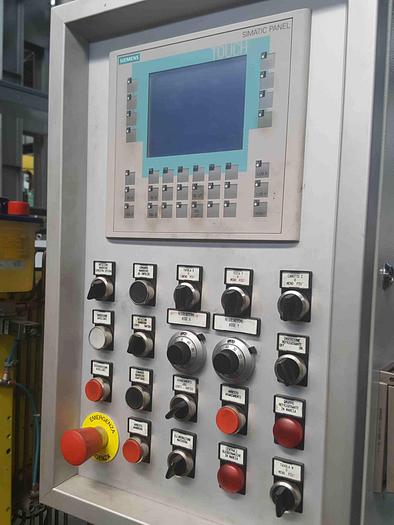

- plc Siemens Touch Simatic
- upper table 1.270 x 1.016 mm.
- tool-holders
