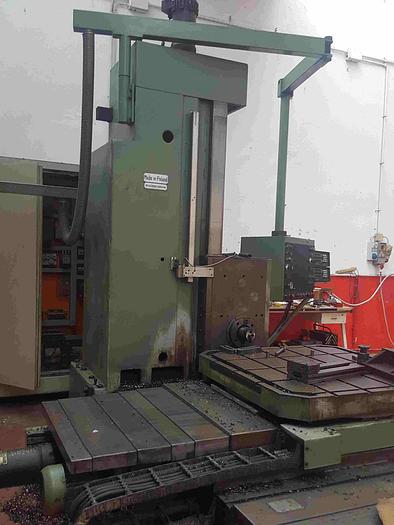

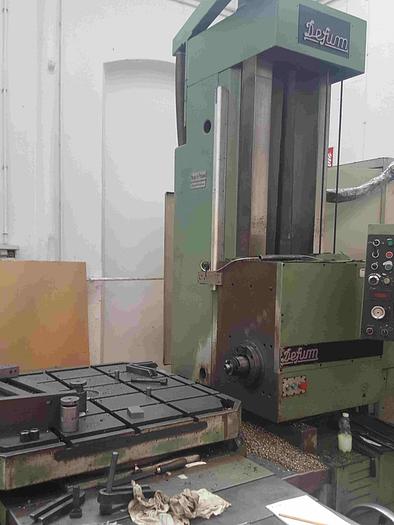

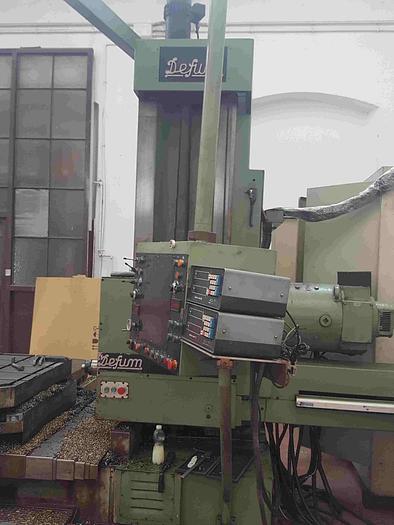

DEFUM WFM 100 TABLE TYPE BORER
No longer available
Technical specifications
| Manufacturer | DEFUM |
| Model | WFM 100 |
| Year | 1977 |
| Spindle | 100 mm. |
| Transversal travel | 1.200 mm. |
| Vertical travel | 1.000 mm. |
| Longitudinal travel | 900 mm. |
| Spindle travel | 600 mm. |
| Spindle taper | ISO 50 |

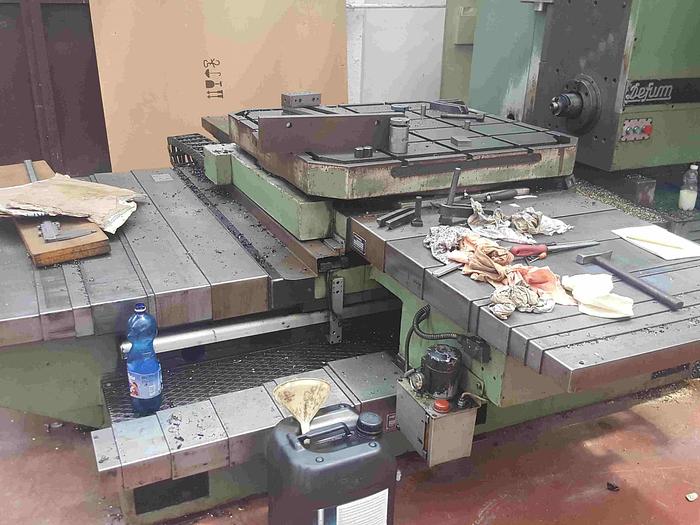

| Table | 1.100 x 1.100 mm. |
| Spindle power | 18,5 Kw. |
| Spindle speeds | 4,5 ÷ 1.600 Rpm. |
| Max. weight on table | 3.000 Kg. |
| Total weight | 12 Tons. |
Features and Accessories
Complete with:
- d.r.o.
- ball screws

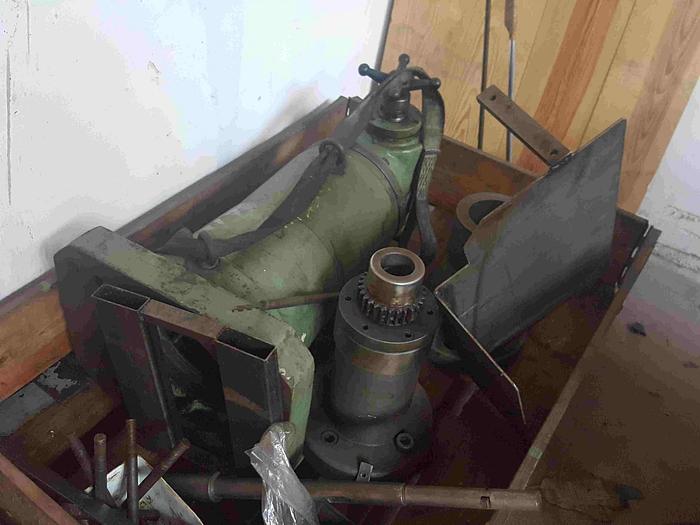

- vertical milling head
- tool holders
