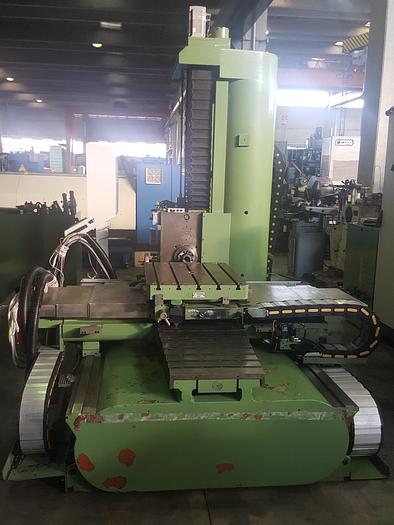

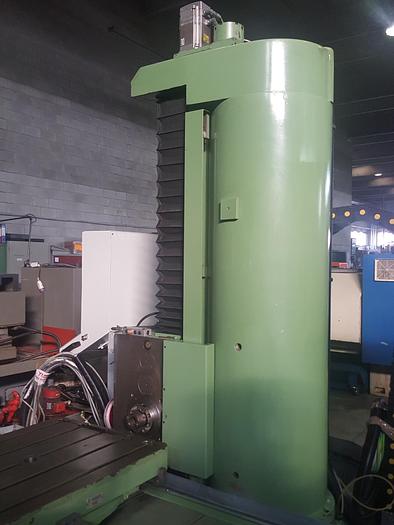

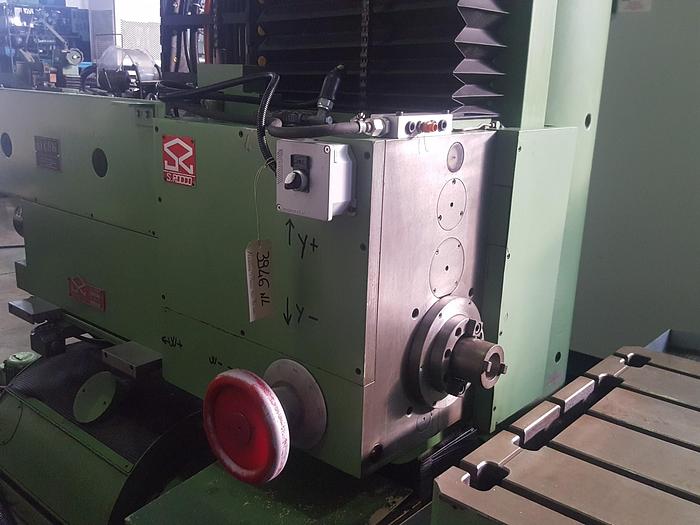

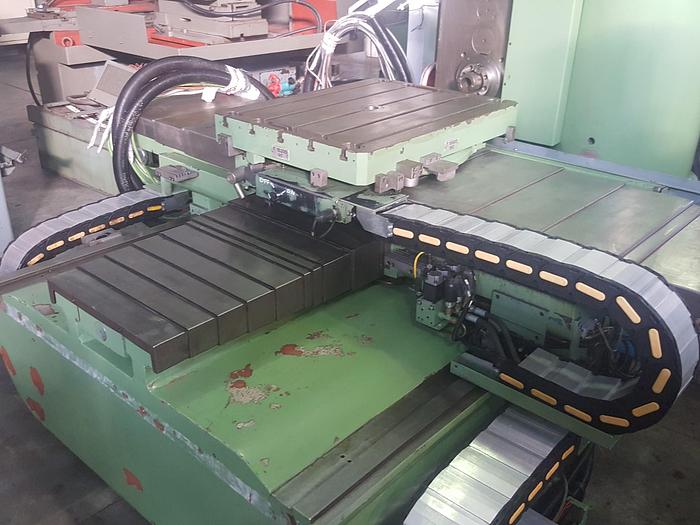

SAN ROCCO MEC 70 CNC TABLE TYPE BORER
No longer available
Technical specifications
| Manufacturer | SAN ROCCO |
| Model | MEC 70 CNC |
| Year | 1979 |
| Spindle | 70 mm. |
| Transversal travel | 1.100 mm. |
| Vertical travel | 900 mm. |
| Longitudinal travel | 750 mm. |
| Spindle travel | 400 mm. |
| Spindle taper | ISO 40 |
| Table | 810 x 610 mm. |
| Spindle power | 7,5 Kw. |
| Spindle speeds | 17 ÷ 1.480 Rpm. |
| Max. weight on table | 1.000 Kg. |
| Working feeds | 4 ÷ 1.000, mm/min. |
| Rapid feeds | 6.000, mm/min. |
| Total weight | 7 Tons. |

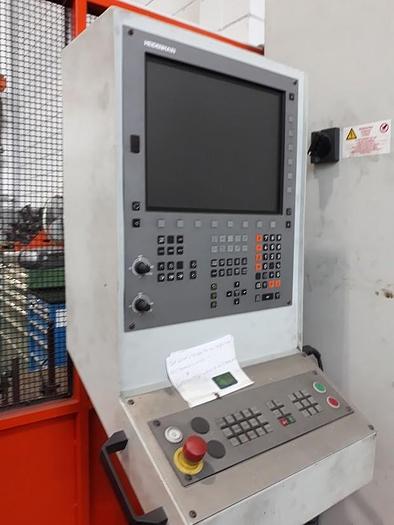

| Cnc | CNC HEIDEHAIN TNC 320 |
Features and Accessories
Retrofitted in 2009.
