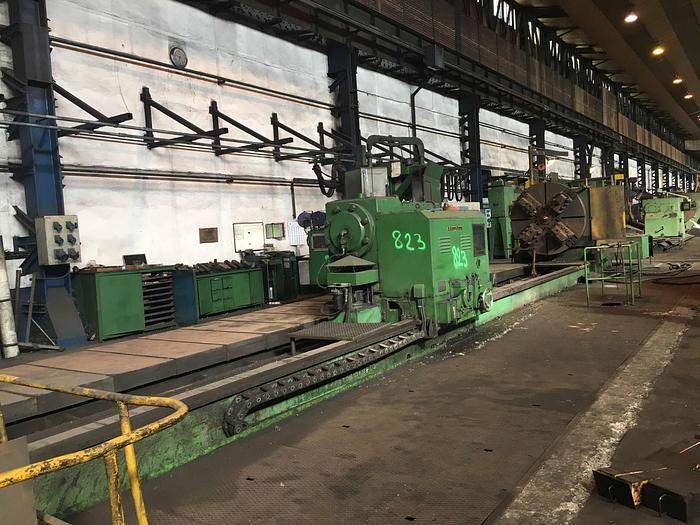

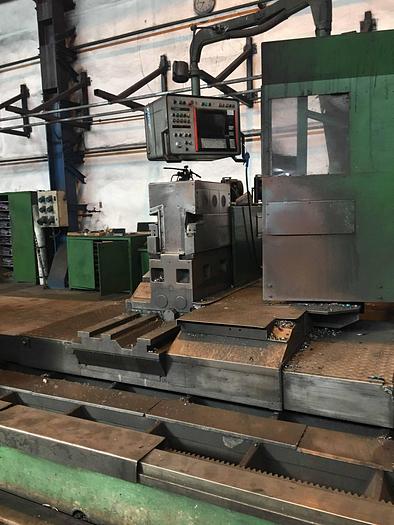

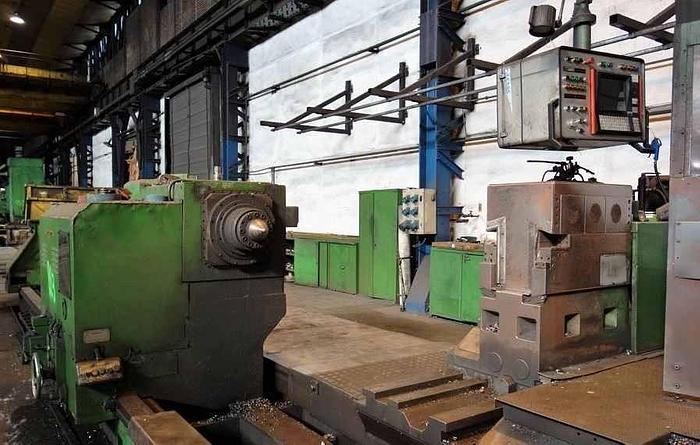

SOMUA 1700x10000 CNC THREE SLIDES ROLL LATHE
No longer available
Technical specifications
| Manufacturer | SOMUA |
| Model | 1700x10000 CNC |
| Year | 1985 |
| Centres height | 1.200 mm. |
| Centres distance | 10.000 mm. |
| Max. Ø over saddle | 1.700 mm. |
| Max. Ø over bed | 2.400 mm. |
| Bed width | 2.430 mm. |
| Max. weight on centres | 60 Tons. |
| Spindle power | 147 Kw. |
| Spindle speeds | 0,75 ÷ 140 Rpm. |
| Total Weight | 105 Tons. |
| Cnc | CNC NUM 1060 T |
Features and Accessories
Retrofitted in 1998.
Complete with:

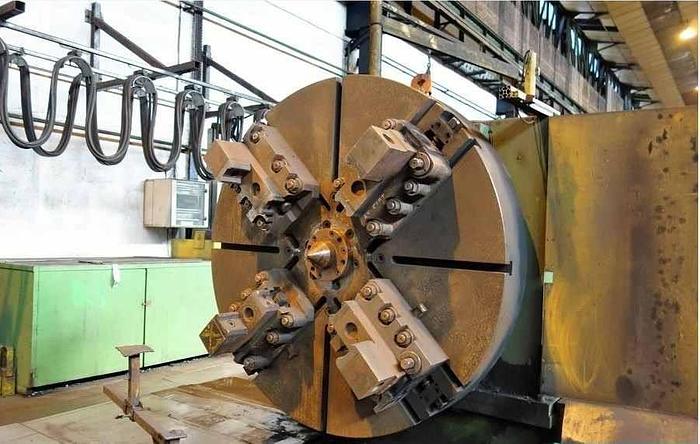

- four jaws table Ø 1.700 mm.
- n. 1 closed steady Ø 700 mm.
- chipconveyor
