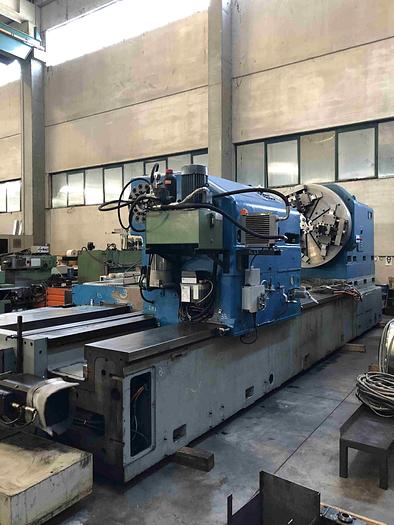

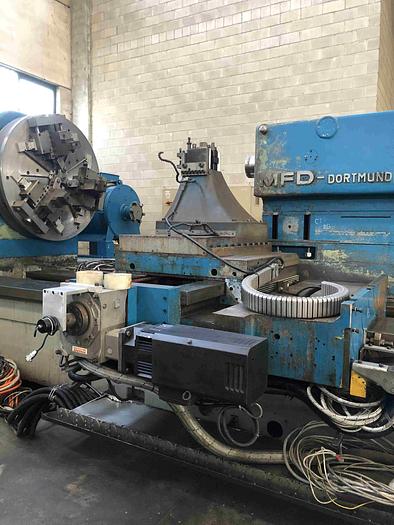

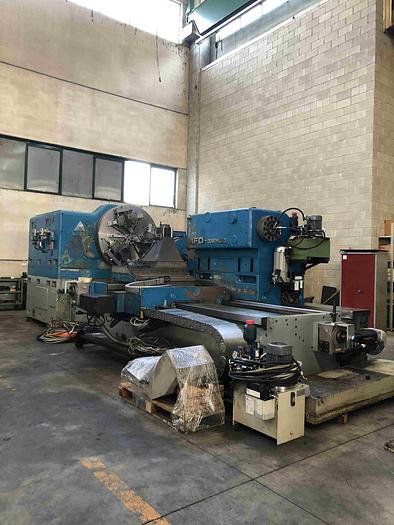

MFD DIII 85 K CNC THREE SLIDES BED LATHE
No longer available
Technical specifications
Manufacturer | MFD |
Model | DIII 85 K CNC |
Centres height | 1.050 mm. |
Centres distance | 3.500 mm. |
Max. Ø over saddle | 1.700 mm. |
Max. Ø over bed | 2.000 mm. |
Bed width | 2.000 mm. |
Max. weight on centres | 25 Tons. |
Spindle power | 110 Kw. |
Spindle speeds | 1,2 ÷ 180 Rpm. |
Tailstock nose | 420 mm. |
Tailstock nose travel | 250 mm. |
Total Weight | 38 Tons. |

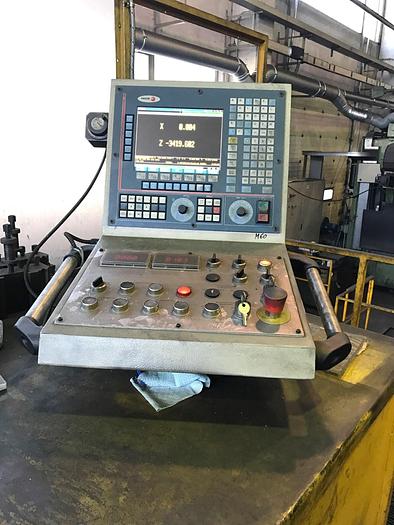

Cnc | CNC FAGOR 8055 T |
Features and Accessories
Retrofitted in 2006. Complete with: - n. 1 three jaws automatic self centering chuck Ø 1.450 mm. - n. 1 three jaws self centering chuck on the tailstock Ø 630 mm. - chipconveyor - levelling shoes
