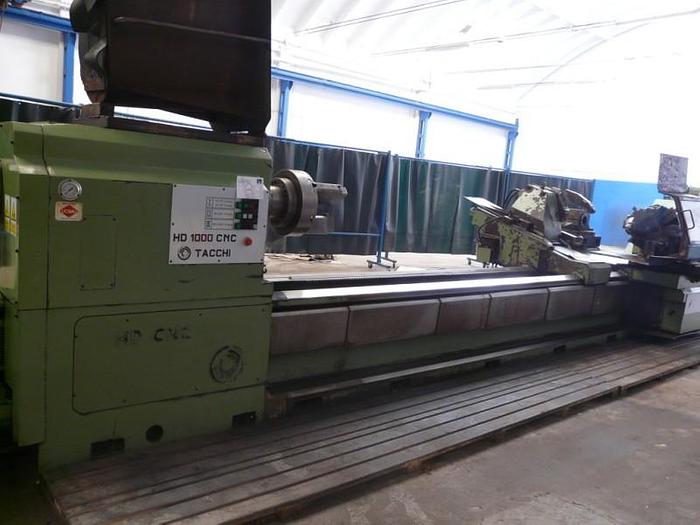

TACCHI HD 1000 x 5000 CNC LATHE
No longer available
Technical specifications
| Manufacturer | TACCHI |
| Model | HD 1000 CNC |
| Year | 1988 |
| Centres height | 500 mm. |
| Centres distance | 5.000,mm. |
| Max. Ø over saddle | 600 mm. |
| Max. Ø over bed | 1.000 mm. |
| Bed width | 720 mm. |
| Max. weight on centres | 8 Tons. |
| Spindle power | 44 Kw. |
| Spindle speeds | 3,7 ÷ 1.000 Rpm. |
| Spindle hole | 105 mm. |
| Tailstock nose | 140 mm. |
| Tailstock nose travel | 300 mm. |
| Working feeds | 0 ÷ 6.000 mm/min. |
| Total Weight | 17 Tons. |

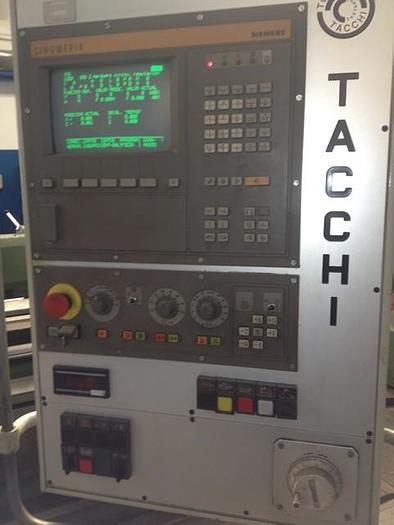

| Cnc | CNC SIEMENS 810 T |
Features and Accessories

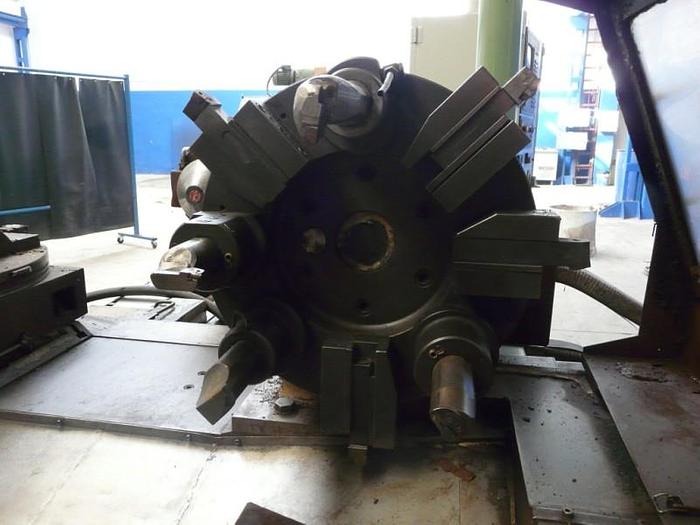

Complete with: - n. 1 three jaws automatic self centering chuck Ø 390 mm. - n. 1 x 8 positions automatic turret - n. 1 rotary head for long boring tools - n. 1 self centering steady - tooling
