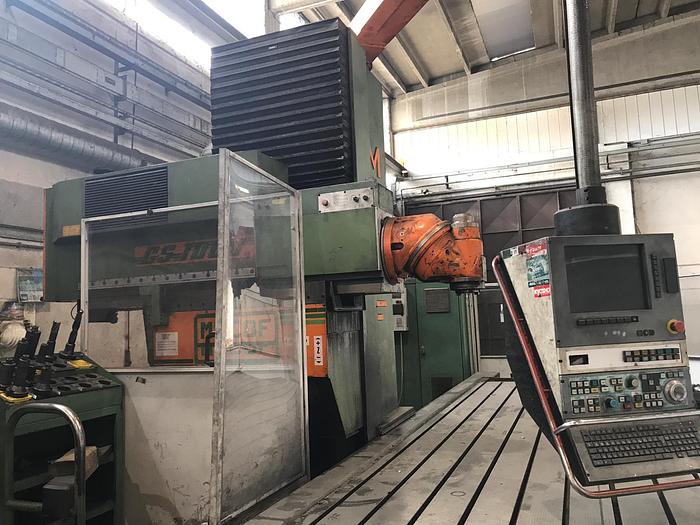

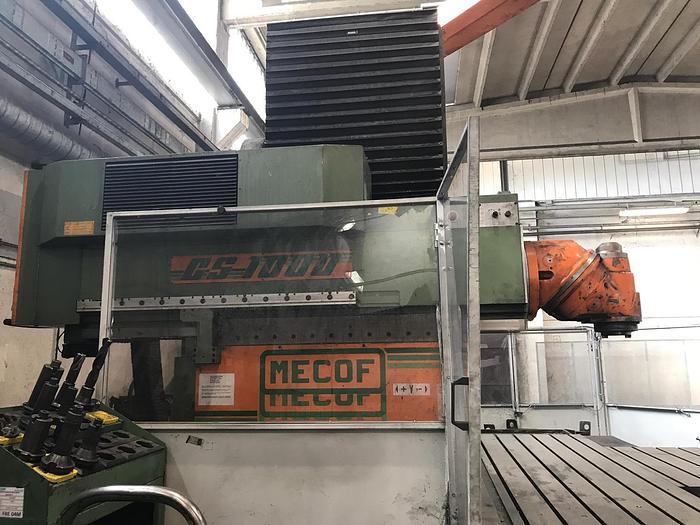

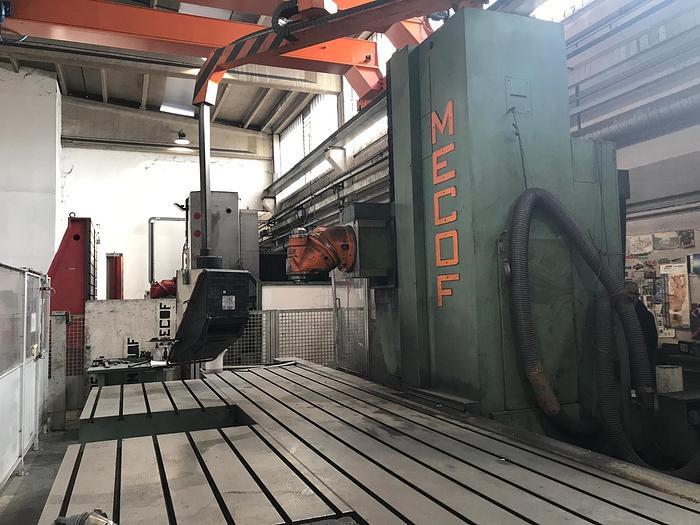

MECOF CS 1000/A CNC BED MILLING MACHINE
Technical specifications
Manufacturer | MECOF |
Model | CS 1000/A CNC |
Year | 1990 |
Transversal travel | 3.300 mm. |
Table | 5.000 x 1.060 mm. |
Vertical travel | 1.700 mm. |
RAM travel | 1.000 mm. |
Spindle taper | ISO 50 |
Spindle power | 40 Kw. |
Spindle speeds | 10 ÷ 2.000 Rpm. |
Working feeds | 4 ÷ 10.000 mm/min. |
Total weight | 30,7 Tons. |

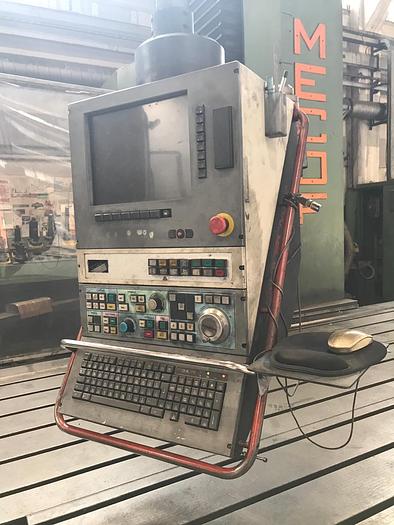

Cnc | CNC FIDIA 1120 |
Features and Accessories

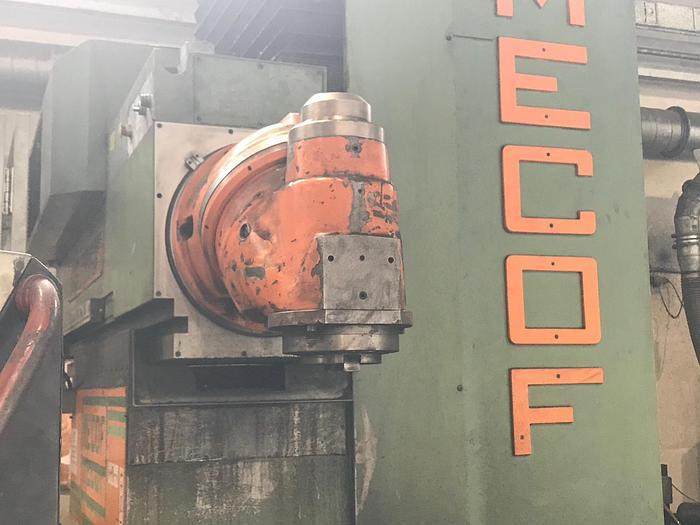

Complete with: - n. 1 universal indexed milling head: c axis 1°, a axis 3° - n. 1 table 1.500 x 1.000 mm.
