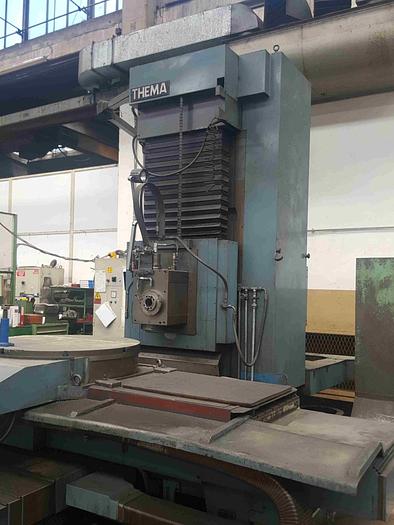

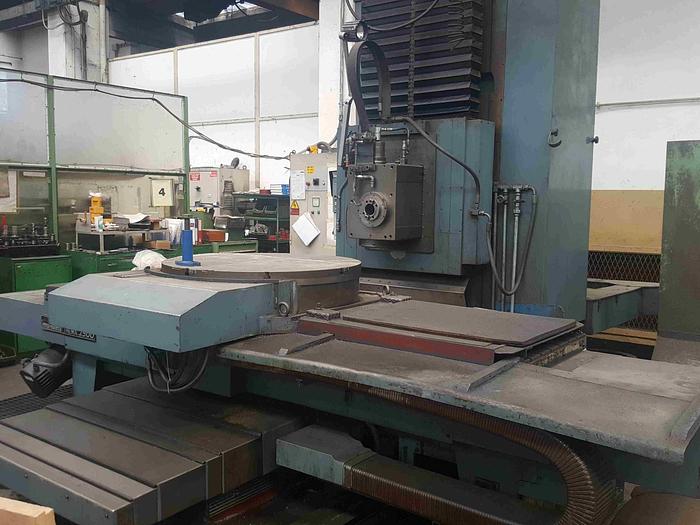

MANDELLI THEMA 2500 CNC BED MILLING MACHINE
No longer available
Technical specifications
| Manufacturer | MANDELLI |
| Model | THEMA 2500 CNC |
| Year | 1974 |
| Transversal travel | 2.500 mm. |
| Table | 2.700 x 850 mm. |
| Vertical travel | 1.350 mm. |
| Longitudinal travel | 1.200 mm. |
| RAM travel | 800 mm. |
| Spindle taper | 50 ISO |
| Spindle power | 18,4 Kw. |
| Spindle speeds | 18 ÷ 1.360 Rpm. |
| Max. weight on table | 5.000 kg. |
| Total weight | 23 Tons. |

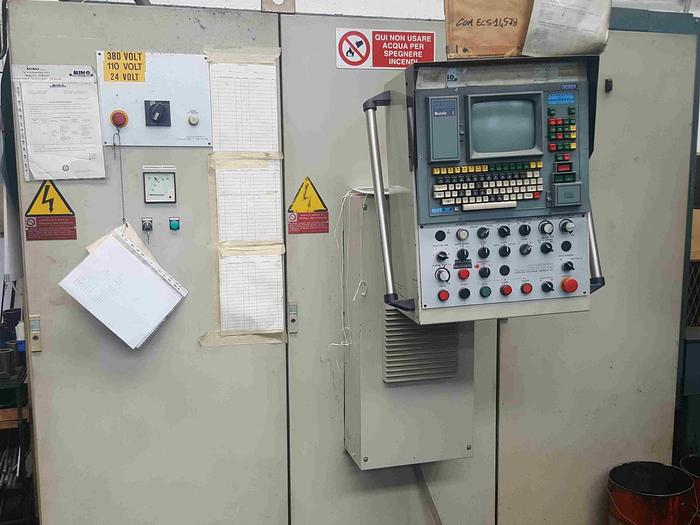

| Cnc | CNC ECS 2600 |
Features and Accessories
Retrofitted in 1995.
Complete with:

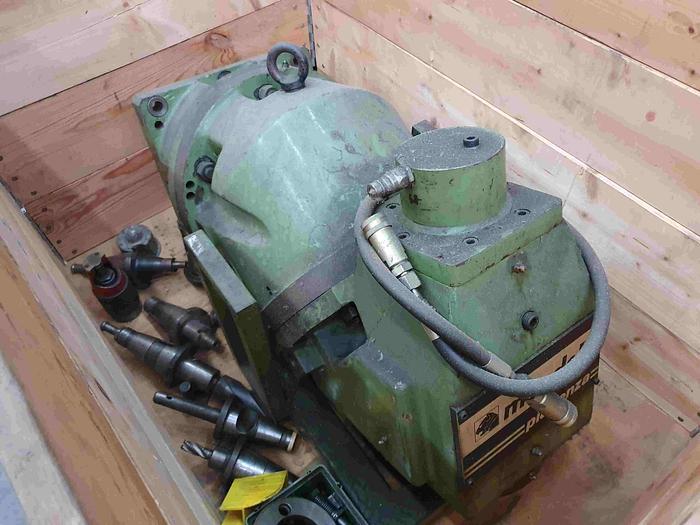

- n. 1 two spindles milling head
- n. 1 universal milling head

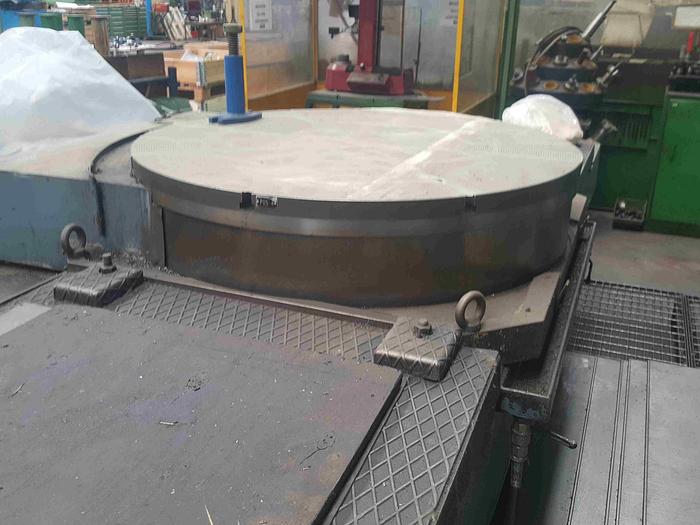

- rotary table ø 1.010 mm. - capacity 2.000 kg.
