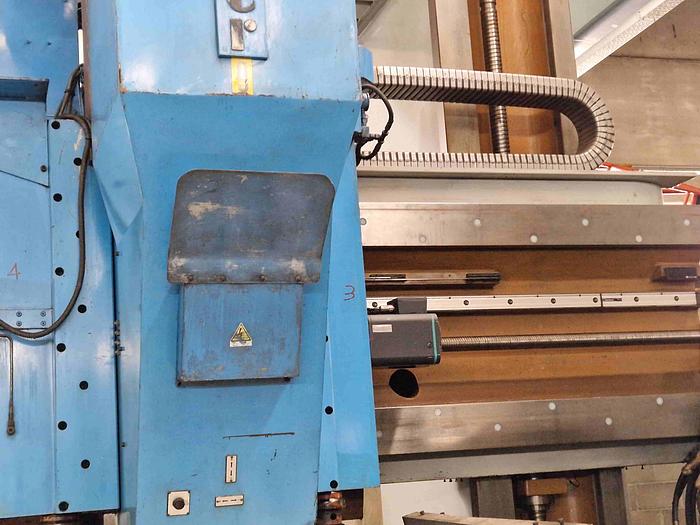

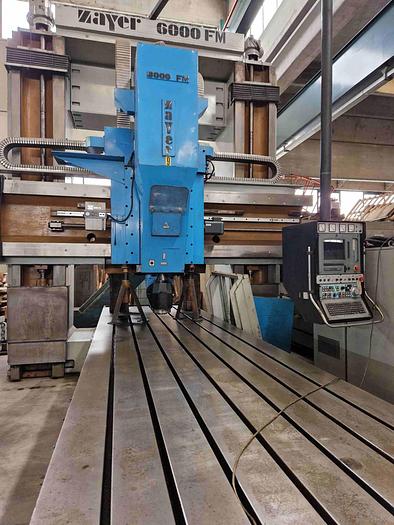

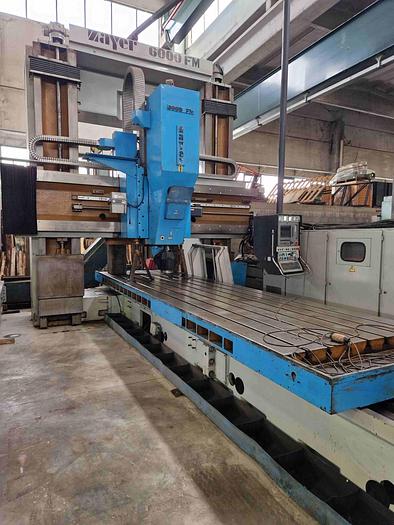

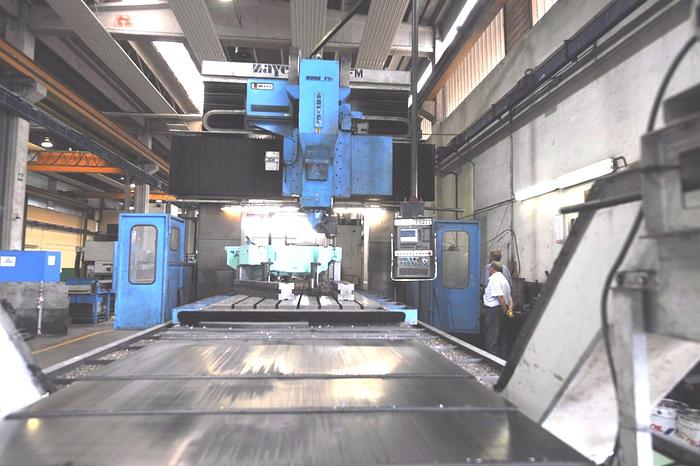

ZAYER FM 6000 CNC PORTAL MILLING MACHINE
No longer available
Technical specifications
Manufacturer | ZAYER |
Model | FM 6000 |
Year | 1994 |
Table | 6.000 x 1.600 mm. |
Passage between columns | 2.500 mm. |
Max. working height | 2.000 mm. |
Table travel | 6.000 mm. |
Transversal head travel | 3.200 mm. |
Vertical head travel | 1.000 mm. |
Crossrail travel | 1.800 mm. |
Spindle power | 42 Kw. |
Spindle speeds | 50 ÷ 6.000 Rpm. |
Spindle taper | ISO 50 |
Max. weight on table | 20 Tons. |
Total weight | 70 Tons. |

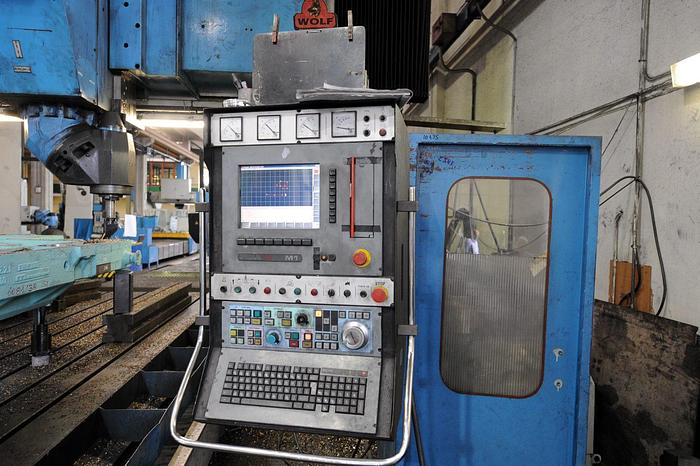

Cnc | CNC FIDIA C 11 |
Features and Accessories

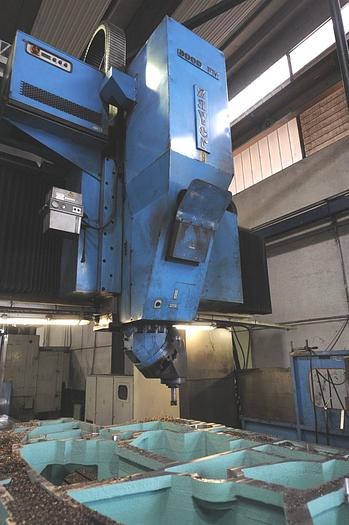

Complete with: - n. 1 universal indexed head: c axis 2,5°; a axis manual - double chipconveyor - levelling shoes
