JOBS LINX COMPACT 30 CNC GANTRY TYPE MILLING MACHINE
Sold
Technical specifications
| Manufacturer | JOBS |
| Model | LINX COMPACT 30 |
| Year | 2006 |

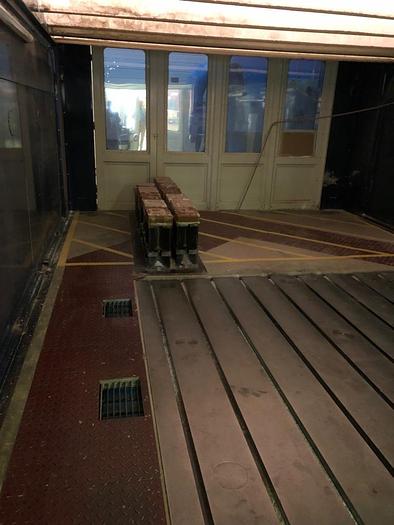

| Table | 4.000 x 2.500 mm. |
| Passage between columns | 3.915 mm. |
| Max. working height | 1.895 mm. |
| Portal travel | 4.000 mm. |
| Transversal head travel | 2.950 mm. |
| Vertical head travel | 1.500 mm. |
| Spindle power | 20 Kw. |
| Spindle speeds | 27.000 Rpm. |
| Spindle taper | HSK-A 63 |
| Max. weight on table | 5 x MQ. Tons. |
| Total weight | 40 Tons. |

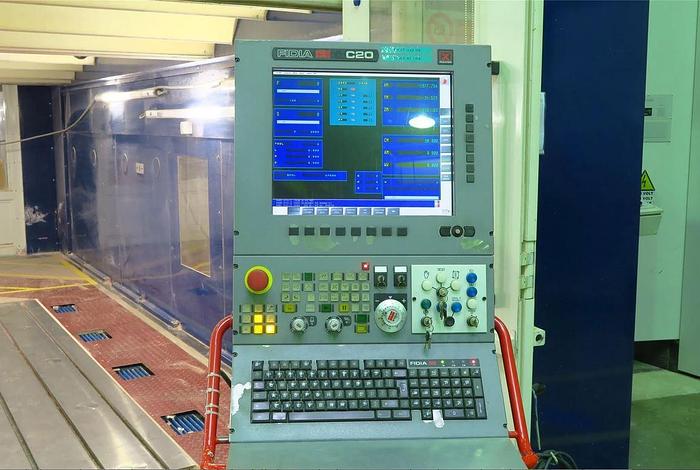

| Cnc | CNC FIDIA C 20 |
Features and Accessories

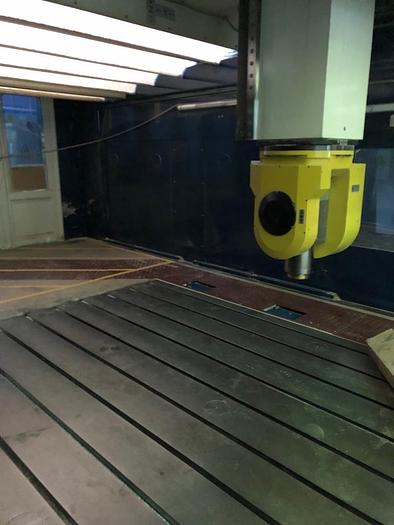

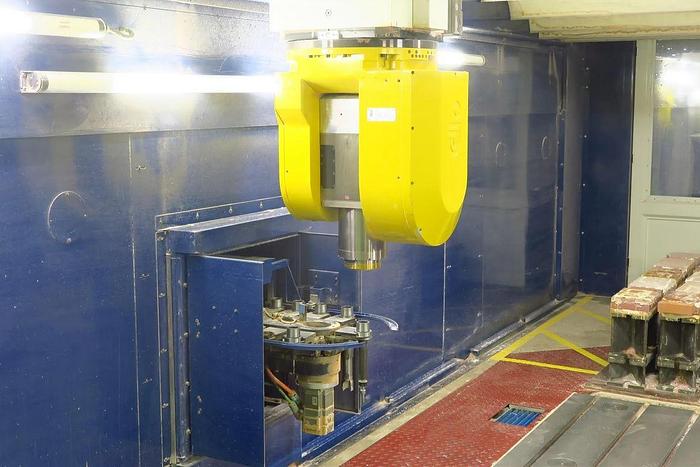

Complete with: - n. 1 continuos tilting head: c axis +/- 200°; a axis + 120° / -110° - 40 seats ATC - aspiration plant
