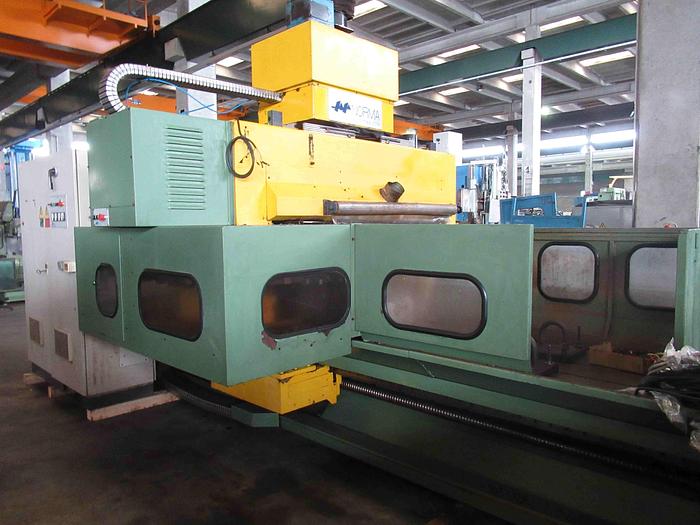

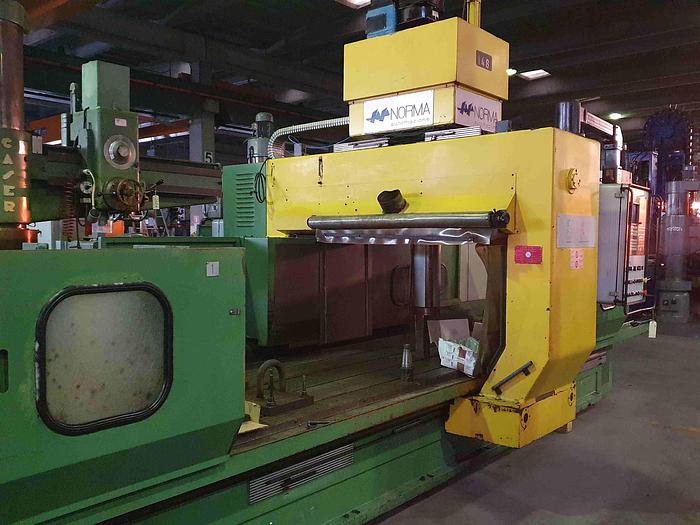

NORMA MULTINORMA 5000 10.40 GANTRY TYPE MILLING MACHINE
No longer available
Technical specifications
Manufacturer | NORMA |
Model | MULTINORMA 5000 10.40 |
Year | 1993 |

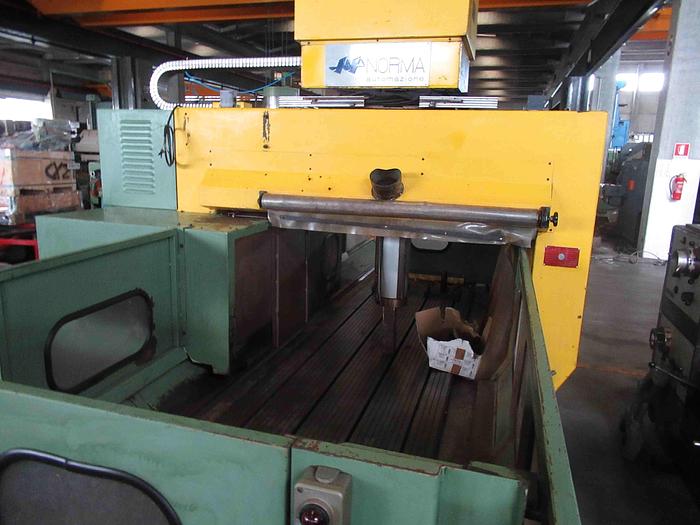

Table | 4.100 x 970 mm. |
Passage between columns | 1.800 mm. |
Max. working height | 800 mm. |
Portal travel | 4.000 mm. |
Transversal head travel | 1.000 mm. |
Vertical head travel | 500 mm. |
Spindle power | 14 Kw. |
Spindle speeds | 0 ÷ 2.600 Rpm. |
Spindle taper | ISO 50 |
Total weight | 10 Tons. |

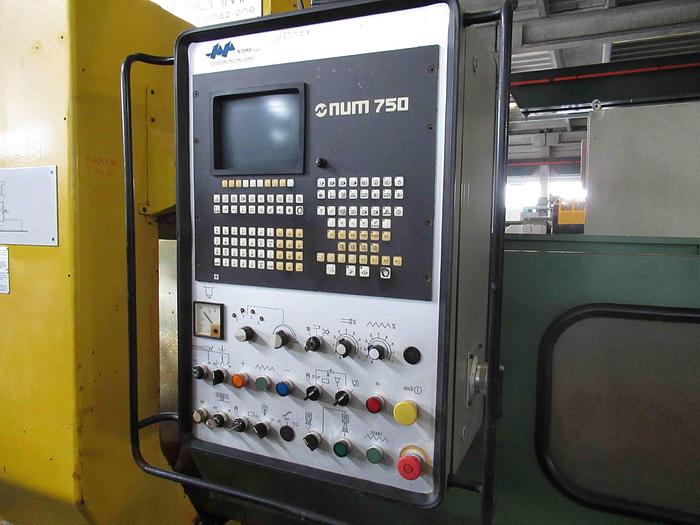

Cnc | CNC NUM 750 F |
Features and Accessories
Complete with:
- 25 seats ATC
- tool-holders
