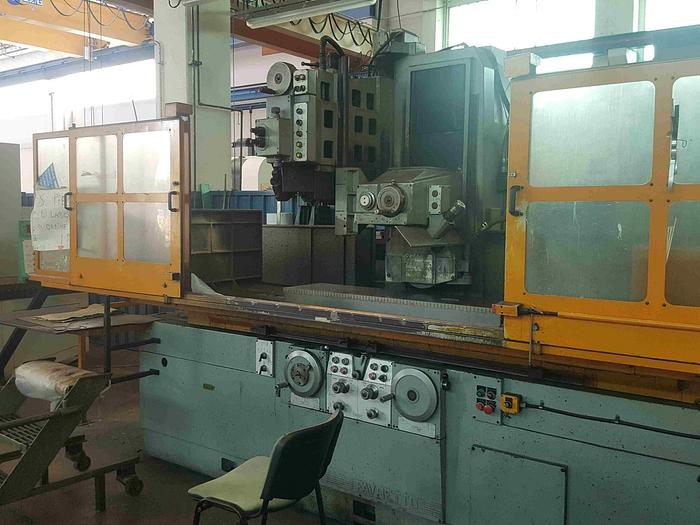

FAVRETTO TC 160-S SURFACE GRINDER
No longer available
Technical specifications
| Manufacturer | FAVRETTO |
| Model | TC 160-S |
| Year | 1970 |
| Table | 1.600 x 500 mm. |
| Max. working height | 450 mm. |
| Wheel Ø | 406 mm. |
| Max. grinding capacity | 1.600 x 575 mm. |
| Wheel motor power | 11 Kw. |
| Wheel speeds | 2 ÷ 35 m/sec. |
| Total weight | 7,5 Tons. |
Features and Accessories
Complete with:

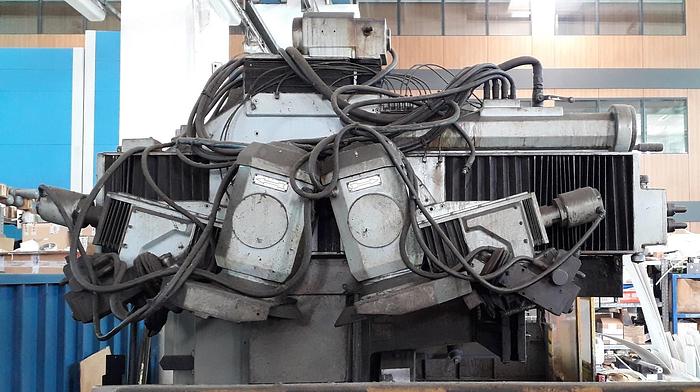

- crossrail with n. 2 universal heads:; transversal travels 985 mm.; wheels dimensions 356 x 40 x 102 mm.; wheels motor power 6 hp.; wheels swivelling +/- 30°

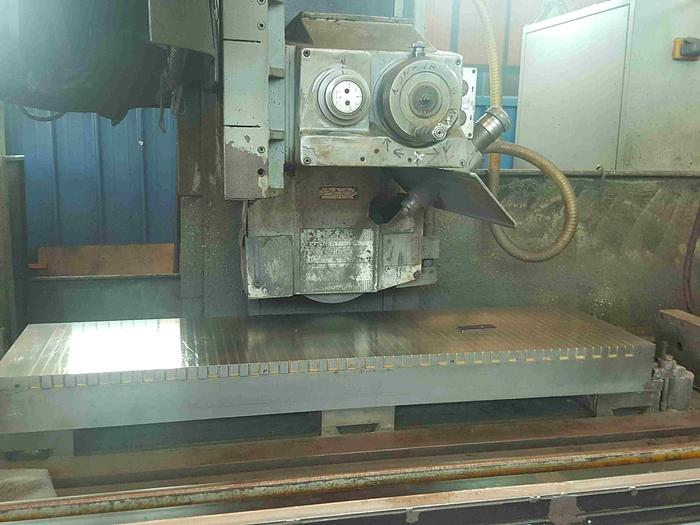

- magnetic table 1.300 x 350 mm.
- wheel dresser
- safety protections
