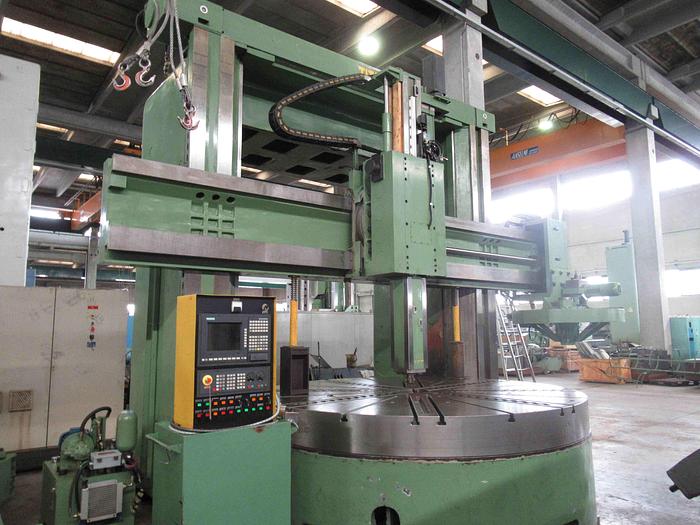

TITAN SC 33 CNC VERTICAL BORER
No longer available
Technical specifications
Manufacturer | TITAN |
Model | SC 33 CNC |
Year | 2000 |

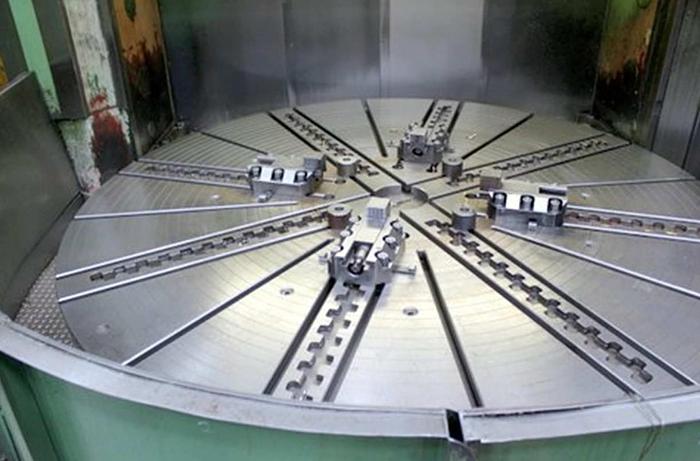

Table Ø | 3.000 mm. |
Max. working Ø | 3.300 mm. |
Spindle power | 60 Kw. |
Max. working height | 1.950 mm. |
Max. weight on table | 20 Tons. |
Table speeds | 1 ÷ 150 Rpm. |

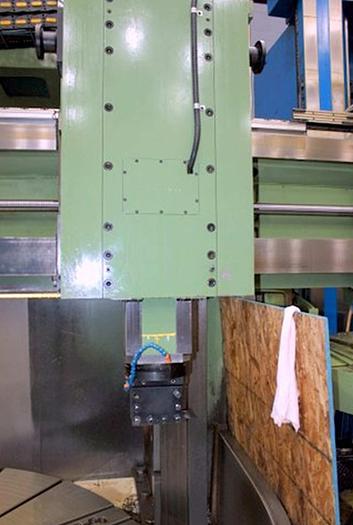

RAM type vertical tool travel | 1.115 mm. |
Max. swivelling angle | 30 ° |
RAM size | 250 x 250 mm. |
Working feeds | 1 ÷ 4.000 mm/min. |
Rapid feeds | 6.000 mm/min. |
Total weight | 48 Tons. |

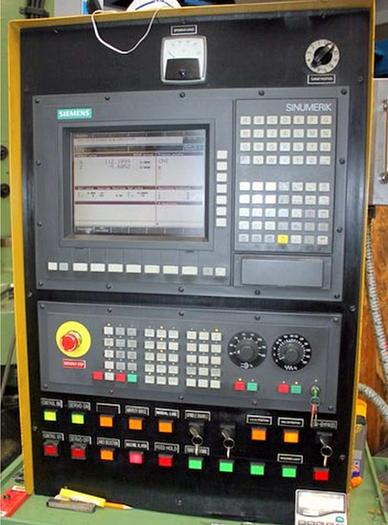

Cnc | CNC SIEMENS 840 C |
Features and Accessories
Complete with: - n. 1 x 12 seats ATC
