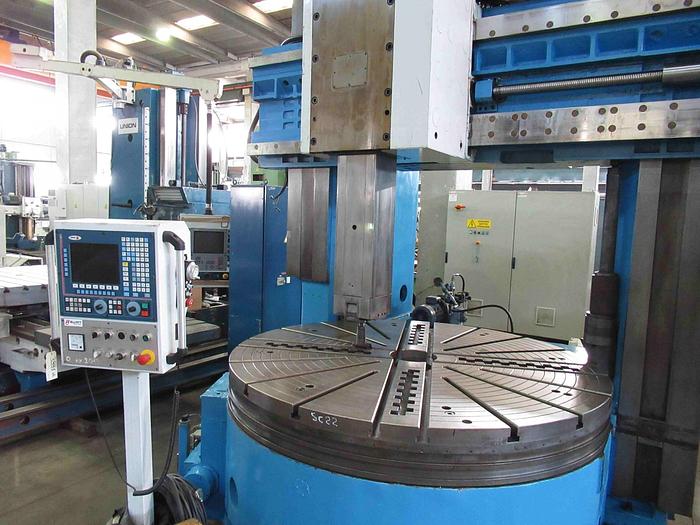

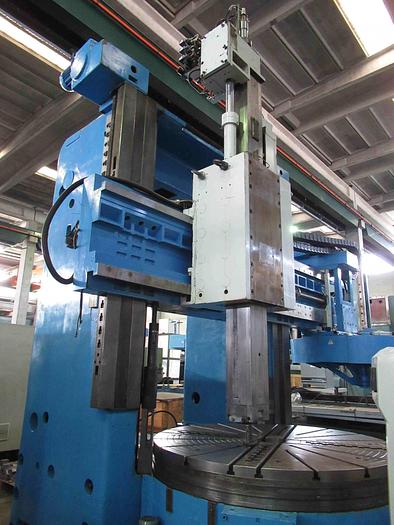

TITAN ROMAN SC 22 CNC MS-F VERTICAL BORER
No longer available
Technical specifications
| Manufacturer | TITAN/ROMAN |
| Model | SC 22 MS-F CNC |
| Year | 1990 |
| Table Ø | 2.000 mm. |
| Max. working Ø | 2.150 mm. |
| Spindle power | 60 Kw. |
| Max. working height | 1.650 mm. |
| Max. weight on table | 25 Tons. |
| Table speeds | 1,43 ÷ 143 Rpm. |

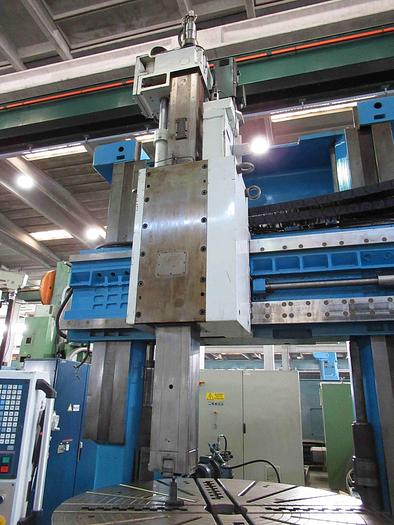

| RAM type vertical tool travel | 1.200 mm. |
| RAM size | 250 x 250 mm. |
| Milling motor power | 17 Kw. |
| Milling speeds | 1 ÷ 1.000 Rpm. |
| Total weight | 40 Tons. |

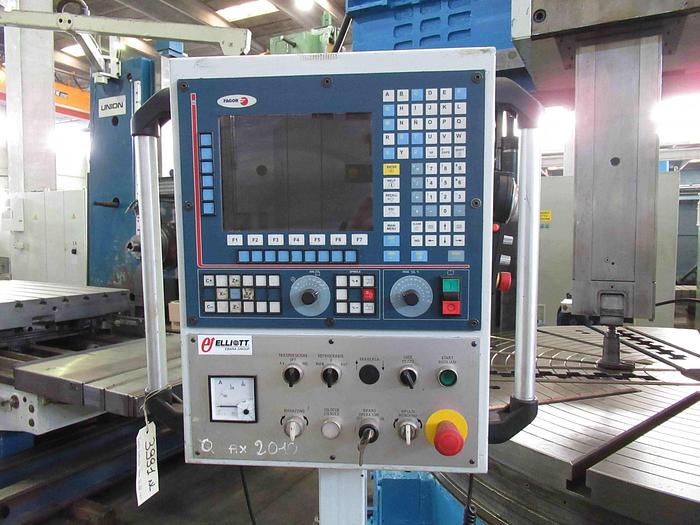

| Cnc | CNC FAGOR 8055 |
Features and Accessories

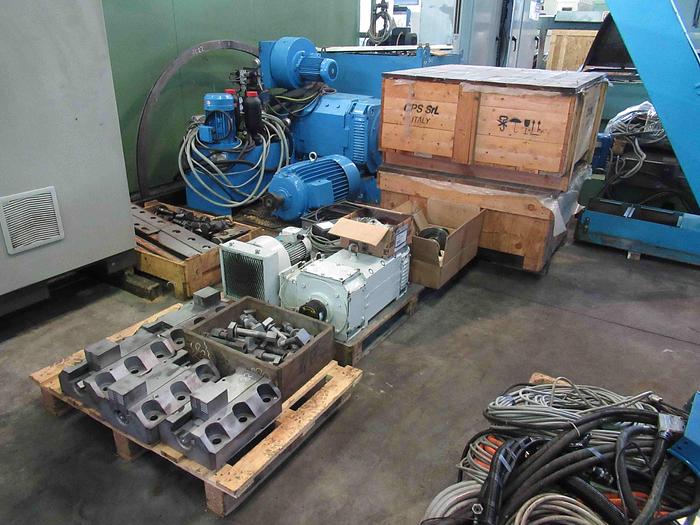

Retrofitted in 2005. Complete with: - ”c” axis

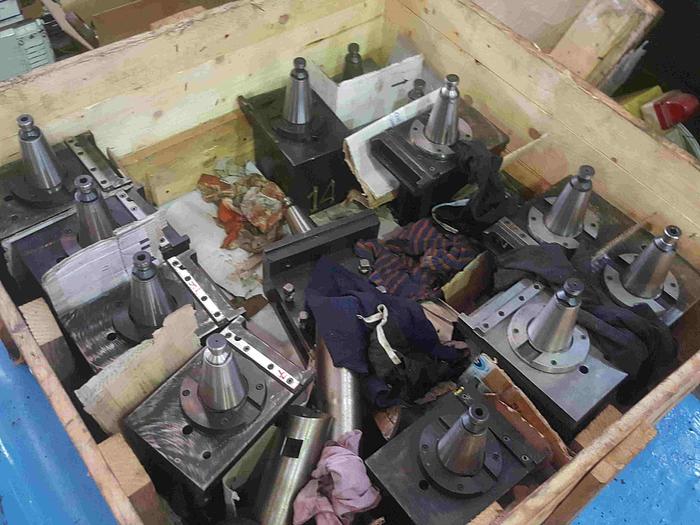

- live tools - 16 seats ATC - chipconveyor - tool-holders - safety protections
