LAZZATI HB 150 CNC "T" TYPE BORER
No longer available
Technical specifications
| Manufacturer | LAZZATI |
| Model | HB 150 T CNC |
| Year | 2015 |
| Spindle | 150 mm. |
| Tranversal travel | 4.000 mm. |
| Vertical travel | 2.600 mm. |
| Longitudianl travel | 2.300 mm. |
| Spindle travel | 900 mm. |
| Spindle taper | ISO 50 |

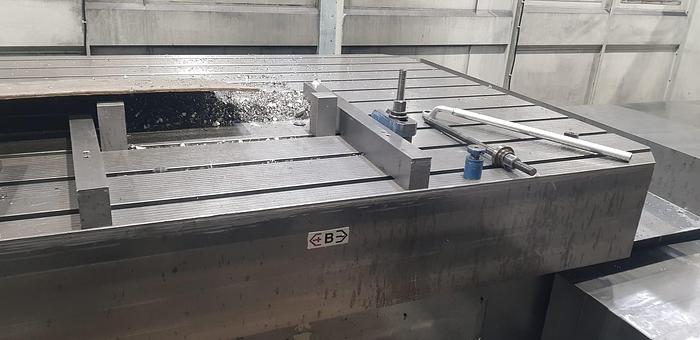

| Table | 2.500 x 2.200 mm. |
| Max. weight on table | 30 Tons. |
| Spindle motor power | 65 Kw. |
| Spindle speeds | 0 ÷ 3.250 mm. |

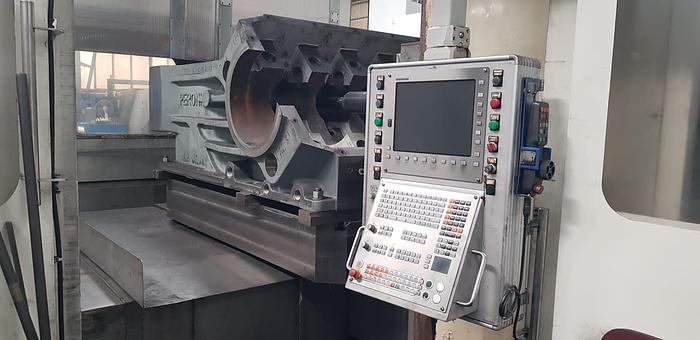

| Cnc | HEIDENHAIN TNC 530 |
| Total weight | 43 Tons. |
Features and Accessories
Complete with:
- 60 seats atc
- universal indexed milling head: A axis 1°, B axis 1°
- boring support
- head changer
- high pression internal/external cooling
- chipconveyor
