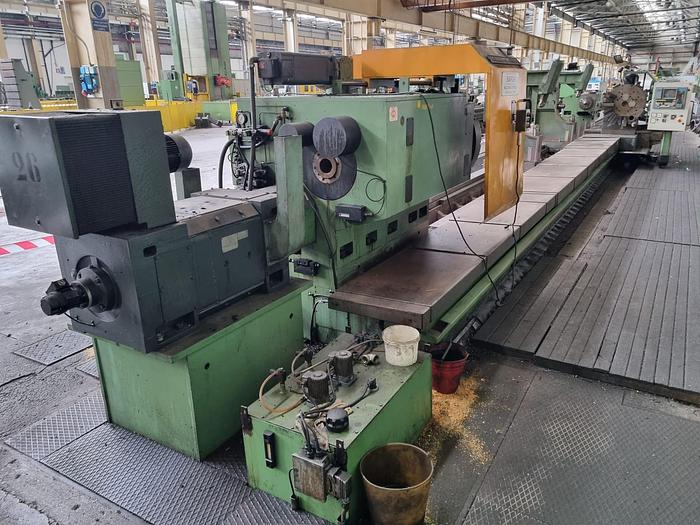

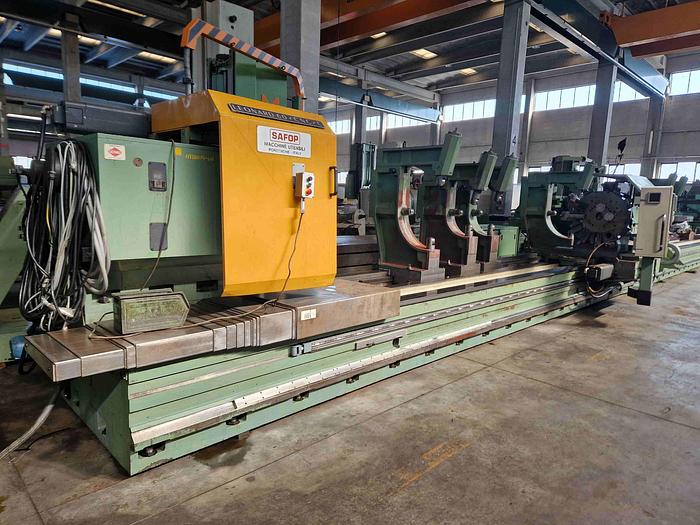

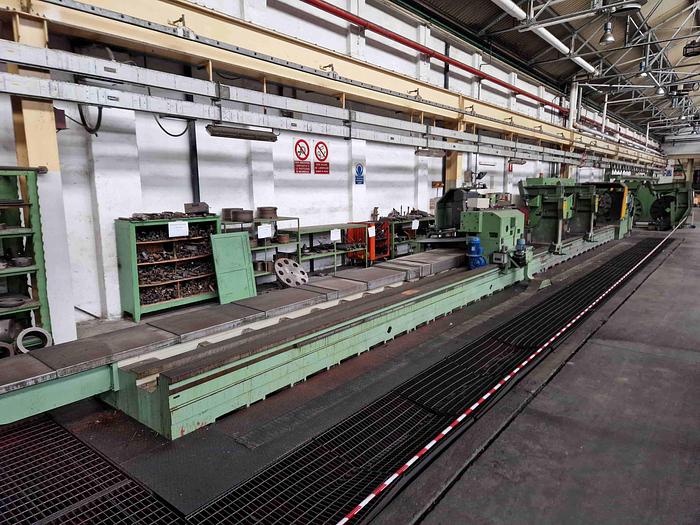

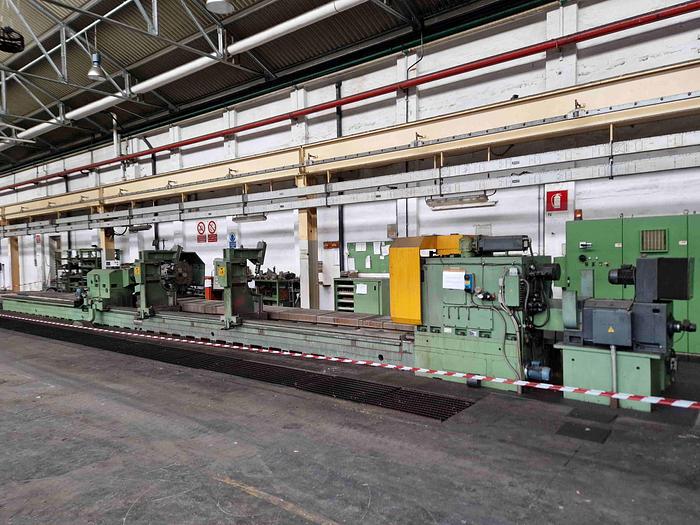

SAFOP-LEONARD 60/1050 THREE SLIDES BED CNC LATHE
No longer available
Technical specifications
Manufacturer | SAFOP |
Model | LEONARD 60/1050 CNC |
Year | 1990 |
Centres height | 700 mm. |
Centres distance | 14.000 mm. |
Max. Ø over saddle | 1.050 mm. |
Max. Ø over bed | 1.300 mm. |
Bed width | 1.300 mm. |
Max. weight between centers | 18 Tons. |
Spindle power | 80 Kw. |
Spindle speeds | 5 ÷ 600 Rpm. |
Tailstock nose | 230 mm. |
Tailstock nose travel | 300 mm. |
Cnc | CNC ECS 2303 |
Total weight | 52 Tons. |
Features and Accessories
Complete with:
- “c” axis
- motorised tools for axial and radial milling:10 kw., 10 ÷ 1.000 rpm.

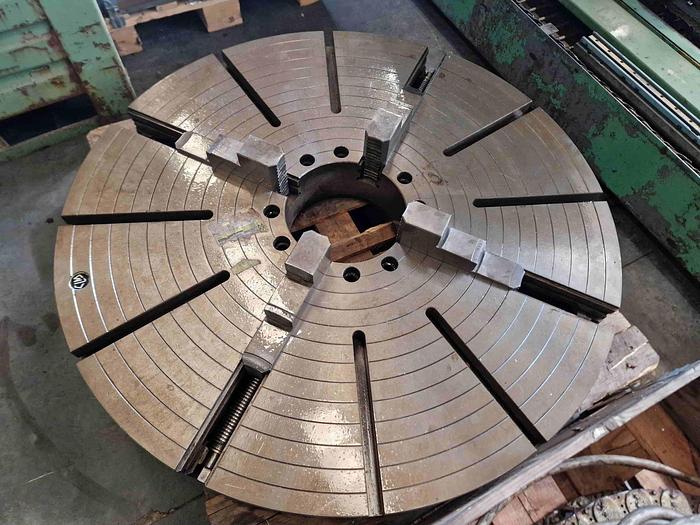

- n. 1 four jaws table Ø 1.200 mm.
- n. 1 four jaws table Æ 800 mm.

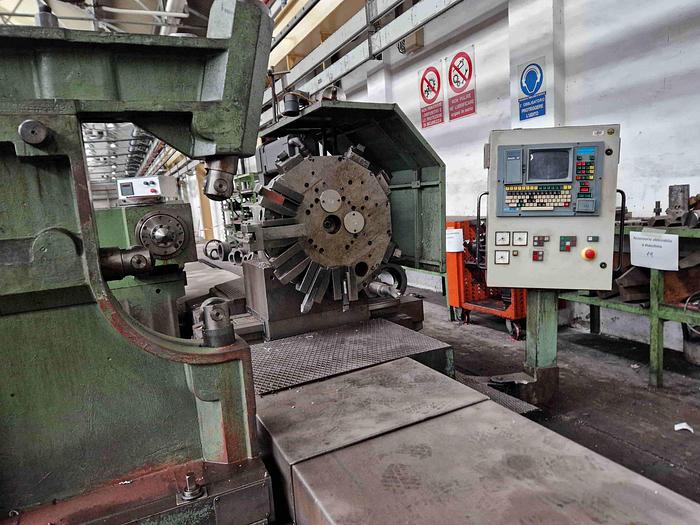

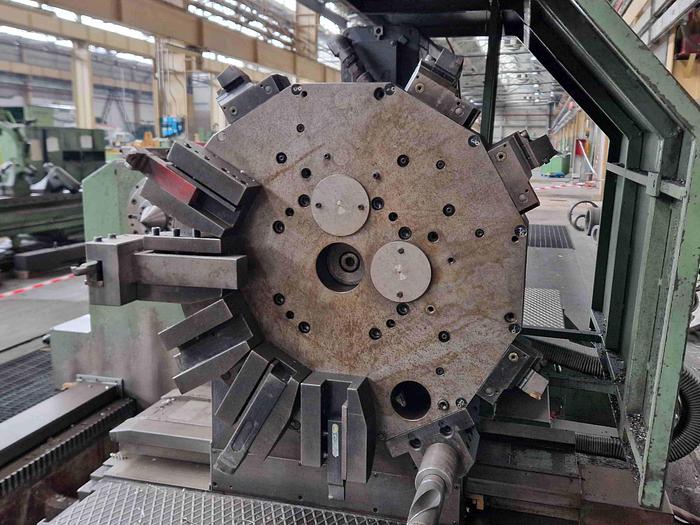

- n. 1 x 12 positions automatic turret

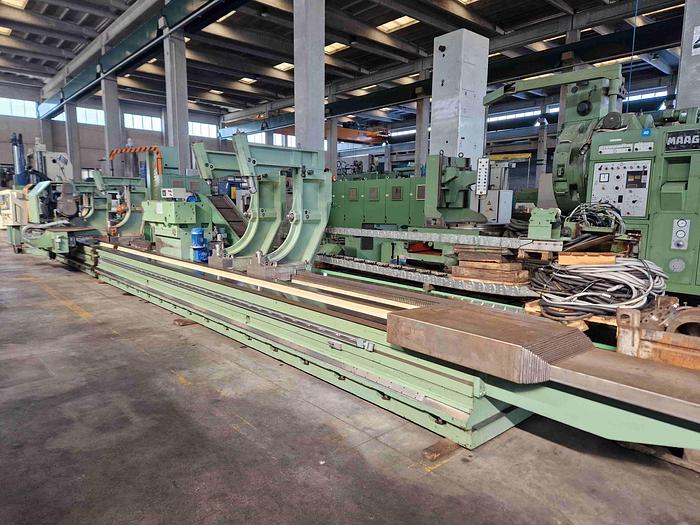

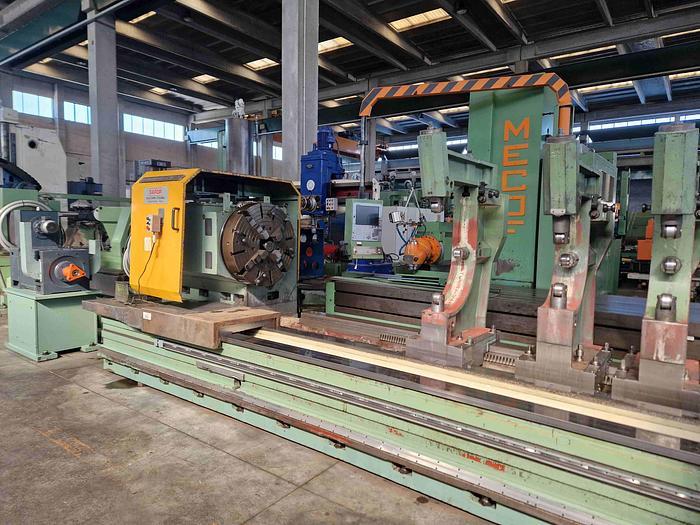

- n. 6 open steadies

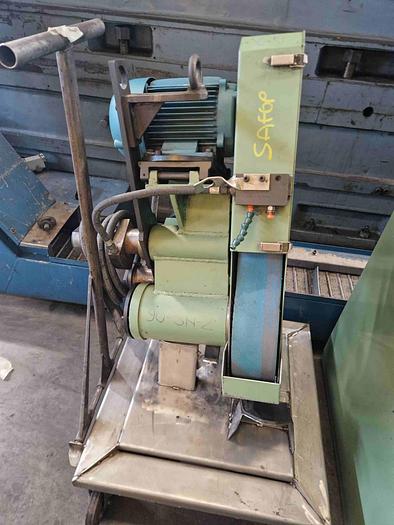

- n. 1 belting unit for Ø 400 ÷ 1.050 mm.
- chipconveyor
