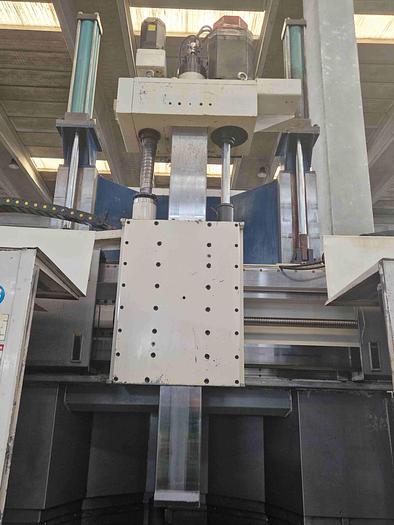

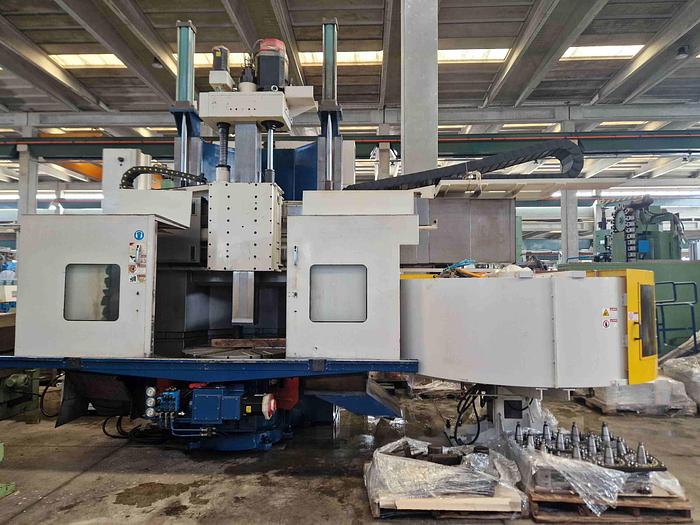

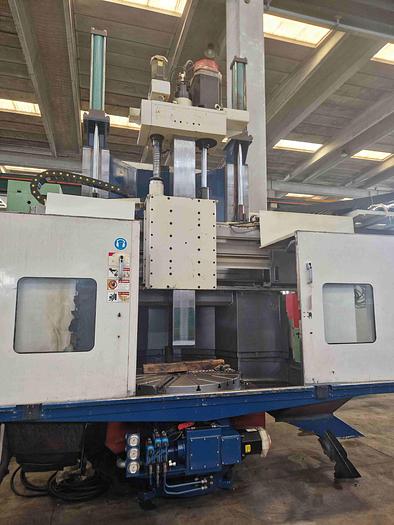

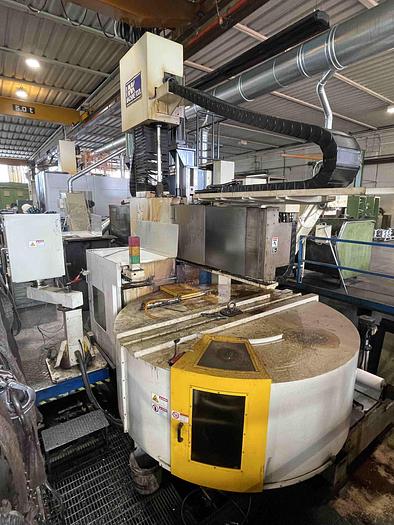

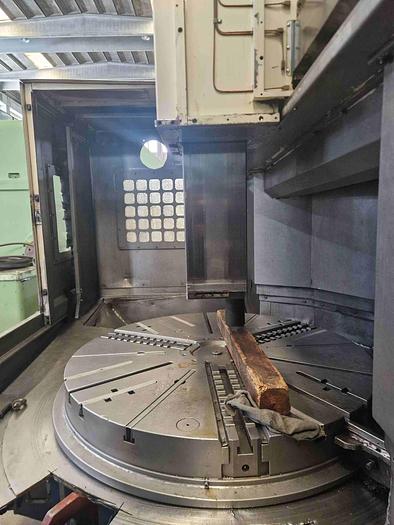

HNK 12/16 CNC VERTICAL BORER
Technical specifications
Manufacturer | HNK |
Model | VTC 12/16 CNC |
Year | 2007 |
Table Ø | 1.250 mm. |
Max. working Ø | 1.600 mm. |
Spindle power | 45 Kw. |
Max. working height | 1.200 mm. |
Max. weight on table | 8 Tons. |
Table speeds | 1 ÷ 360 Rpm. |
RAM type vertical tool travel | 900 mm. |
RAM size | 240 x 240 mm. |
Milling motor power | 15 Kg. |
Milling speeds | 15 ÷ 1.500 Rpm. |
Cnc | CNC FANUC 18i |
Total weight | 23 Tons. |
Features and Accessories
Complete with:
- "c" axis
- self centering chuck Ø 1.200 mm.
- 16 seats atc
- chipconveyor
- full covered
