INNSE ARIES CF-S-WZ CNC FLOOR TYPE BORER
No longer available
Technical specifications
| Manufacturer | INNSE |
| Model | ARIES CF-S-WZ CNC |
| Year | 1989 |
| Spindle | 150 mm. |
| Tranversal travel | 10.300 mm. |
| Vertical travel | 3.000 mm. |
| RAM travel | 1.000 mm. |
| Spindle travel | 800 mm. |
| Spindle taper | ISO 50 |
| Spindle motor power | 49 Kw. |
| Spindle speeds | 7 ÷ 2.170 Rpm. |
| RAM section | 420 x 500 mm. |

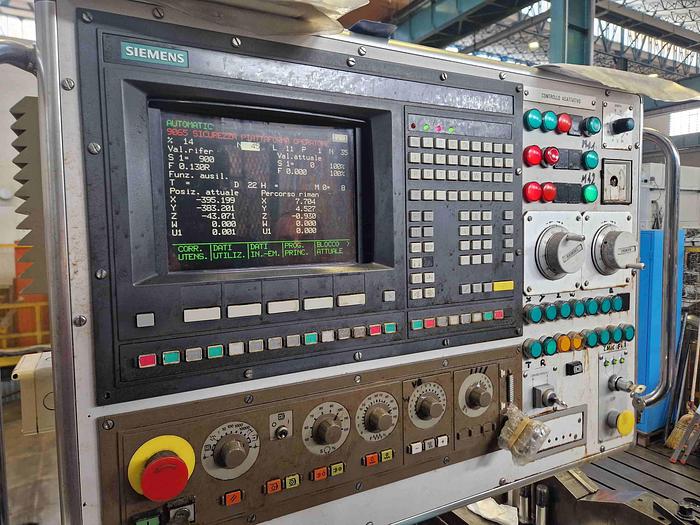

| Cnc | CNC Siemens 850 |
Features and Accessories
Complete with:

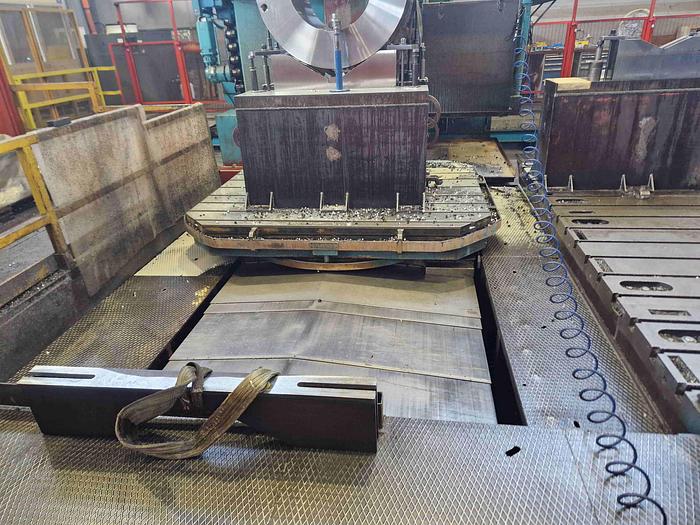

- Innse PMFC 1200 cnc rotary tables: 2.500x2.000; 25 tons.; travel 1.500 mm.
- 60 seats atc
- n. 1 universal indexed milling head mod. TU-AR 25/S: "c" and "A" axis continuos; 25 kw.; 2.000 rpm.
- n. 1 vertical indexed milling head mod. TE-AR 15/S: "c" AXIS 1°; 15 kw.; 2.000 rpm.
- n. 1 D' Andrea U-tronic 500 cnc facing head
- chipconveyor
