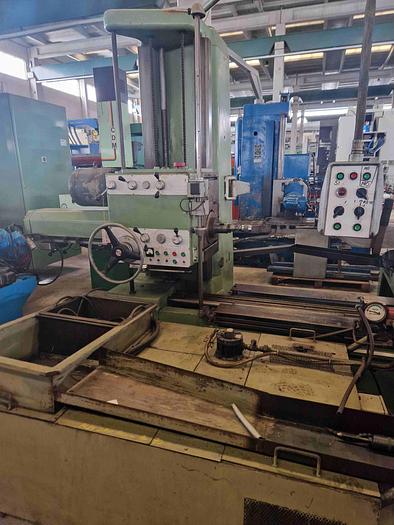

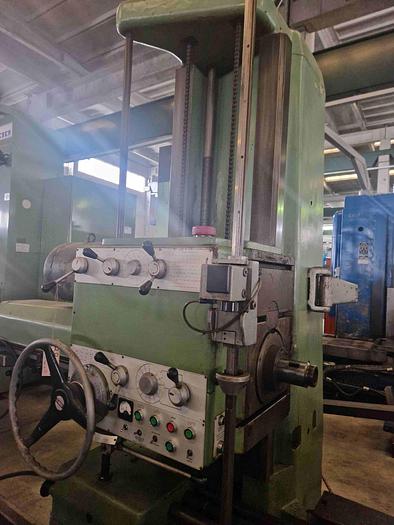

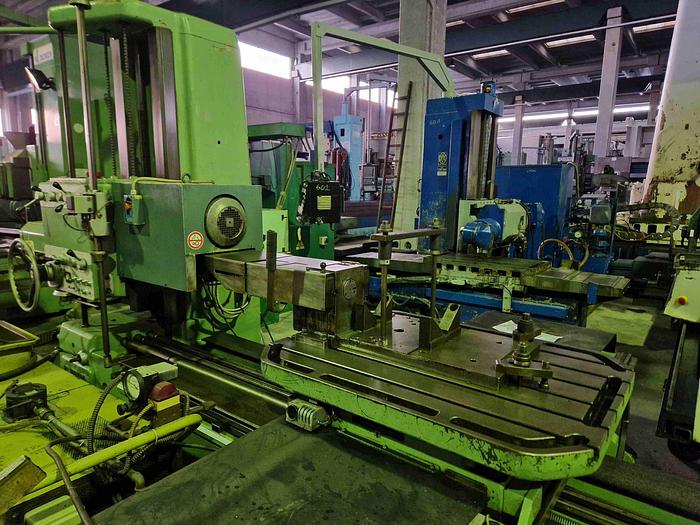

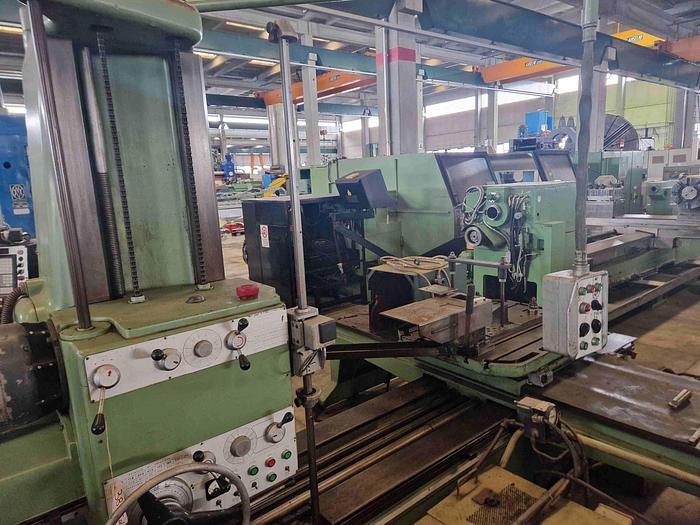

SAN ROCCO AL 76 TABLE TYPE BORER
Technical specifications
| Manufacturer | SAN ROCCO |
| Model | AL 76 |
| Spindle | 76 mm. |
| Tranversal travel | 2.030 mm. |
| Vertical travel | 1.000 mm. |
| Longitudianl travel | 1.800 mm. |
| Spindle travel | 660 mm. |
| Spindle taper | CM 4 |

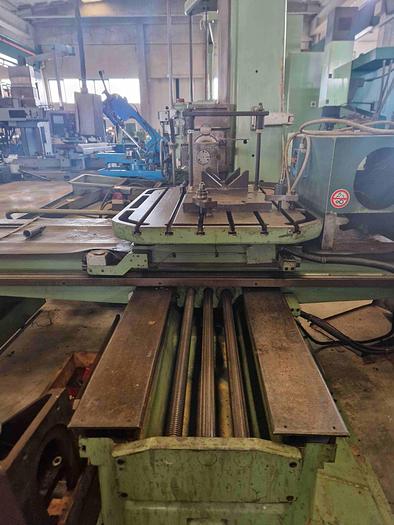

| Table | 1.120 x 870 mm. |
| Spindle motor power | 9 Hp. |
| Spindle speeds | N. 16; 8,5 - 1.500 Rpm. |
| Total weight | 10.000 Kg. |
Features and Accessories
Complete with:

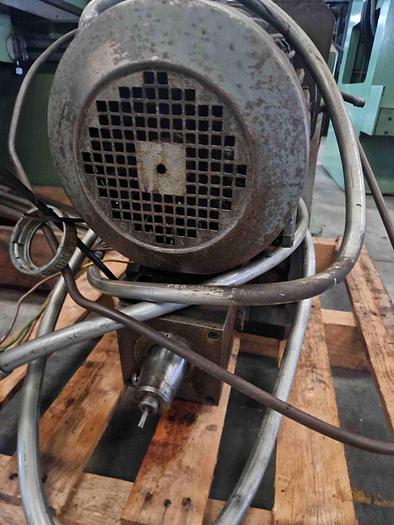

- deep hole drilling head max. diam. 10 mm. x 600 mm. lenght; 5,5 hp.
- high pressure pump with tank

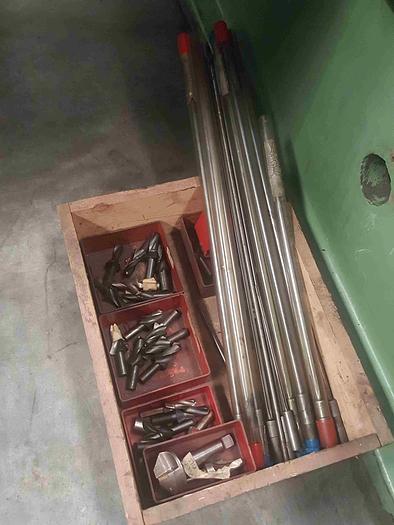

- deep hole drilling tools
