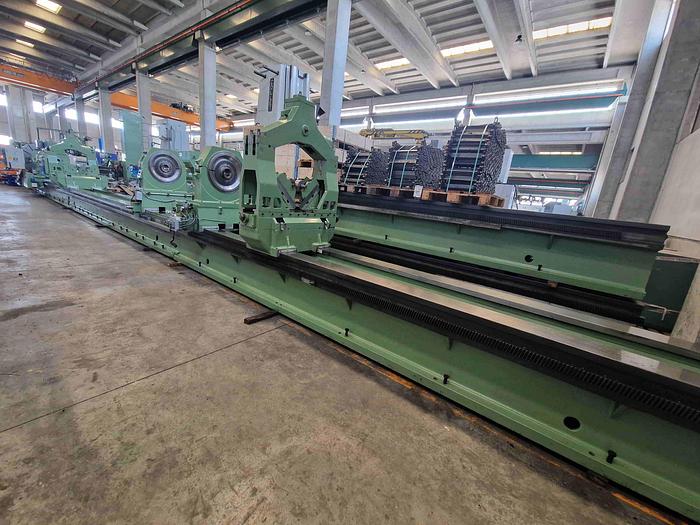

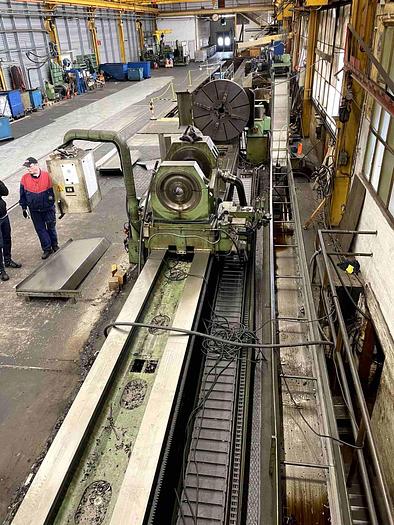

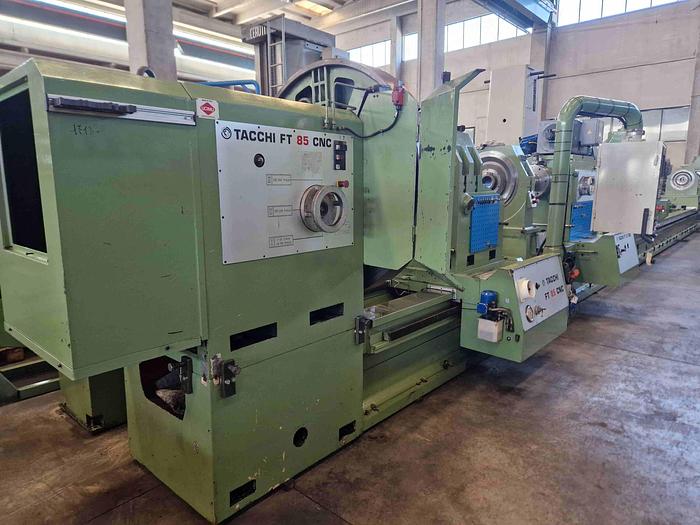

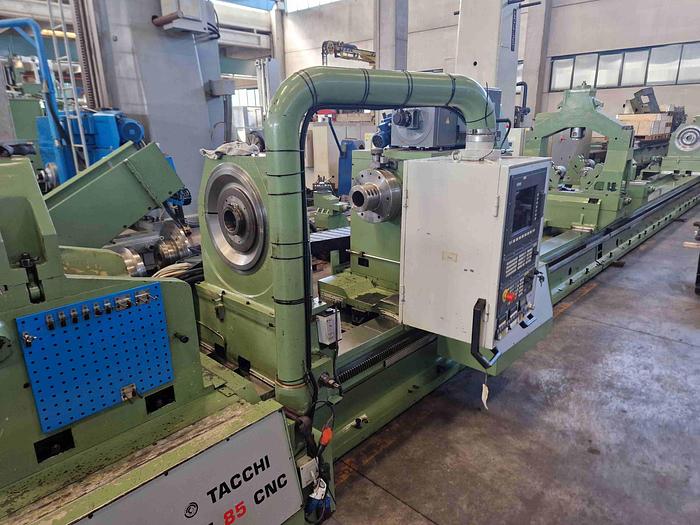

TACCHI FT 85 CNC DEEP HOLES DRILLING MACHINE
No longer available
Technical specifications
| Manufacturer | TACCHI |
| Model | FT 85 CNC |
| Year | 1997 |
| Max. working Ø | 1.700 mm. |
| Max. working lenght | 16.000 mm. |
| Spindle power | 115 Kw. |
| Spindle speeds | 4 ÷ 500 mm. |
| Spindle hole Ø | 160 mm. |

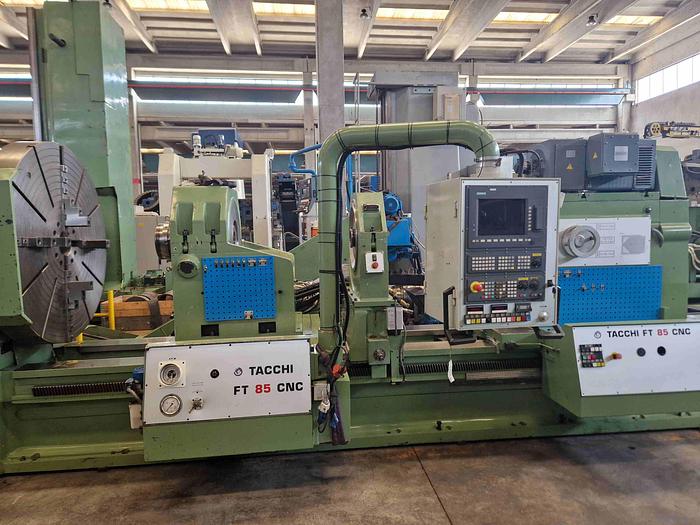

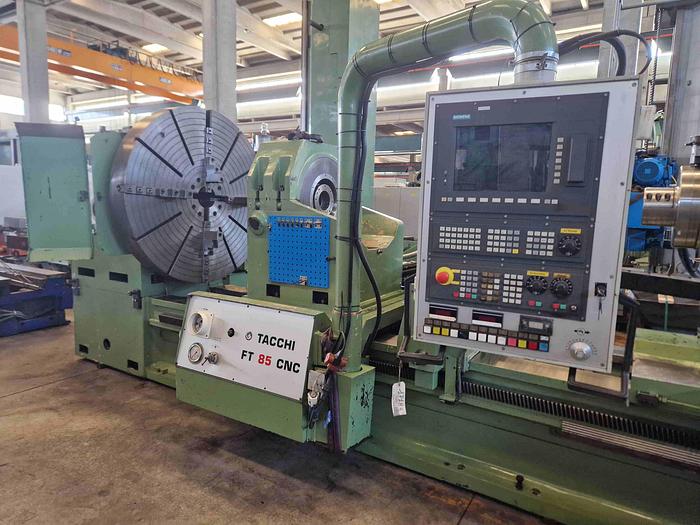

| Cnc | CNC SIEMENS 840 C |
Features and Accessories
Max. working capacity:
- from solid 20 ÷ 350 mm.
- coring 50 ÷ 550 mm.
- boring > 550 mm.

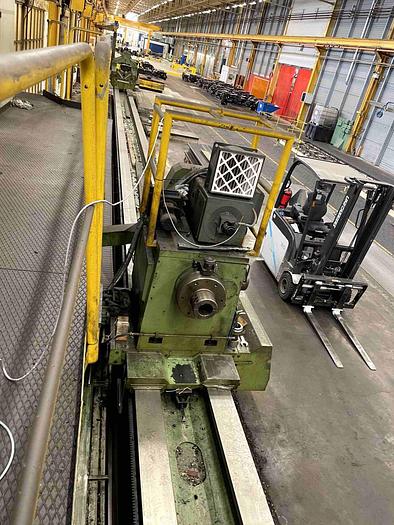

With rotating drilling head: speeds 7 ÷ 1.000 rpm.; Kw. 75
Complete with:
- four jaws table Ø 1.500 mm.

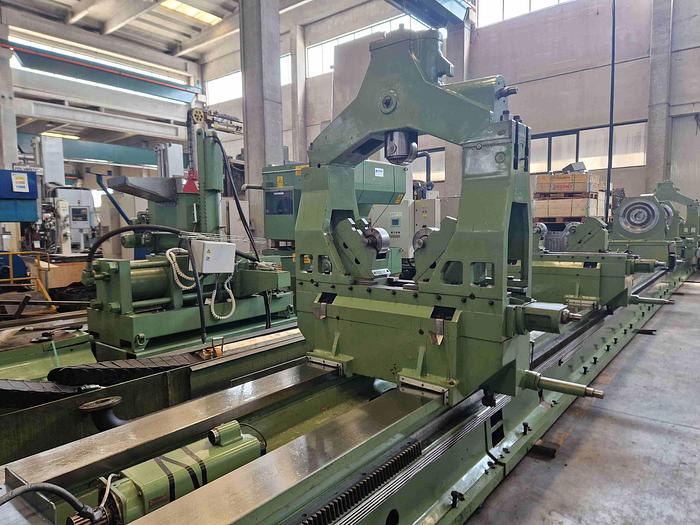

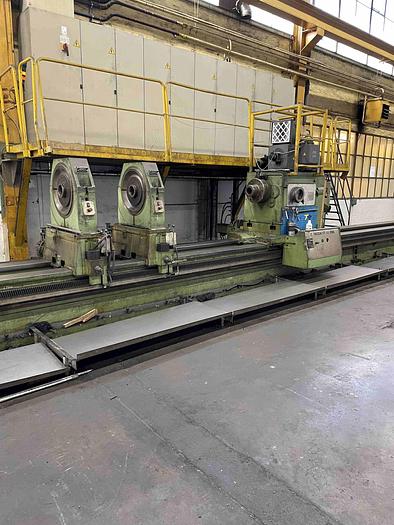

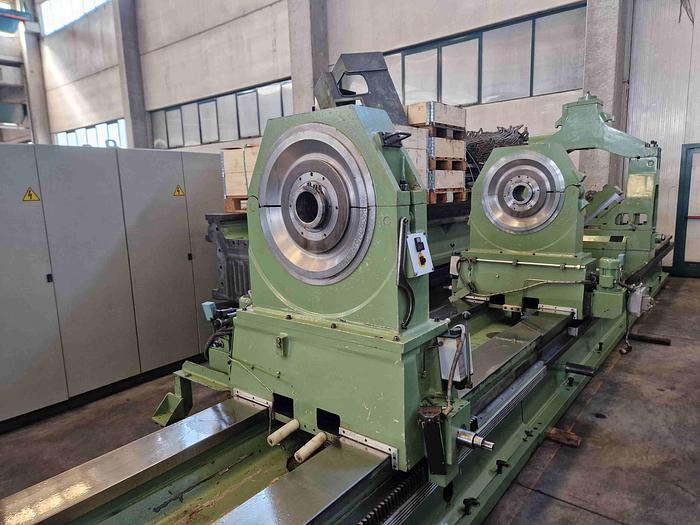

- n. 3 steadies
- n. 2 boring bar supports

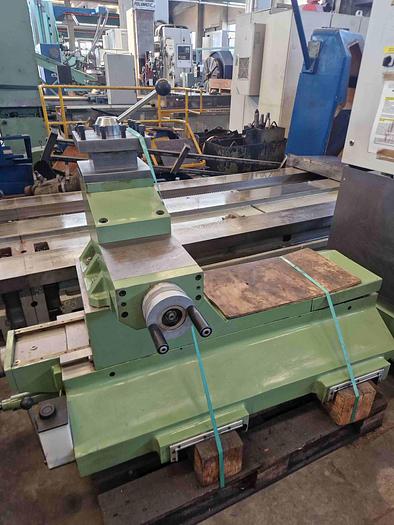

- facing saddle

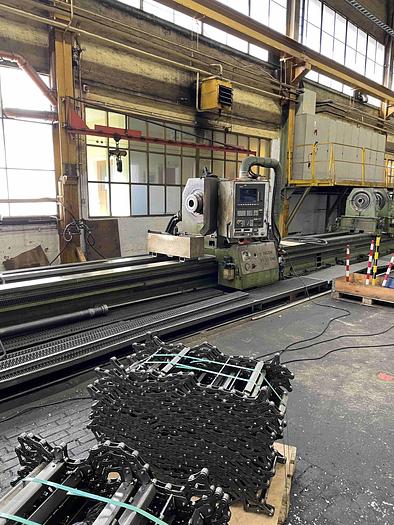

- chipconveyor

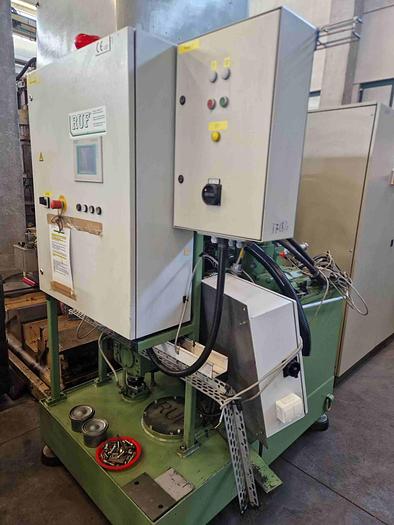

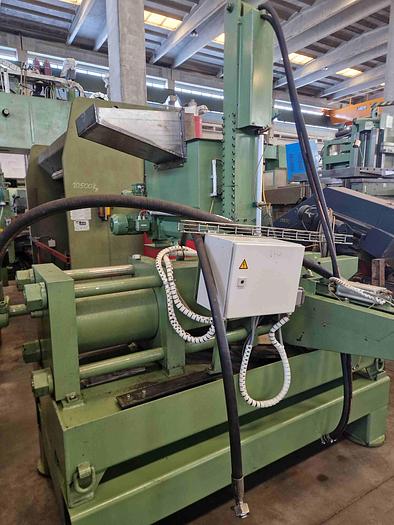

- chips compactor

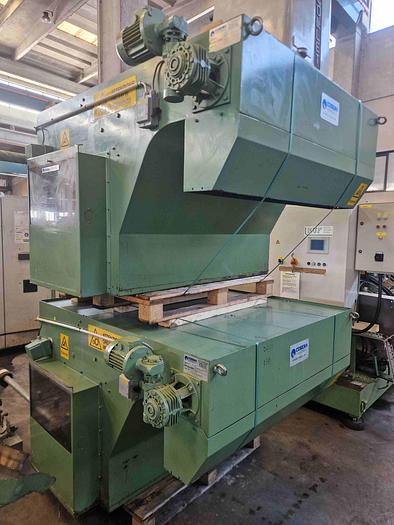

- filtering unit
