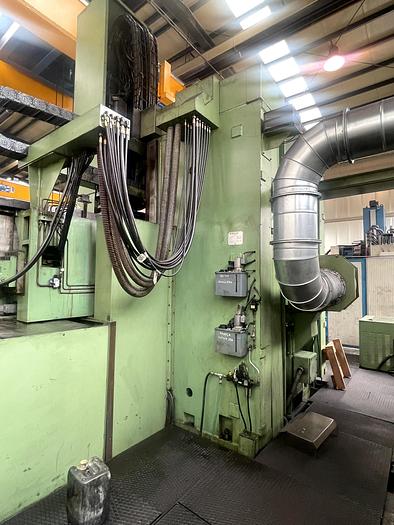

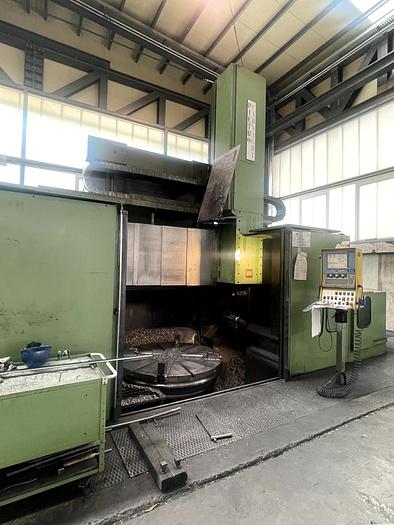

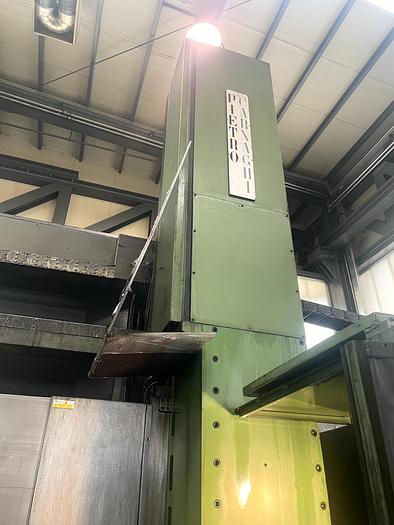

P. CARNAGHI AC 20 T/TM CNC VERTICAL BORER
No longer available
Featured
Technical specifications
| Manufacturer | P. CARNAGHI |
| Model | AC 20 TM CNC |
| Year | 1992 |
| Table Ø | 1.600 mm. |
| Max. working Ø | 2.000 mm. |
| Spindle power | 74 Kw. |
| Max. working height | 1.800 mm. |
| Max. weight on table | 15 Tons. |
| Table speeds | 1,75 ÷ 344,5 Rpm. |
| RAM type vertical tool travel | 1.250 mm. |
| RAM size | 250 x 250 mm. |
| Milling motor power | 23,2 Kw. |
| Milling speeds | 10 ÷ 2.000 Rpm. |

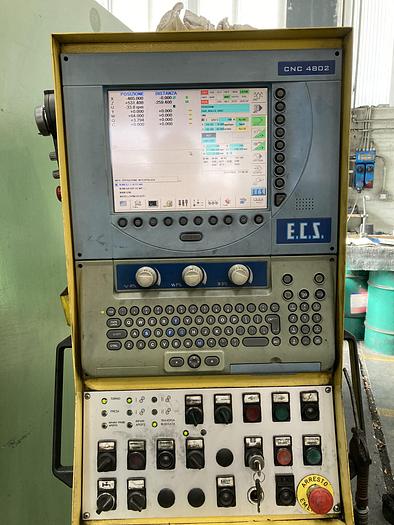

| Cnc | CNC ECS 4802 |
| Total weight | 45 Tons. |
Features and Accessories
Retrofitted in 2009.
Complete with:
- "c" axis for table positioning and live tools

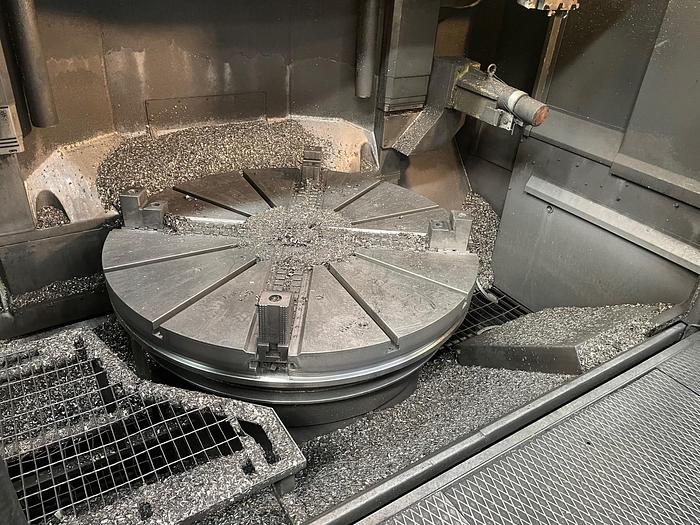

- self centering table Ø 1.600 mm.

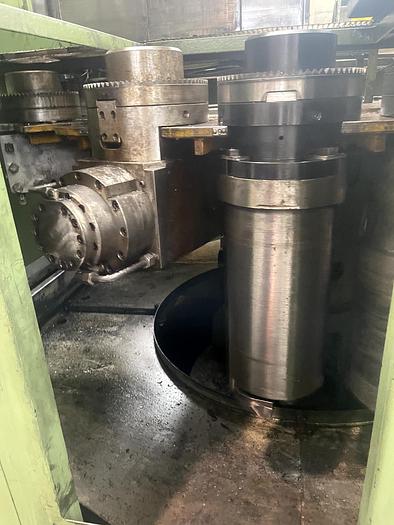

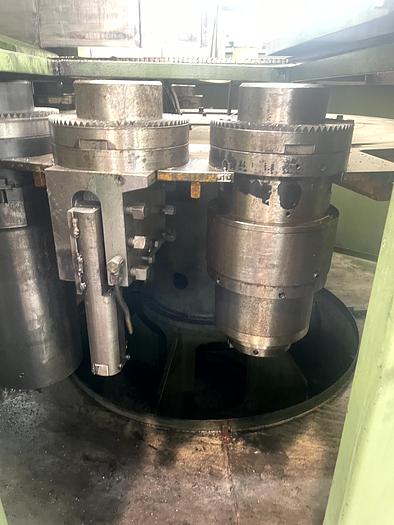

- n. 1 x 14 + 14 seats atc

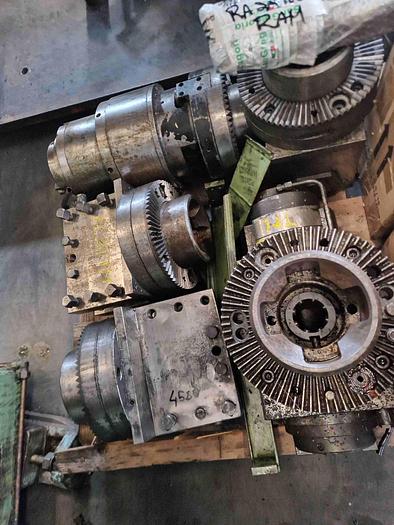

- n. 1 90° milling head
- n. 1 verticale milling head
- renishaw
- tool-holders and tooling
- full covered
