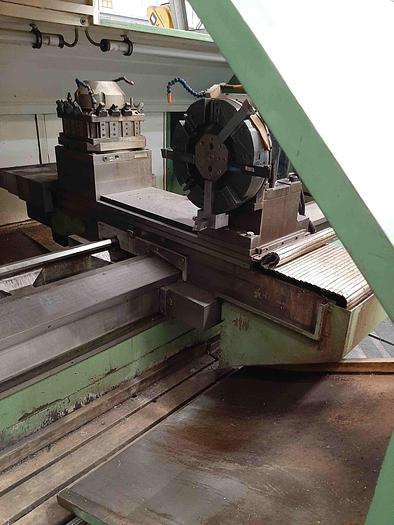

GRAZIANO SAG 24 CNC LATHE - 525x3000
No longer available
Technical specifications
| Manufacturer | GRAZIANO |
| Model | SAG 24 CNC |
| Centres height | 525 mm. |
| Centres distance | 3.000 mm. |
| Max. Ø over saddle | 700 mm. |
| Max. Ø over bed | 1.050 mm. |
| Max. Ø over the gap | 1.250 mm. |
| Gap lenght | 550 mm. |
| Bed width | 600 mm. |
| Spindle power | 36 Hp. |
| Spindle speeds | 70 ÷ 2.000 Rpm. |
| Spindle hole | 114 mm. |

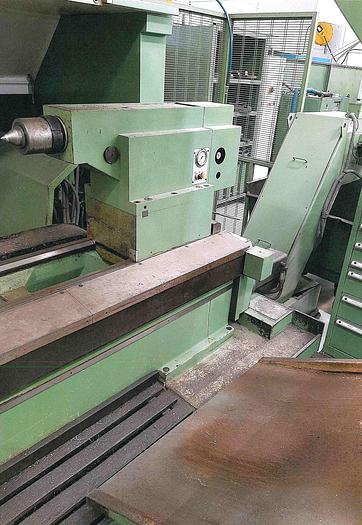

| Tailstock nose | 120 mm. |
| Tailstock nose travel | 170 mm. |
| Cnc | CNC Siemens 840 C |
| Total weight | 12.500 Kg. |
Features and Accessories
Complete with:
- n. 1 four jaws table Ø 500 mm.
- n. 1 three jaws self centering chuck Ø 400 mm.
- n. 1 automatic square turret
- n. 1 x 8 positions turret
- n. 1 closed steady
- chipconveyor
- full guard
