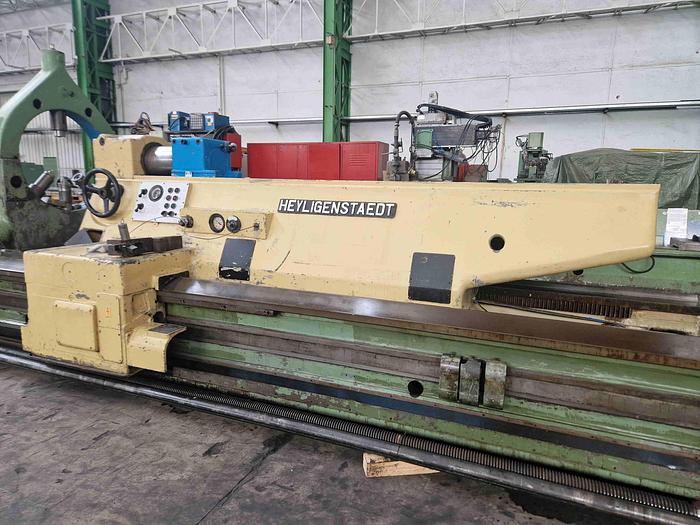

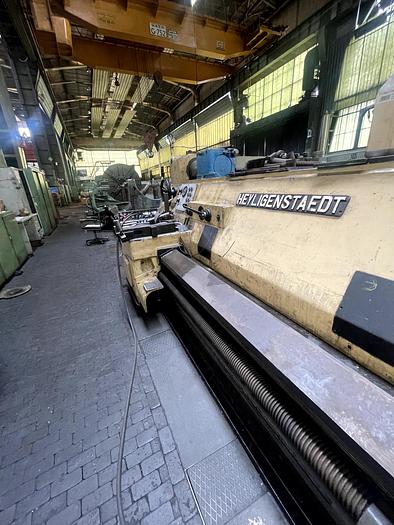

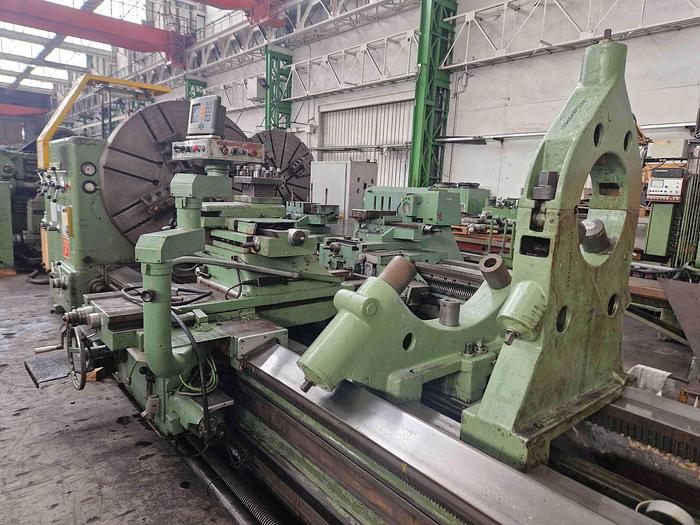

HEYLIGENSTAEDT 800 EN LATHE
No longer available
Featured
Technical specifications
| Manufacturer | HEYLIGENSTAEDT 800 E |
| Model | 800 EN |
| Centres height | 800 mm. |
| Centres distance | 7.000 mm. |
| Max. Ø over saddle | 1.250 mm. |
| Max. Ø over bed | 1.600 mm. |
| Bed width | 1.240 mm. |
| Max. weight between centers | 16 Tons. |
| Spindle power | 57 Hp. |
| Spindle speeds | N. 24; 0,9 - 180 Rpm. |
| Spindle hole | 180 mm. |
| Tailstock nose | 250 mm. |
| Total weight | 45 Tons. |
Features and Accessories
Complete with:

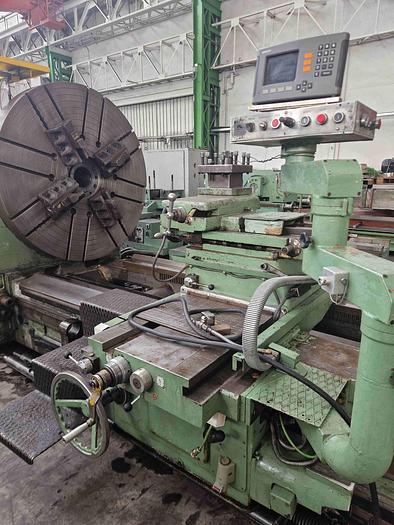

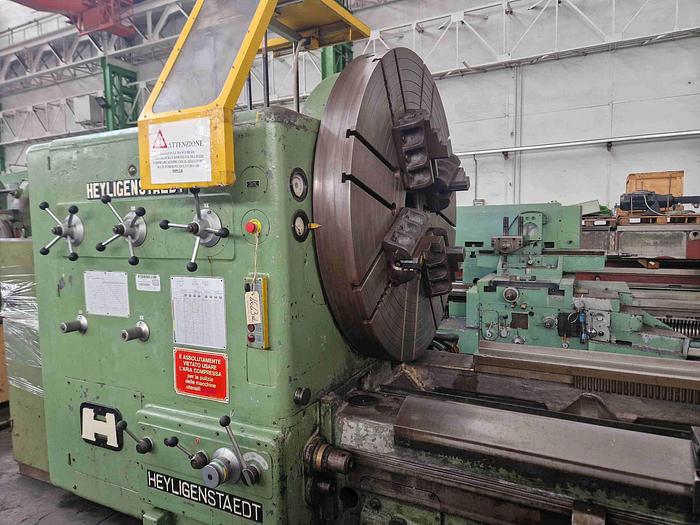

- n. 1 four jaws table Ø 1.600 mm.

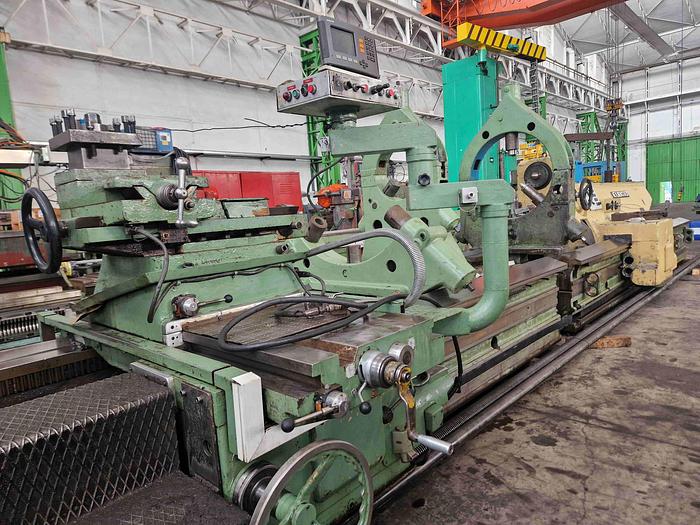

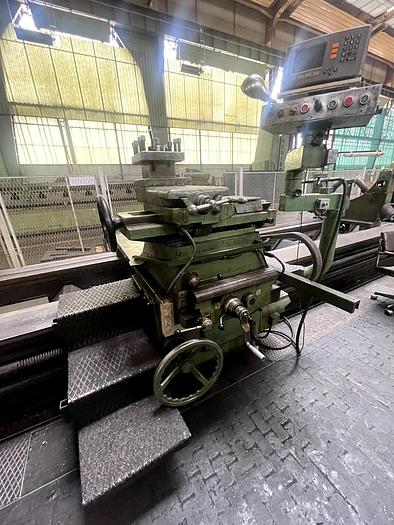

- d.r.o. - 3 axis

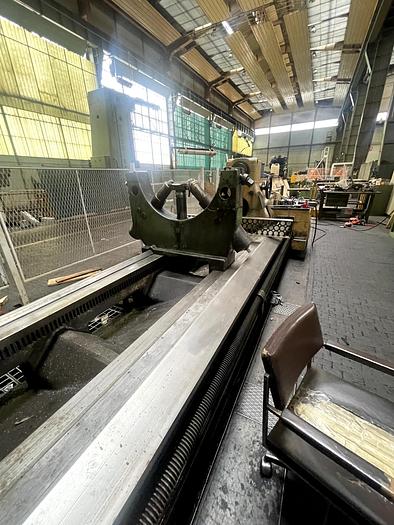

- tailstock with deep holes boring capacity: max. L= 3.000 mm. x Ø 510 ÷ 780 mm.

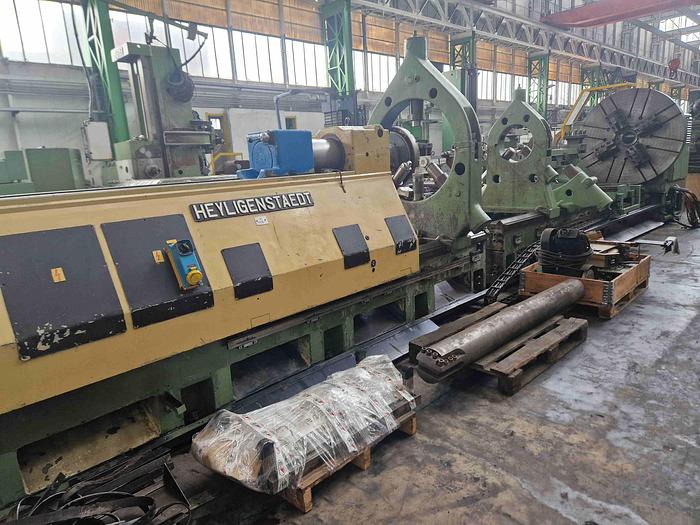

- n. 2 closed steadies
- n. 1 open steady
- grinding attachment
