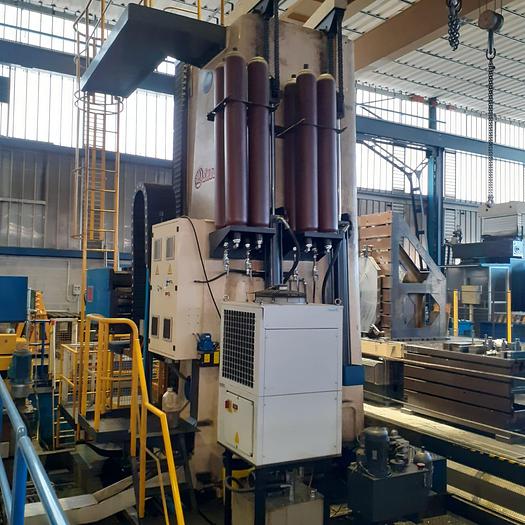

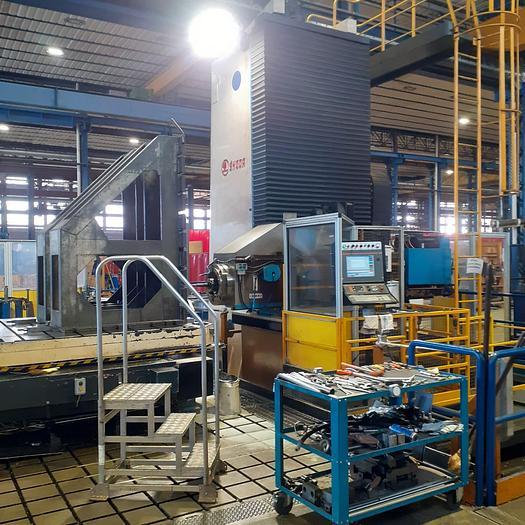

SKODA W 160 H CNC FLOOR TYPE BORER
Technical specifications
Manufacturer | SKODA |
Model | W 160 H CNC |
Spindle | 160 mm. |
Tranversal travel | 4.000 mm. |
Vertical travel | 2.900 mm. |
RAM travel | 880 mm. |
Spindle travel | 800 mm. |
Spindle taper | ISO 50 |
Spindle motor power | 51 kw. |
Spindle speeds | 1 ÷ 1.500 Rpm. |
RAM section | 600 x 575 |

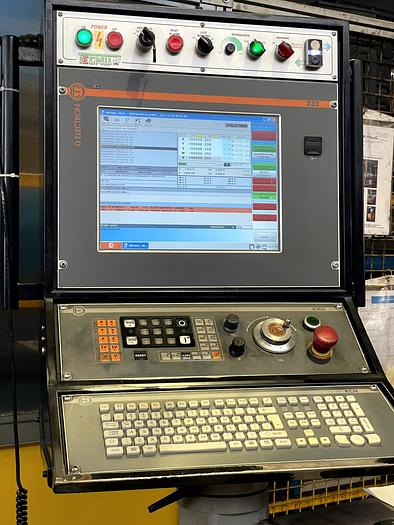

Cnc | CNC D. ELECTRON Z 32 |
Total weight | 62 Tons. |
Features and Accessories
Retrofitted in 2010.
Complete with:

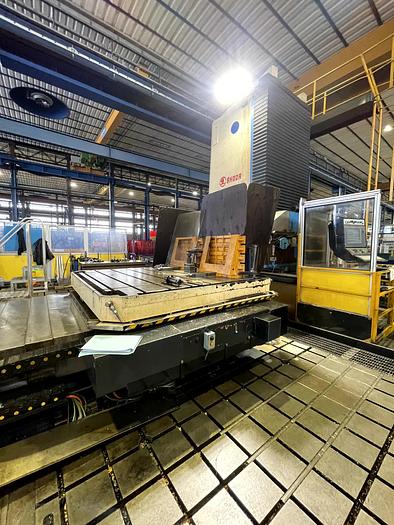

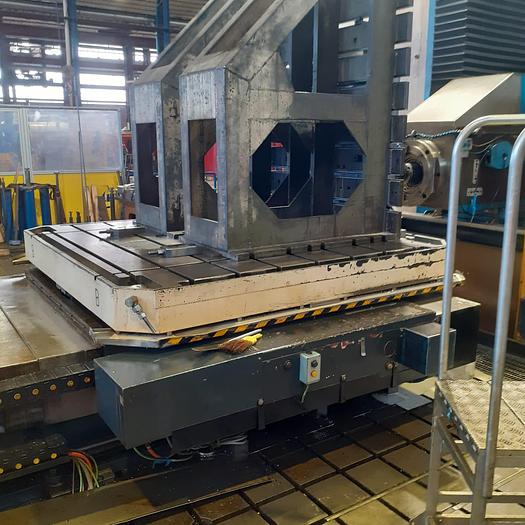

- TOS ISO 12 CNC rotary table: 2.200 x 2.200 mm.; capacity 12 tons.; travel (V) 1.500 mm.; weight 11 tons.

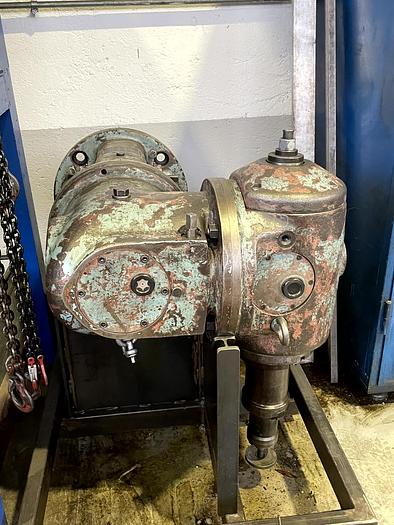

- birotative milling head
- boring support
- n. 1 floor plate 6.000 x 2.000 x 400 h mm. - 12.000 kg.
- chipconveyor
