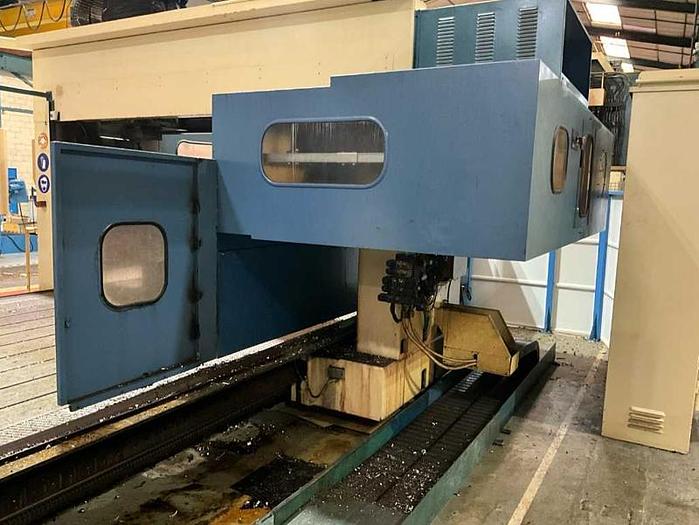

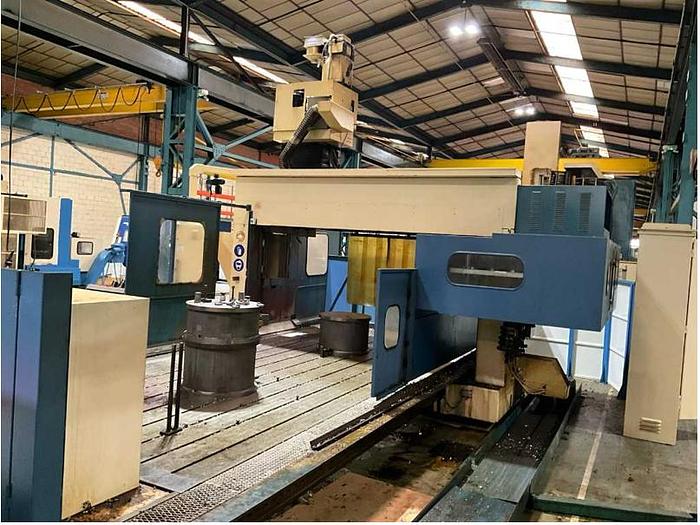

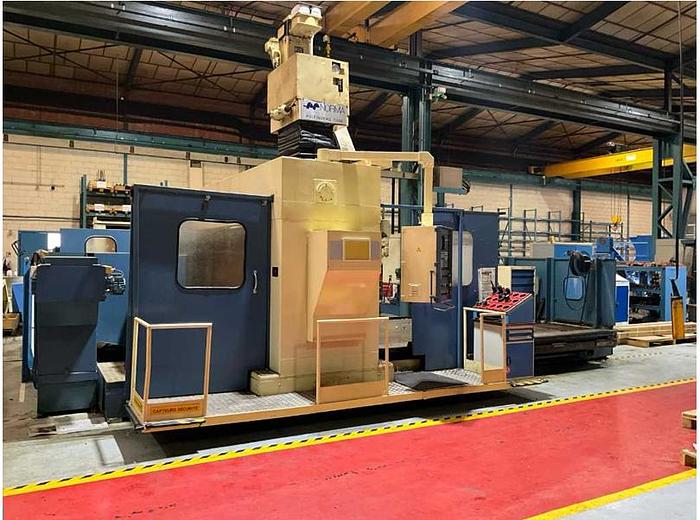

NORMA MULTINORMA 5000 23.50 GANTRY TYPE MILLING MACHINE
No longer available
Technical specifications
| Manufacturer | NORMA |
| Model | MULTINORMA 5000 23.50 CNC |
| Year | 1990 |

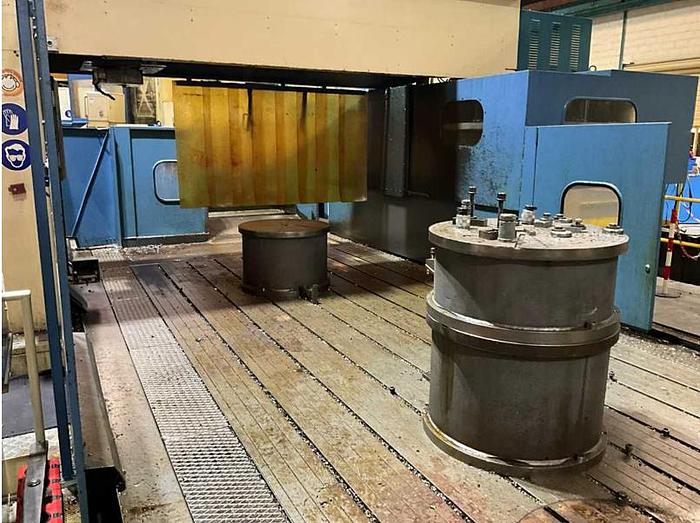

| Table | 5.100 x 2.100 mm. |
| Passage between columns | 3.100 mm. |
| Max. working height | 1.400 mm. |
| Portal travel | 5.000 mm. |
| Transversal head travel | 2.300 mm. |
| Vertical head travel | 500 mm. |
| Spindle power | 26 Kw. |
| Spindle speeds | 0 ÷ 2.000 Rpm. |
| Spindle taper | ISO 50 |
| N. milling heads | 1 |

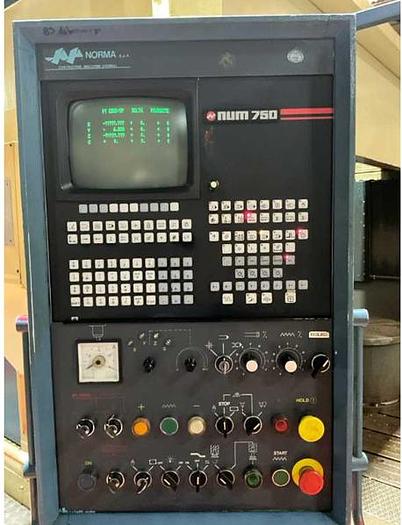

| Cnc | CNC NUM 750 |
| Total weight | 40 Tons. |
Features and Accessories
Complete with:
- 35 seats atc

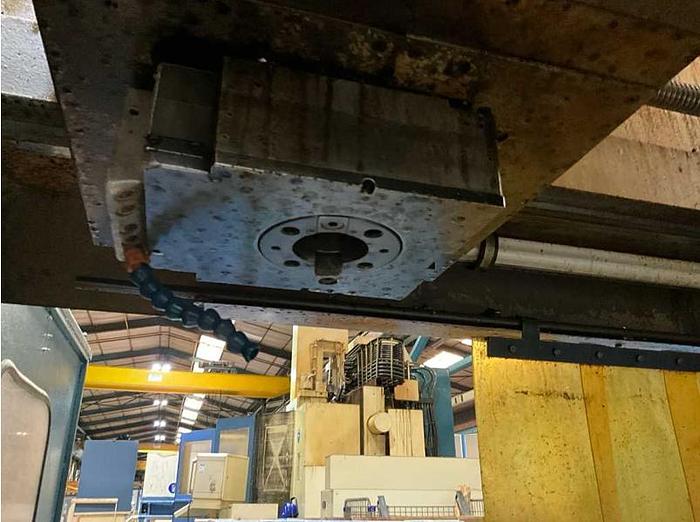

- n. 1 x four positions square milling head

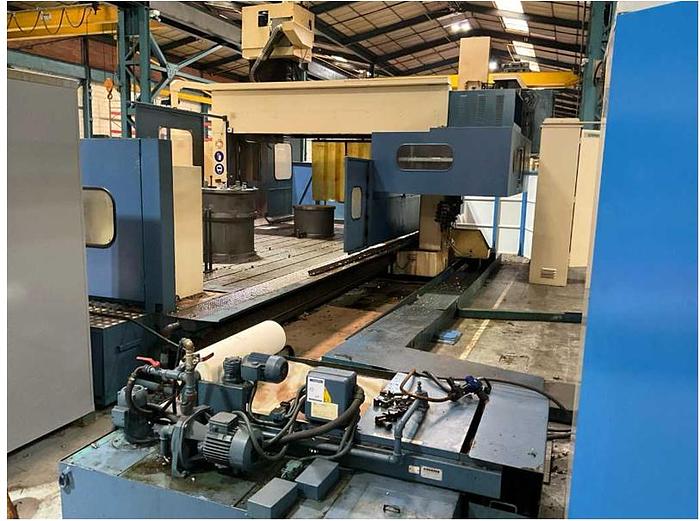

- watertank with filter
- chipconveyor
- tool-holders and tooling
- spare parts
