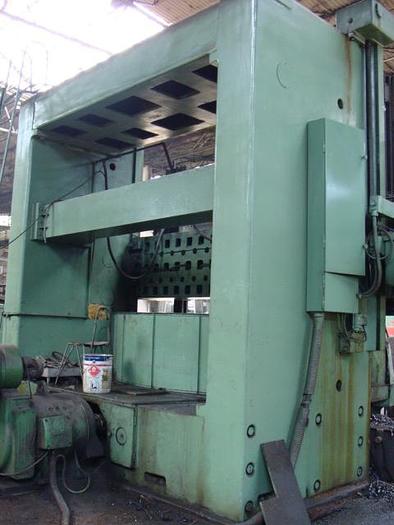

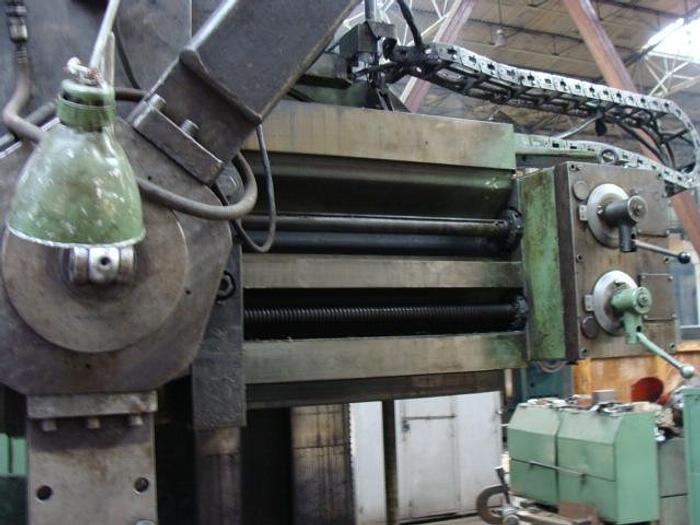

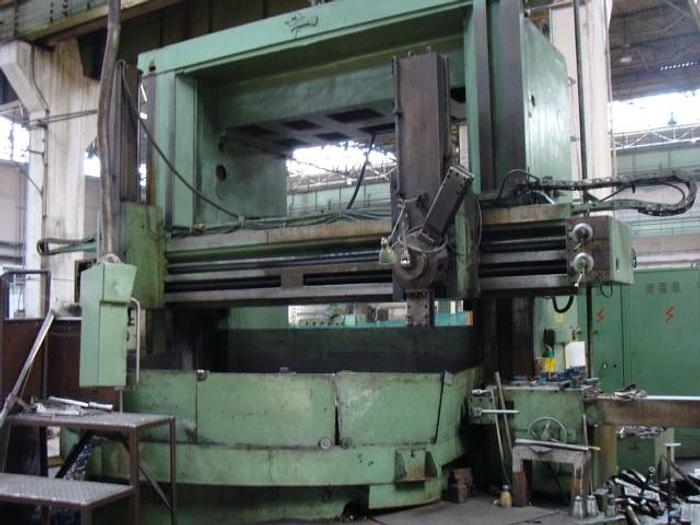

TITAN SC 33 VERTICAL BORER
No longer available
Technical specifications
| Manufacturer | TITAN |
| Model | SC 33 |

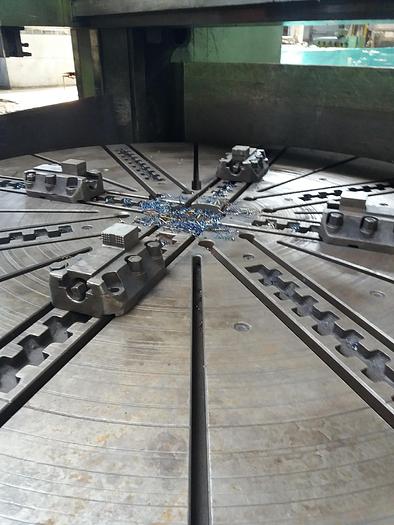

| Table Ø | 3.000 mm. |
| Max. working Ø | 3.300 mm. |
| Spindle power | 55 Kw. |
| Max. working height | 2.300 mm. |
| Max. weight on table | 18.000 kg. |
| Table speeds | 1,02 ÷ 92 Rpm. |
| RAM type vertical tool travel | 1.200 mm. |
| Turret type vertical tool travel | 760 mm. |
| Max. swivelling angle | 35° |
| Total weight | 48 Tons. |
Features and Accessories
Complete with:
- n. 1 ram type vertical tool
- n. 1 five positions turret vertical tool
- n. 1 side side tool
