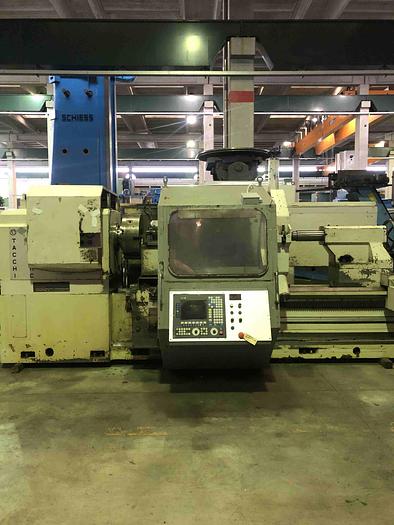

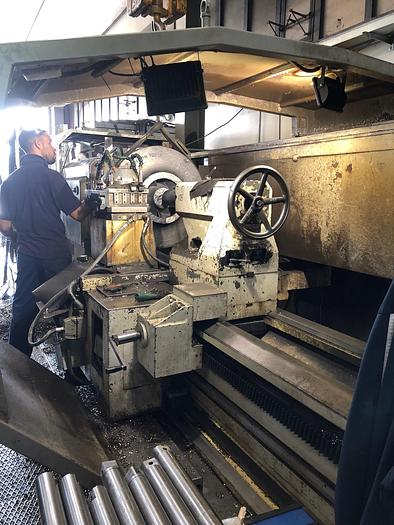

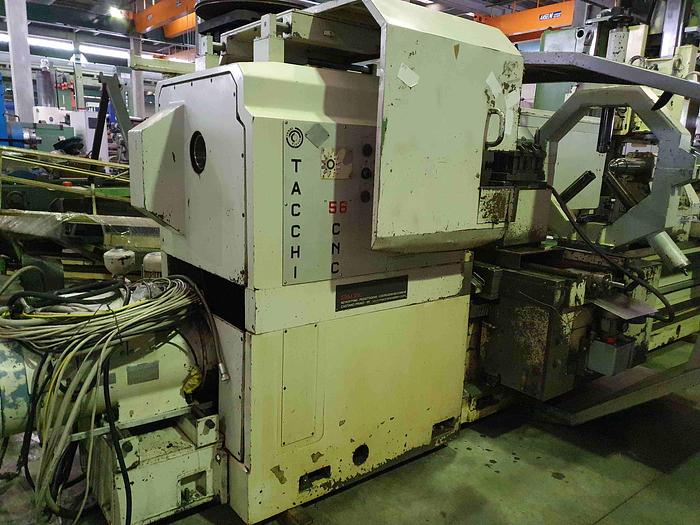

TACCHI FTC 56 x 2000 CNC LATHE
No longer available
Technical specifications
| Manufacturer | TACCHI |
| Model | FTC 56 CNC |
| Year | 1982 |
| Centres height | 575 mm. |
| Centres distance | 2.000 mm. |
| Max. Ø over saddle | 850 mm. |
| Max. Ø over bed | 2.000 mm. |
| Bed width | 570 mm. |
| Max. weight between centers | 8.000 Kg. |
| Spindle power | 22,5 Kw. |
| Spindle speeds | 3,7 ÷ 1.000 Rpm. |
| Spindle hole | 105 mm. |

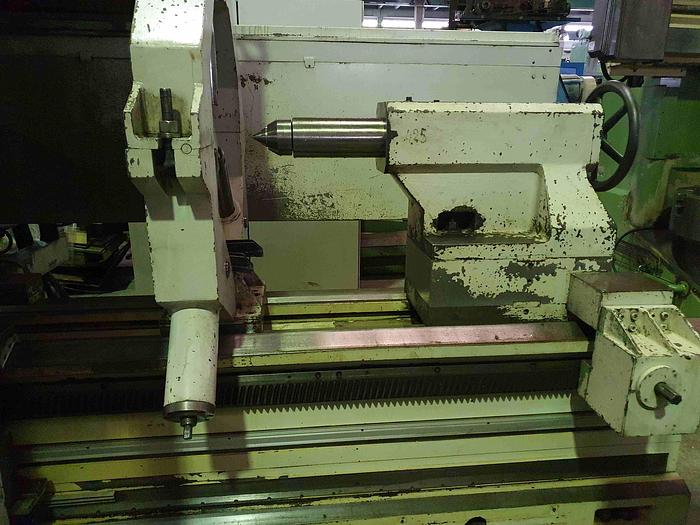

| Tailstock nose | 120 mm. |
| Tailstock nose travel | 350 mm. |
| Cnc | CNC Fagor 8055 TC |
Features and Accessories
Retroffited in 2012.
Complete with:
- n. 1 four jaws table Ø 800 mm.
- n. 1 self centering chuck Ø 500 mm.

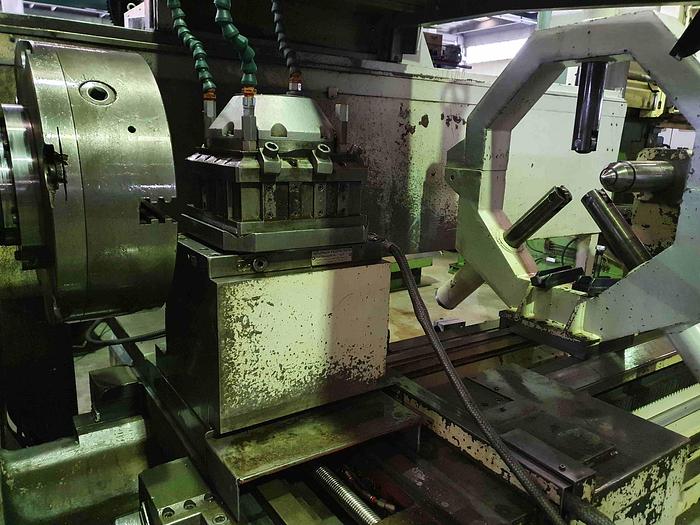

- n. 1 automatic square turret
- n. 1 closed steady
- chipconveyor
- full covered
