GIANA GFS 12 CNC MOVING BED TYPE LATHE
Technical specifications
| Manufacturer | GIANA |
| Model | GFS 12 CNC |
| Year | 1998 |
| Stock Number | GFS-12-CNC |
| Centres height | 610 mm. |
| Centres distance | 4.500 / 6.000 mm. |
| Max. Ø over saddle | 820 mm. |
| Max. Ø over bed | 1.220 mm. |
| Max. Ø over the gap | 1.800 mm. |
| Bed width | 640 mm. |
| Max. weight between centers | 10 Tons. |
| Spindle power | 37 Kw. |
| Spindle speeds | 3,5 ÷ 1.000 Rpm. |
| Spindle hole | 120 mm. |
| Cnc | CNC SIEMENS 840 D |
Features and Accessories
Complete with:

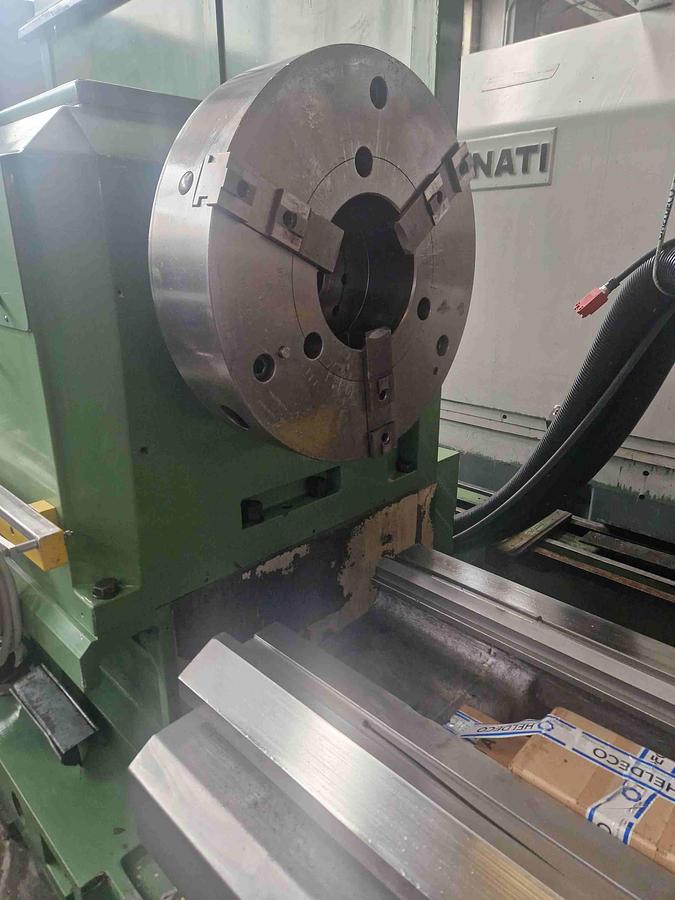

- n. 1 self centering chuck Ø 630 mm.
- n. 1 automatic square turret
- n. 1 closed steady
- double chipconveyor
- full-covered
